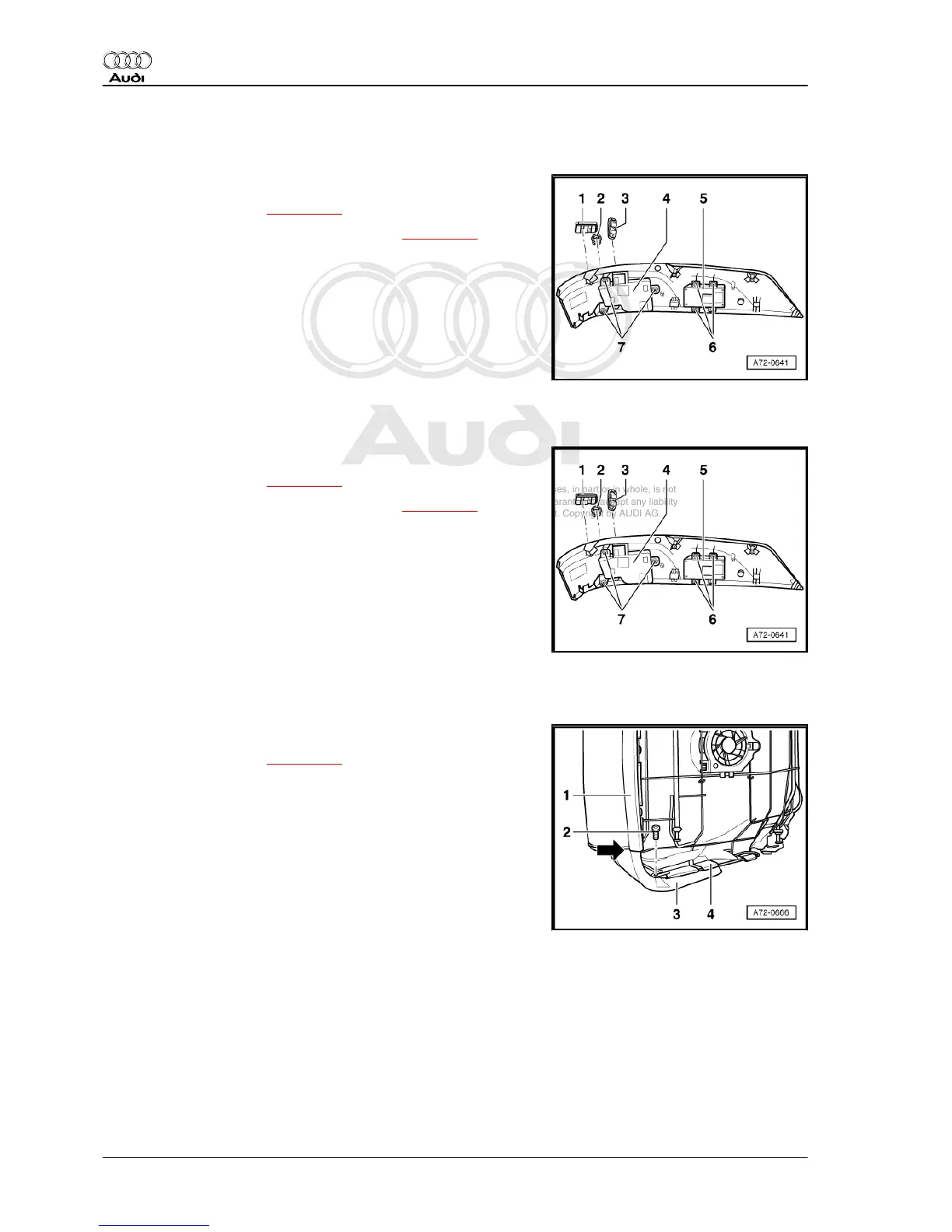

3.14 Removing and installing lumbar support
adjustment switch
♦ Removing
– Remove the seat pan ⇒ page 342 .
– Remove the side trim on the sill panel side ⇒ page 349 .
– Unscrew the bolts -6- (4x). 1 Nm.
– Detach the lumbar support adjustment switch -5-.
♦ Installing
– Install the lumbar support adjustment switch in the reverse or‐
der of removal.
3.15 Removing and installing seat adjust‐
ment switch
♦ Removing
– Remove the seat pan ⇒ page 342 .
– Remove the side trim on the sill panel side ⇒ page 349 .
– Detach the switch controls -1- and -3- and the trim plate -2-.
– Unscrew the bolts -7- (3x). 1 Nm.
– Detach the seat adjustment switch -4-.
♦ Installing
– Install the seat adjustment switch in the reverse order of re‐
moval.
3.16 Removing and installing side trim on
tunnel side
♦ Removing
– Remove the seat pan ⇒ page 342 .
– Disengage the front trim -1- at the location marked with an
arrow from the side trim on the tunnel side -3-.
– Unscrew the bolt -2-. 2.5 Nm.
– Prise out the fastening strip -4-.
– Pull off the side trim on the tunnel side -3- to the rear.
♦ Installing
– Install the side trim on the tunnel side -3- in the reverse order
of removal.
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
350 Rep. gr.72 - Seat frames
