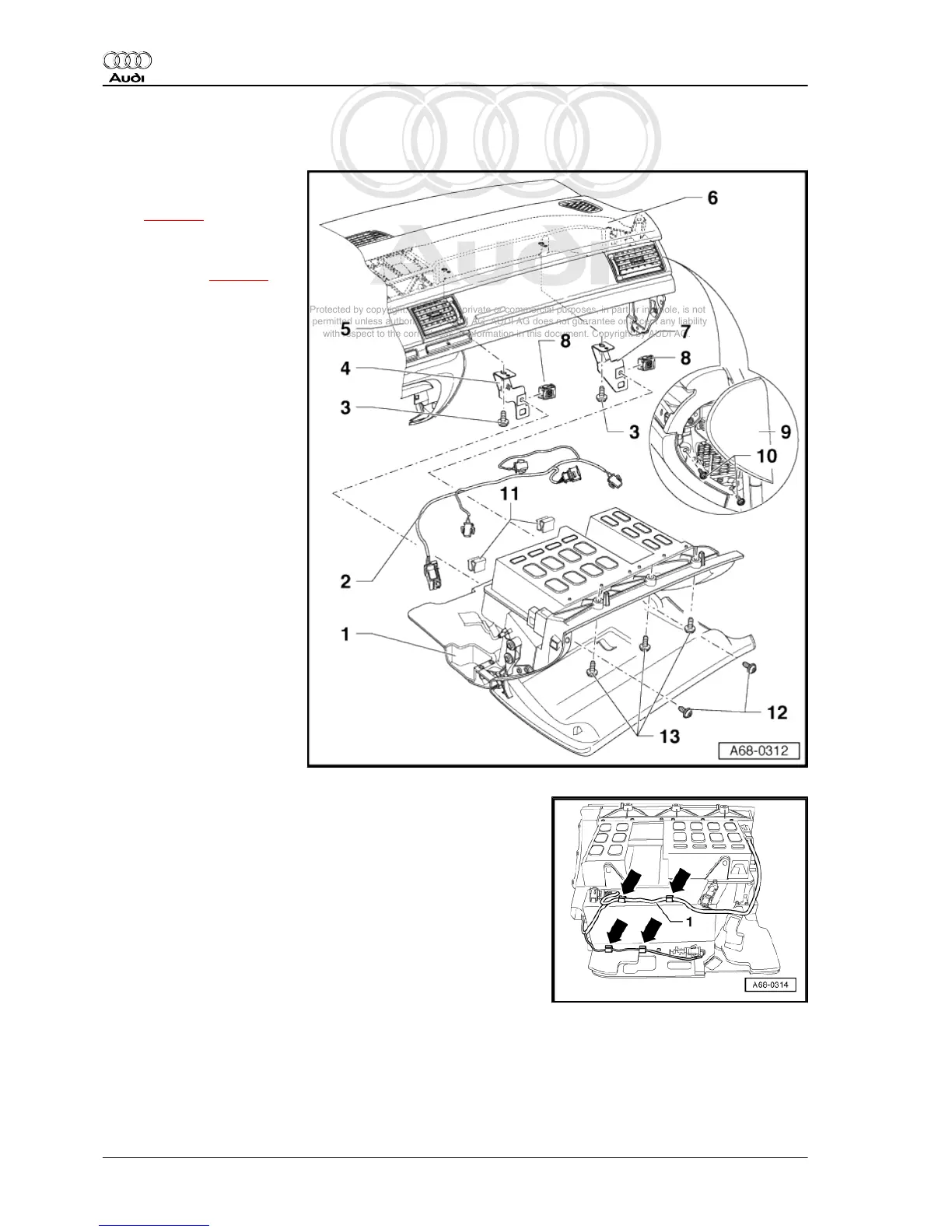

1.1 Exploded view of glove box/knee bolster
1 - Glove box/knee bolster
❑ Removing and installing
⇒ page 5
2 - Wiring harness for glove
box
❑ Attaching ⇒ page 4
3 - Bolts (2x), 4 Nm
4 - Support (left-side)
5 - Dash panel
6 - Central tube
7 - Support (right-side)
8 - Speed nut (2x)
9 - Dash panel end trim (right-
side)
10 - Bolts (2x), 4 Nm
11 - Clips (4x)
12 - Bolts (2x), 4 Nm
13 - Bolts (3x), 4 Nm
Securing wiring harness for glove box
Wiring harness -1- for glove box is secured with clips -arrows-.
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
4 Rep. gr.68 - Interior equipment
