– Press the cable of the connector -7- into the clip -9-.
– Screw on the guide fitting -1- with the bolt -2-. The guide fitting must settle automatically in usage direction.
– Continue installing the three-point seat belt in the reverse order of removal.
– Make sure the three-point seat belt is not impeded by cables, wires, insulation, etc.
WARNING
There must not be any‐
one in the vehicle when
connecting the battery.
– With the ignition switched on, connect the battery earth wire ⇒ Electrical system; Rep. gr. 27 .
7 - Connector
8 - Bolt
❑ Tightening torque 55 Nm.
9 - Clip
2.4 Removing and installing belt height ad‐
juster
♦ Removing
– Remove the lower B-pillar trim ⇒ page 256 .
– Remove the upper B-pillar trim ⇒ page 254 .
– Remove the three-point seat belt ⇒ page 107 and
⇒ page 176 .

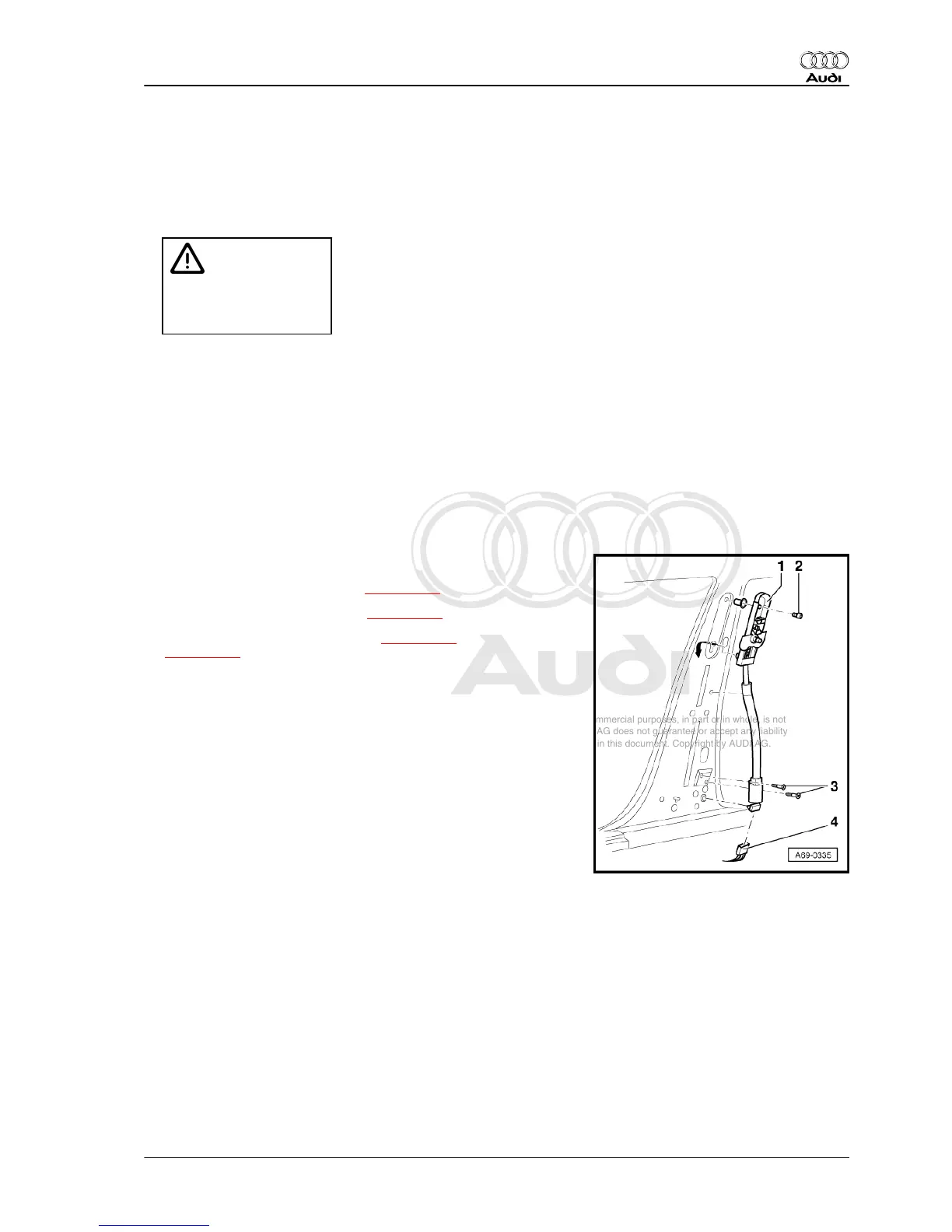

– Unplug the connector -4-.
– Unscrew the bolts -3- (2x).
– Unscrew the bolt -2-.
– Lift out the belt height adjuster -1-.
♦ Installing
– Install the belt height adjuster -1- in the reverse order of re‐
moval.
2.5 Removing and installing rear three-point
seat belt
Special tools and workshop equipment required
Audi A8 2003 ➤
