6 - Rear right centre console temperature sensor -G312-
❑ Removing and installing ⇒ Rep. gr. 87
7 - Rear left centre console temperature sensor -G311-
❑ Removing and installing ⇒ Rep. gr. 87
8 - Bolts (2x), 2 Nm
9 - Bolts (2x), 2 Nm
10 - Rear air duct (left-side)
Removing
– Remove extension for centre console ⇒ page 59 .
– Remove centre console for extension ⇒ page 51 .
– Unscrew bolts -8- (2x).
– Pull rear left air duct out of centre console air distributor -3-.
Installing
Install in reverse order of removal.
11 - Rear air duct (right-side)
Removing
– Remove extension for centre console ⇒ page 59 .
– Remove centre console for extension ⇒ page 51 .
– Unscrew bolts -9- (2x).
– Pull rear right air duct out of centre console air distributor -3-.
Installing
Install in reverse order of removal.
3.16 Removing and installing intermediate
piece for air duct

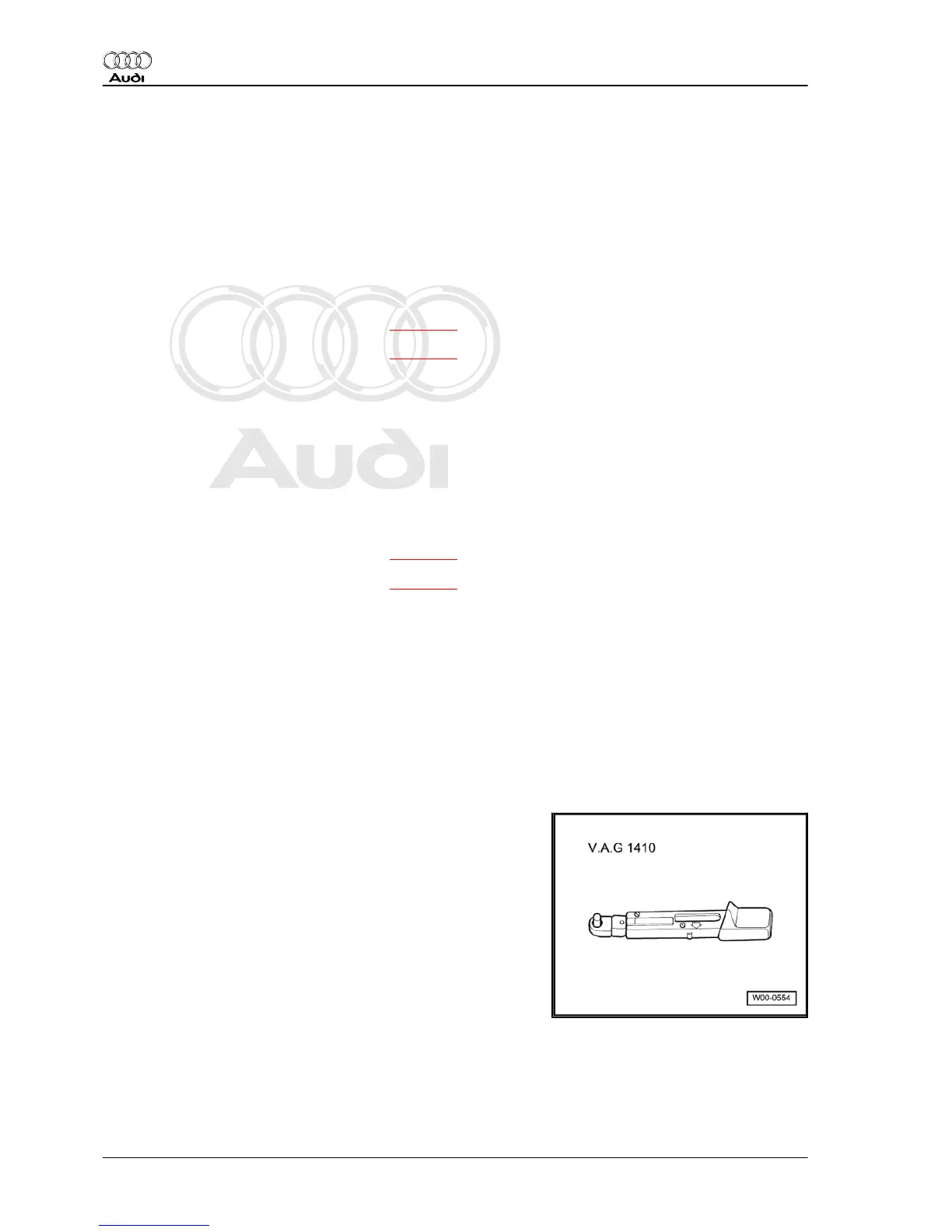

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1410-
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
70 Rep. gr.68 - Interior equipment
