Audi A8 2003 - Removing and Installing Split Centre Armrest Storage Compartment; Removing and Installing Lower Cover Panel for Centre Armrest (Split)

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.

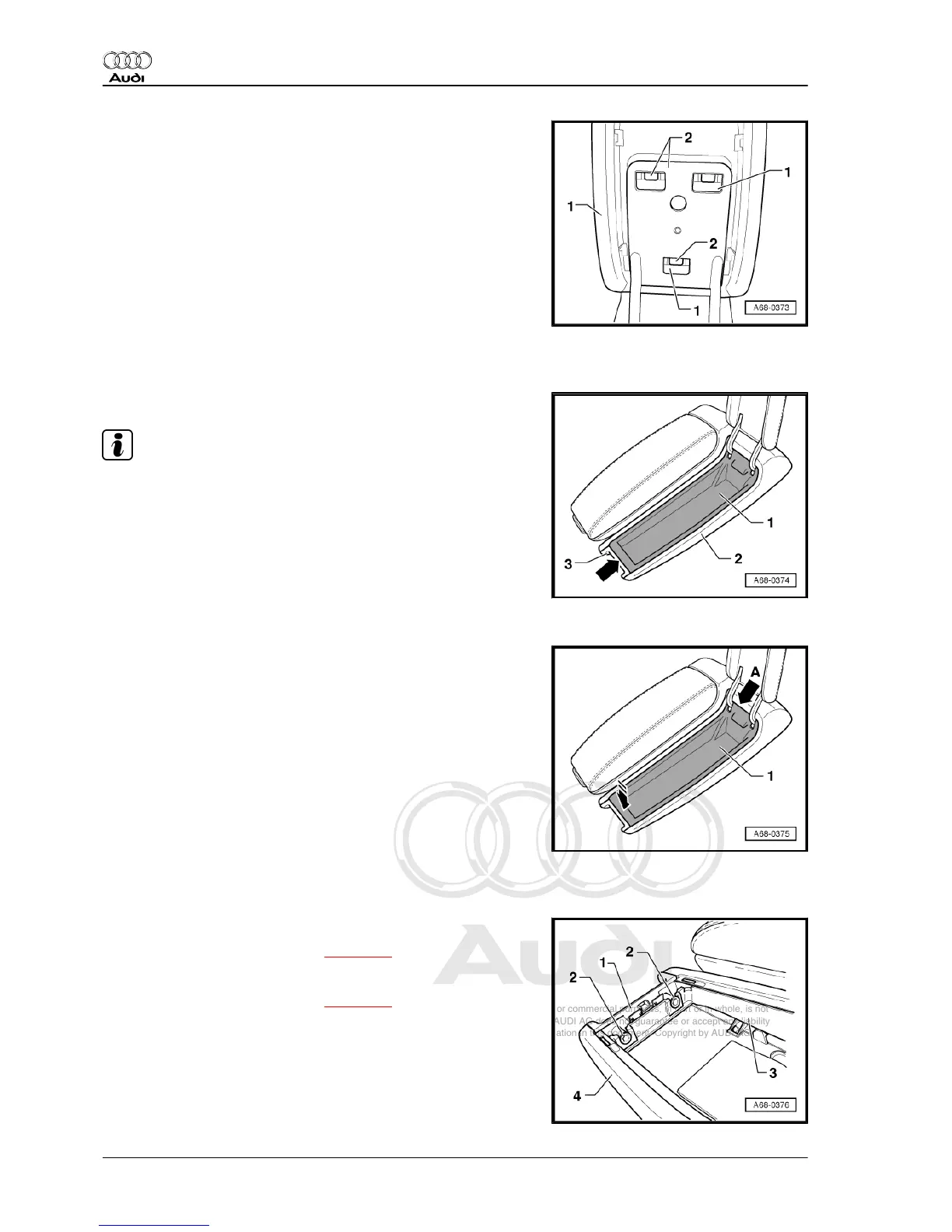

– After disengaging tabs of carrier -2- detach padding -1-.
Installing
Installation is carried out in reverse order; note the following:
– Make sure carrier and padding fully engage.
5.6 Removing and installing split centre
armrest storage compartment
Removing
Note
Storage compartment can be removed and installed with armrest
in position.
– Open centre armrest.
– Starting at front -arrow-, carefully prise storage compartment
-1- off trim -2- and lower cover panel -3-.
– Pull out storage compartment -1- towards front.
– Unclip light.
Installing
– Clip in light.
– Engage storage compartment -1- at rear in area of arms
-arrow A-.
– Press storage compartment -1- to rear and at the same time
engage it by pressing in direction of arrow.
5.7 Removing and installing lower cover
panel for centre armrest (split)
Removing
– Remove centre armrest (split) ⇒ page 84 .
– Open centre armrest.
– Remove storage compartment ⇒ page 88 .
– Unscrew bolts -2- (2x).
1 - Cover (bottom)
3 - Carrier with adjuster
4 - Trim
