Audi A8 2003 - Removing and Installing Seat Cushion Extension Motor

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.

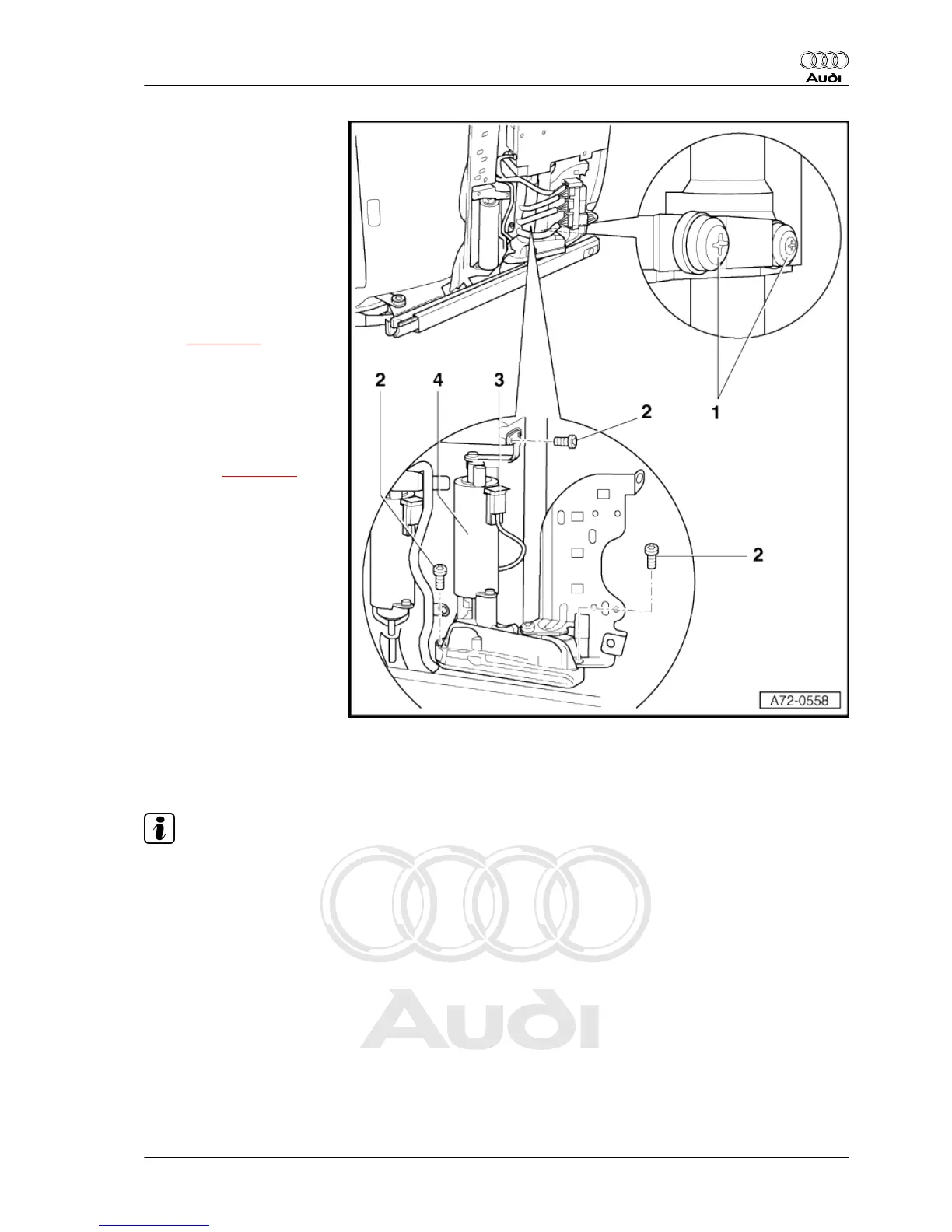

1 - Bolts (2x)
❑ Tightening torque 5 Nm
2 - Bolts (3x)
❑ Tightening torque 10
Nm
3 - Connector
4 - Seat angle adjustment mo‐
tor
♦ Removing
– Remove the seat
⇒ page 282 .
– Attach the holder for
seat repair -VAS 6136-
to the engine and gear‐
box holder -VAS 6095- .
– Attach the front seat to
the holder for seat repair
-VAS 6136- .
– Remove the connector
point ⇒ page 296 .
– Unplug the connector
-3-.
– Unscrew the bolts -2-
(3x).
– Unscrew the bolts -1-
(2x).
– Take out the seat angle
adjustment motor -4-.
♦ Installing
– Install in reverse order.
1.24 Removing and installing seat cushion
extension motor
Note
If the motor is defective, the seat pan -3- must be replaced.
