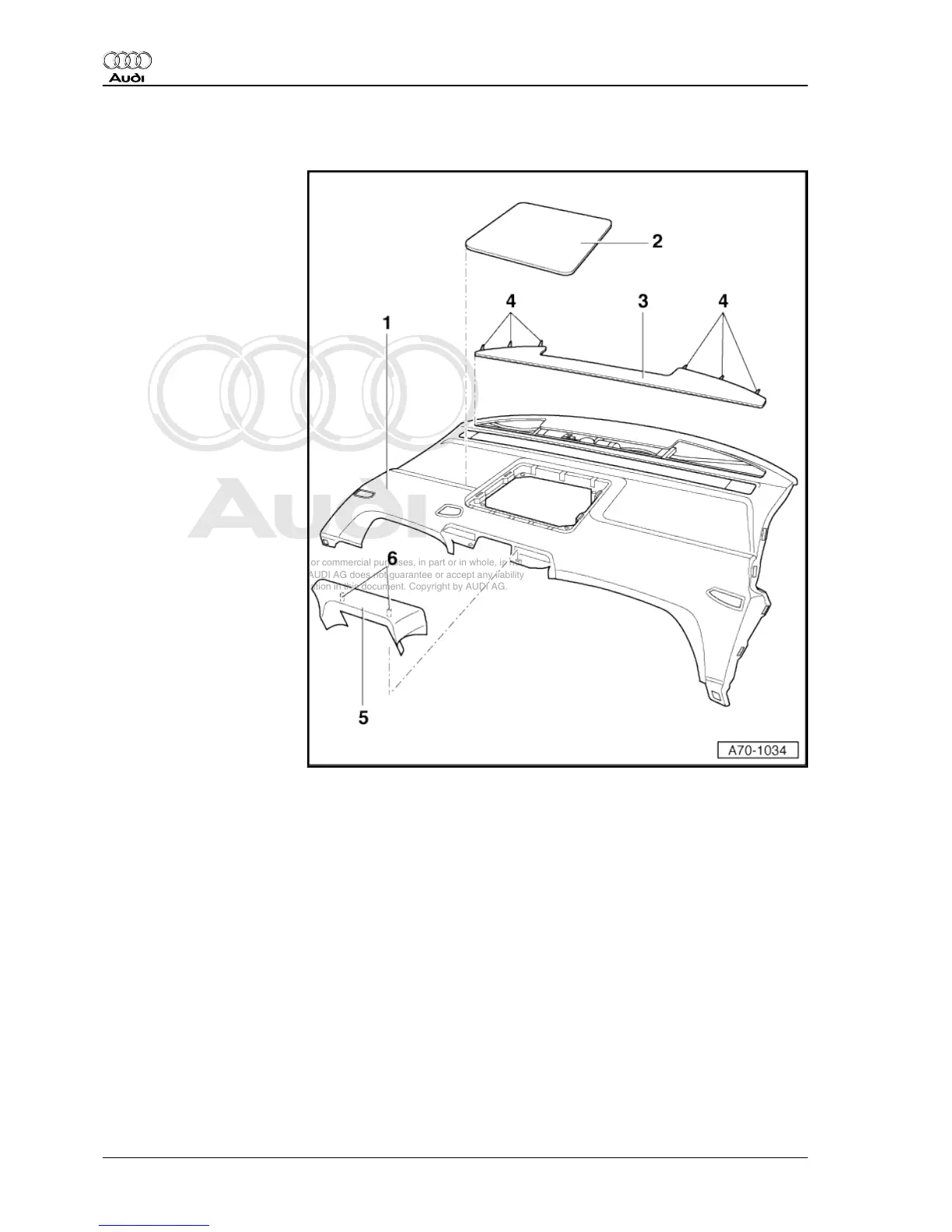

6.16 Removing and installing rear shelf replacement parts
1 - Rear shelf
2 - Loudspeaker panel
♦ Removing
– Prise out the loudspeak‐
er panel -2- upwards.
3 - Vent panel with third brake
light
♦ Removing
– Unfasten the vent pan‐
el -3- upwards from the
clips -4- (6x) and pull out
the vent panel -3- in‐
wards.
4 - Clips (6x)
5 - Cover
♦ Removing
– Unfasten the cover -5-
at the clips -6- (2x) and
pull out the cover -5- in‐
wards.
6 - Clips (2x)
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
266 Rep. gr.70 - Trim, insulation
