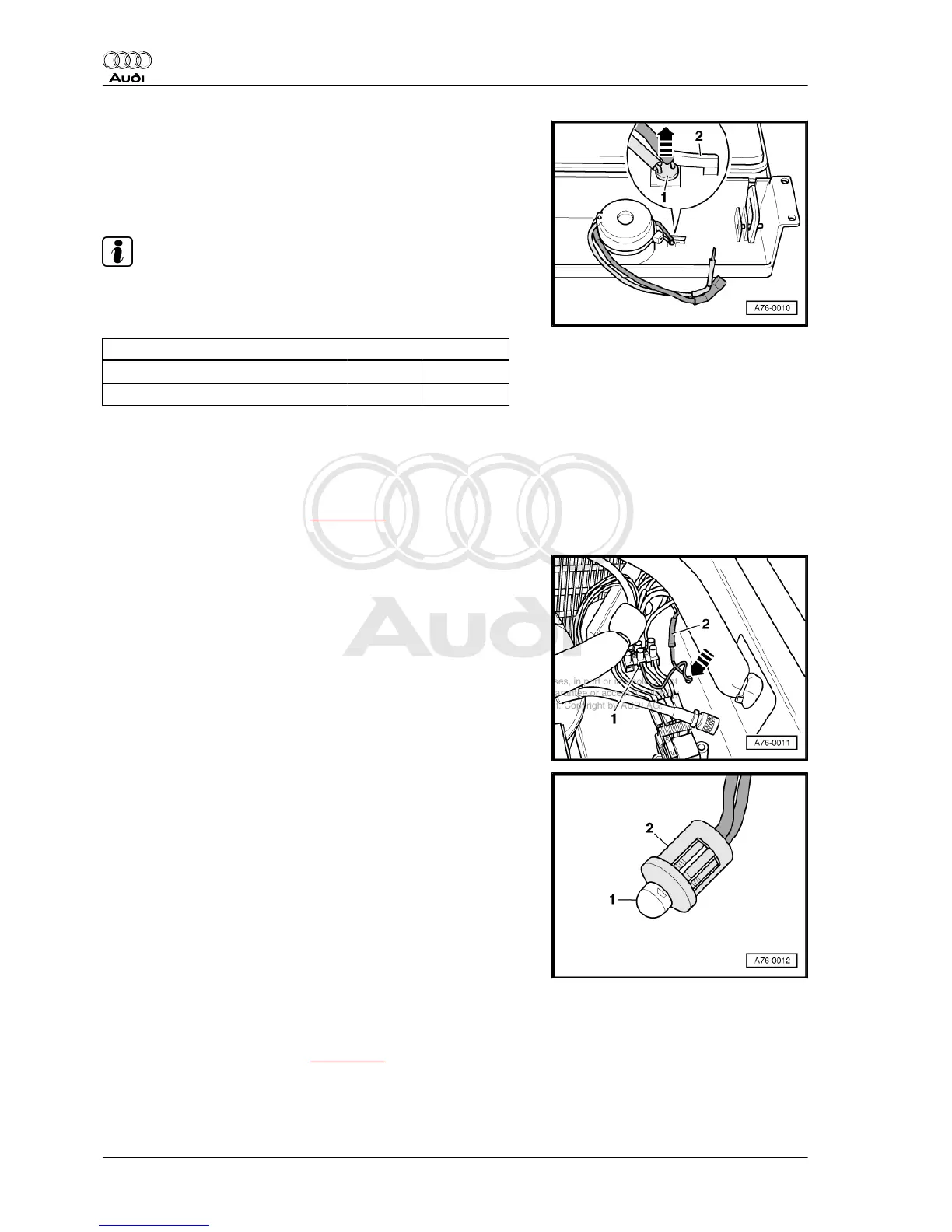

– Carefully press the locking lever -2- aside and press the LED
-1- for the operation indicator to the rear out of the trim
-arrow-.
Installing
Install in reverse order, paying attention to the following:
Note
Re-attach all cable ties in the same locations on installation.
Tightening torques
Component Nm
Thermostat to trim 12
Trim to housing 1.5
1.6 Removing and installing LED for refrig‐
erator box interior light
Removing
– Remove the refrigerator box ⇒ page 385 .
– Open the hinged cover for the refrigerator box.
– Unplug the connector -2- and unfasten the bolted joint -1-.
– Press the LED for the refrigerator box interior light inwards into
the refrigerator -arrow-.
– Pull the LED -1- out of the holder -2-.
Installing
Install in reverse order, paying attention to the following:
– Press on the holder for the interior light until it engages.
1.7 Removing and installing battery monitor
Removing
– Remove the refrigerator box ⇒ page 385 .
