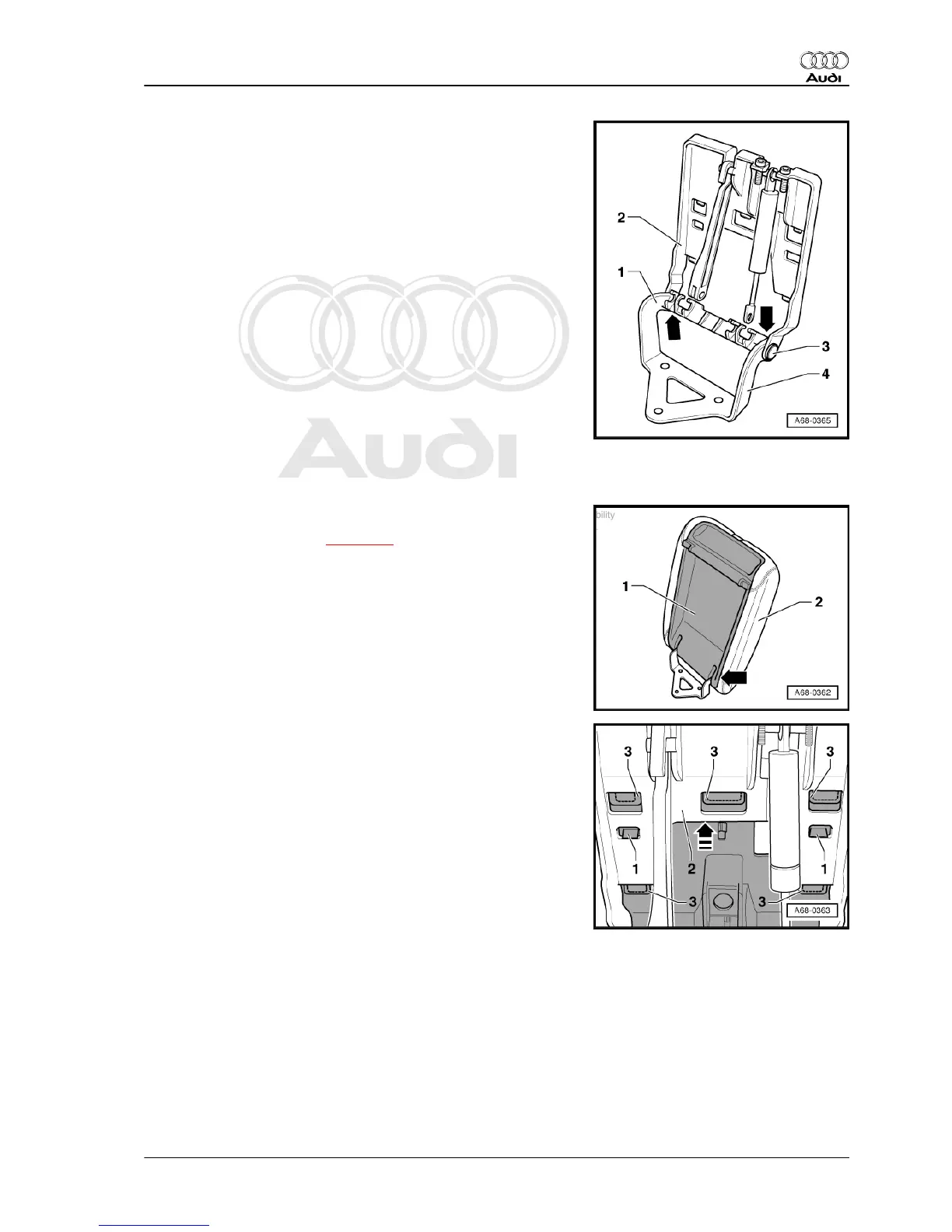

– Prise out securing clips -arrows-.
– Pull out pivot pins -1- and -3-.
1 - Bracket
2 - Carrier
Installing
Install in reverse order of removal. Observe the following:
– Always renew securing clips following removal.
– Make sure carrier and padding fully engage.
4.4 Removing and installing centre armrest
stop
Removing
– Remove centre armrest ⇒ page 75 .
– Starting at bottom -arrow-, carefully prise cover -1- off padding
-2-.
– Take out cover.
– Press down retaining tabs -1-.
– At the same time, press carrier -2- in direction of -arrow- until
lugs of carrier are disengaged from guides of padding -3-.
– Take bracket with carrier out of padding.
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
4. Front centre armrest (one-piece) 79
