Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.

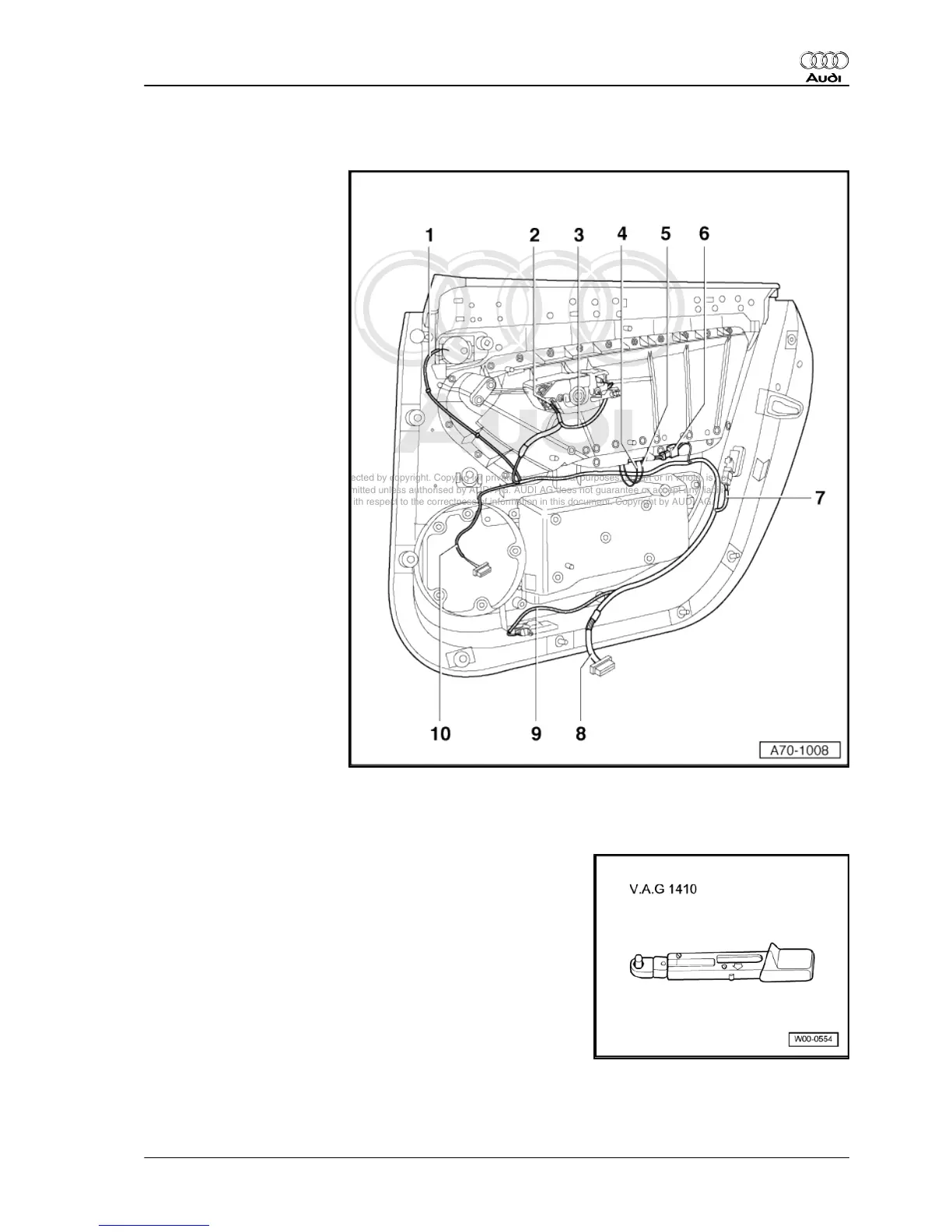

2.2 Exploded view of door trim cable routing
1 - Cable to treble loudspeaker
2 - Cable to central locking
switch (driver side only)
3 - Cable to interior door han‐
dle light
4 - Cable to window regulator
switch
5 - Cable to ashtray light
6 - Connector for window reg‐
ulator switch module and ash‐
tray light
7 - Cable to door warning light
8 - Cable to connector at win‐
dow regulator control unit
9 - Cable to exit light
10 - Cable to connector at bass
loudspeaker
2.3 Removing and installing rear door trim
Special tools and workshop equipment required
Torque wrench -V.A.G 1410-
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
2. Rear door trim panels 189
