13 - Air conditioner operating unit (rear)
❑ Removing and installing ⇒ page 71
14 - Storage compartment (small)
❑ Removing and installing ⇒ page 61
❑ Removing and installing small storage compartment lid ⇒ page 62
15 - Cup holder (rear)
❑ Removing and installing ⇒ page 61
❑ Removing and installing cup holder lid ⇒ page 62
16 - Storage compartment (large)
❑ Removing and installing ⇒ page 63
❑ Removing and installing sliding cover for large storage compartment ⇒ page 64

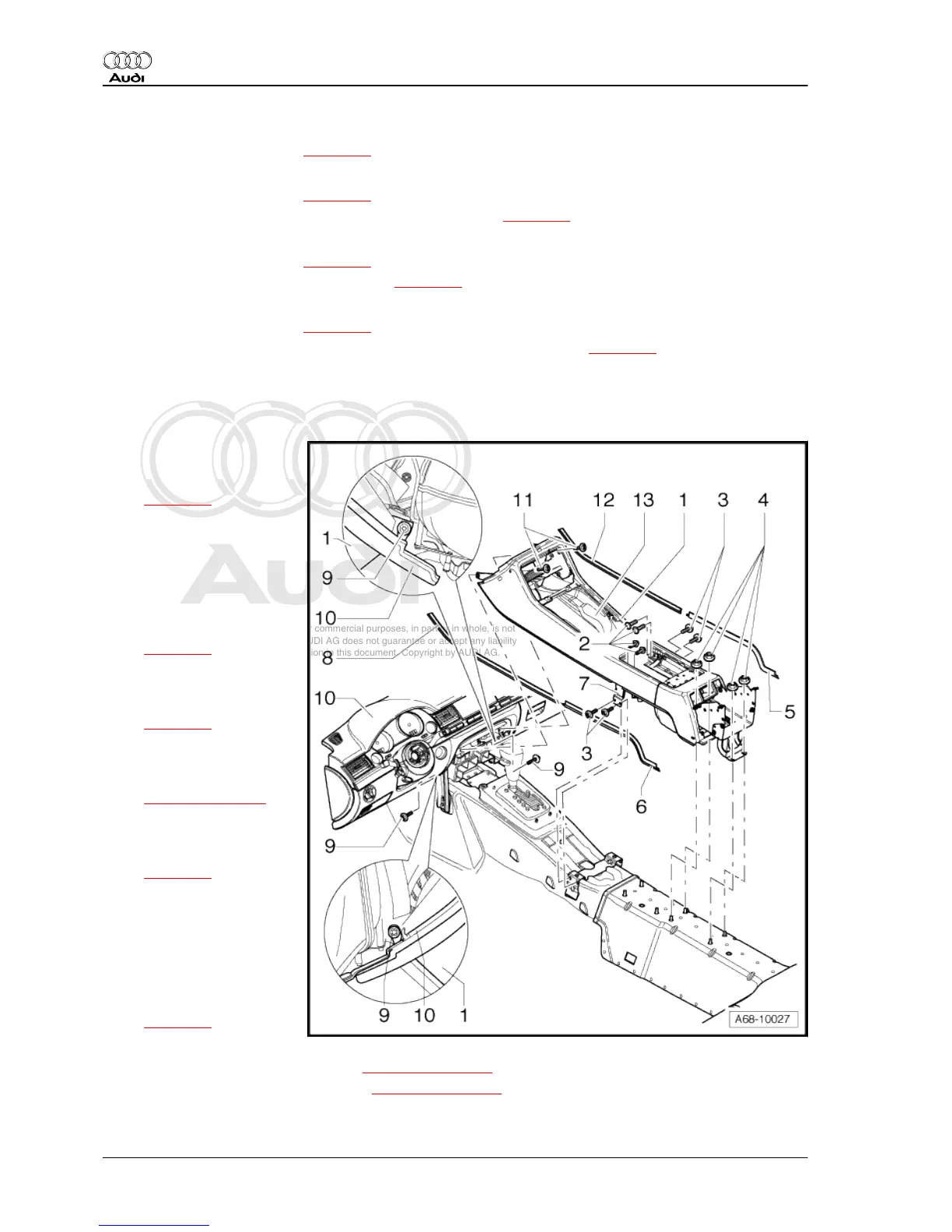

3.2 Exploded view of centre console with extension
1 - Centre console with exten‐
sion
❑ Removing and installing
⇒ page 51
2 - Bolts (4x), 4 Nm
3 - Bolts (4x), 4 Nm
4 - Nuts (4x), 4 Nm
5 - Rear floor covering rod
(right-side)
❑ Removing and installing
⇒ page 29
6 - Rear floor covering rod (left-
side)
❑ Removing and installing
⇒ page 29
7 - Bracket for centre console
(centre)
❑ Removing and installing
⇒ Item 1 (page 66)
8 - Front floor covering rod
(left-side)
❑ Removing and installing
⇒ page 29
9 - Bolts (2x), 4 Nm
10 - Dash panel
11 - Bolts (2x), 4 Nm
12 - Front floor covering rod
(right-side)
❑ Removing and installing
⇒ page 29
13 - Air duct (rear)
❑ Left-side: removing and installing ⇒ Item 10 (page 70)
❑ Right-side: removing and installing ⇒ Item 11 (page 70)
