3 Electrically operated individual rear
seats

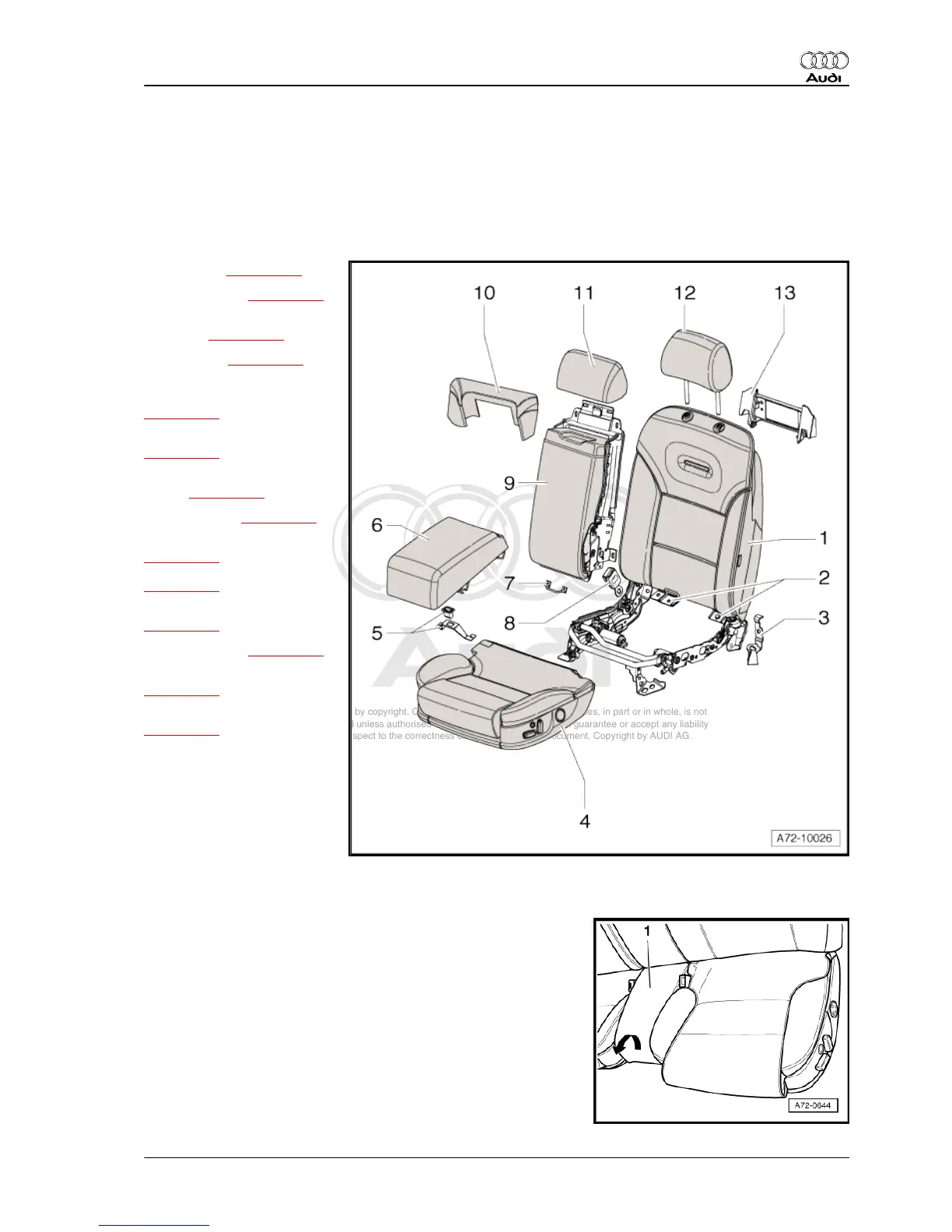

3.1 Exploded view of electrically operated individual rear seat components
1 - Backrest ⇒ page 343
2 - Isofix holder ⇒ page 173
3 - Rear outer seat belt anchor‐
age point ⇒ page 358
4 - Seat pan ⇒ page 342
5 - Seat centre section front
holder with fastener
⇒ page 344
6 - Seat centre section
⇒ page 341
7 - Seat centre section rear
holder ⇒ page 344
8 - Belt buckle ⇒ page 116
9 - Backrest centre section
⇒ page 345 ; backrest centre
section release handle
⇒ page 345
10 - Rear shelf trim
⇒ page 346
11 - Filler piece ⇒ page 346
12 - Head restraint
⇒ page 358
13 - Backrest holder
⇒ page 344
3.2 Removing and installing centre section
Removing
Pull the centre section -1- upwards in arrow direction and out
in the direction of travel.
Installing
Install the centre section -1- in the reverse order of removal.
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
3. Electrically operated individual rear seats 341
