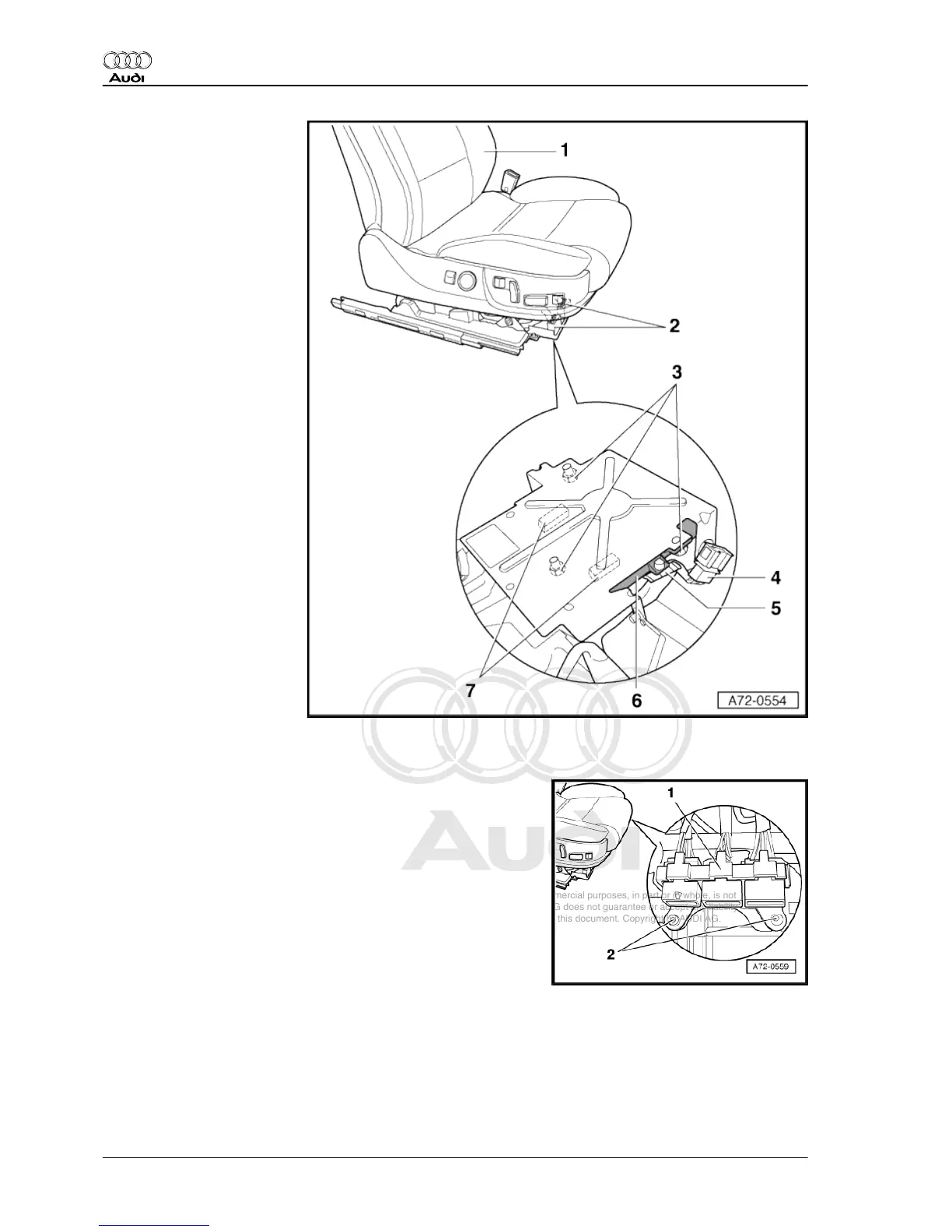

1 - Front seat
2 - Connectors (2x)
3 - Nuts (3x)
4 - Connector
5 - Securing clips (2x)
6 - Control unit
♦ Removing
– Unplug the connector
-4-.
– Unfasten the wiring har‐
ness on the left and right
at the securing clips -5-
(2x).
– On the inside of the con‐
trol unit -6- unscrew the
nuts -3- (3x).
– On the front of the con‐
trol unit -6- unplug the
connectors -2- (2x).
– Lift out the control unit
-6- until the connectors
-7- (2x) are accessible.
– Unfasten the securing
clips (2x) and unplug the
connectors -7- (2x).
♦ Installing
– Install the control unit
-6- in the reverse order
of removal.
7 - Connectors (2x)
1.17 Removing and installing connector point
♦ Removing
– Unscrew the bolts -2- (2x).
– Detach the connector point -1-.
♦ Installing
– Install the connector point -1- in the reverse order of removal.
1.18 Removing and installing seat longitudi‐
nal adjustment motor
Special tools and workshop equipment required
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
296 Rep. gr.72 - Seat frames
