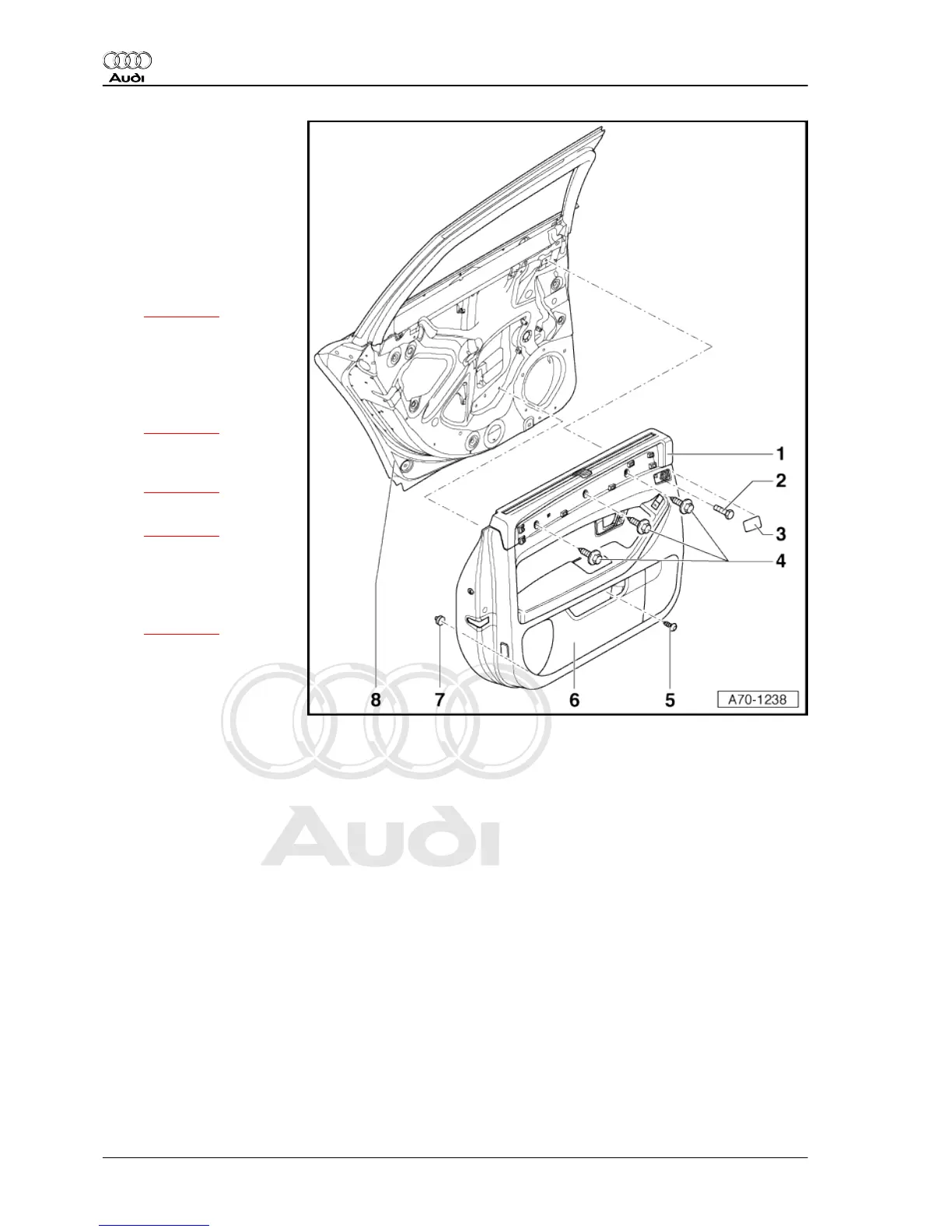

1 - Door trim
♦ Removing
– Use a screwdriver to
prise out the treble loud‐
speaker trim -3-.
– Unscrew the bolt -2-.
– Unscrew the bolt -5-.
Do not open the hinged pocket
-6-.
– Sun blind fitted: Re‐
move the trim panel
⇒ page 192 .
– Unscrew the bolts -4-.
– Starting at the bottom,
unfasten the door trim
-1- at the clips -7- (8x).
– Disengage the Bowden
cable for the interior
door handle
⇒ page 191
– Unplug the connector at
the window regulator
control unit
⇒ page 191 .
– Unplug the connector at
the bass loudspeaker
⇒ page 191
♦ Installing
– Make sure all the clips
-7- are in position on the
back of the door trim.
Replace damaged clips
⇒ page 191
– Install the door trim -1- in
the reverse order of re‐
moval.
2 - Bolt
❑ Vehicles with long wheelbase are fitted with a nut.
❑ Tightening torque 3 Nm.
3 - Treble loudspeaker trim
4 - Bolts
❑ Vehicles with long wheelbase are fitted with 4 bolts.
❑ Tightening torque 3 Nm.
5 - Bolt
❑ Vehicles with long wheelbase are fitted with a nut.
❑ Tightening torque 3 Nm.
6 - Hinged pocket with mount
7 - Clips (8x)
8 - Door shell
