1 - Third rear three-point seat
belt
♦ Removing
WARNING
♦Heed the safety regula‐
tions for pyrotechnic
components ⇒ page 94 .
♦Heed the disposal regu‐
lations for pyrotechnic
components ⇒ page 96 .
– With the ignition switch‐
ed on, disconnect the
battery earth wire ⇒
Electrical system; Rep.
gr. 27 .
– Remove the rear seat
bench ⇒ page 333 .
– Remove the rear seat
backrest ⇒ page 334 .
– Remove the rear shelf
⇒ page 262 .
– Remove the rear centre
floor panel anchorage
point ⇒ page 114 .
– Unscrew the bolt -6-.
– Unplug the belt tension‐
er connector -4-.
– Disengage the belt reel
-5-.
♦ Installing
– Engage the belt reel -5-
in arrow direction.
– Continue installing the
third rear three-point
seat belt -1- in the reverse order of removal.
WARNING
There must not be any‐
one in the vehicle when
connecting the battery.
– With the ignition switched on, connect the battery earth wire ⇒ Electrical system; Rep. gr. 27 .
– Check the belt-fastened sensor ⇒ page 105 .

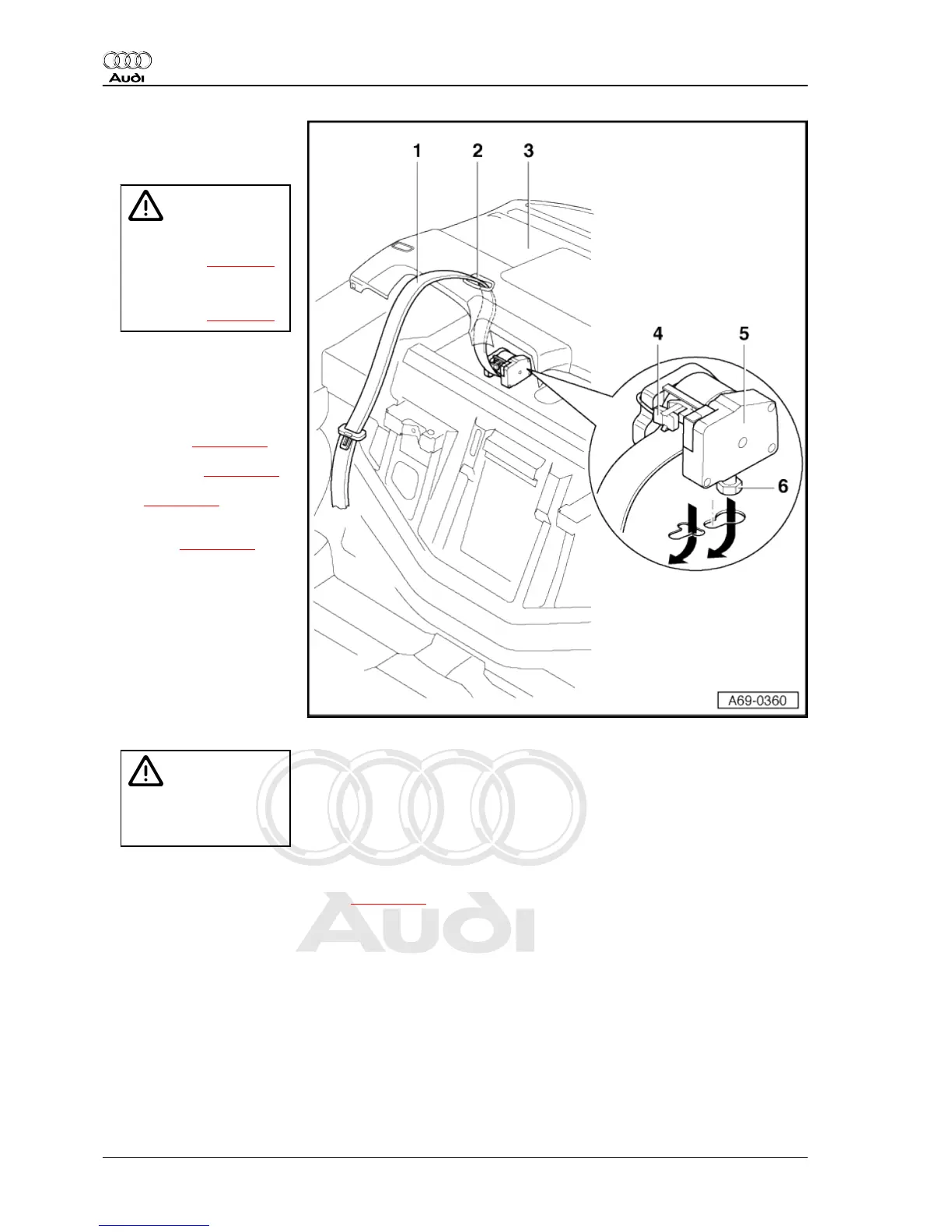

2 - Webbing guide trim
3 - Rear shelf
4 - Belt tensioner connector
5 - Belt reel/belt tensioner
6 - Bolt
❑ Tightening torque 55 Nm.
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
112 Rep. gr.69 - Passenger protection
