All vehicles (continued)

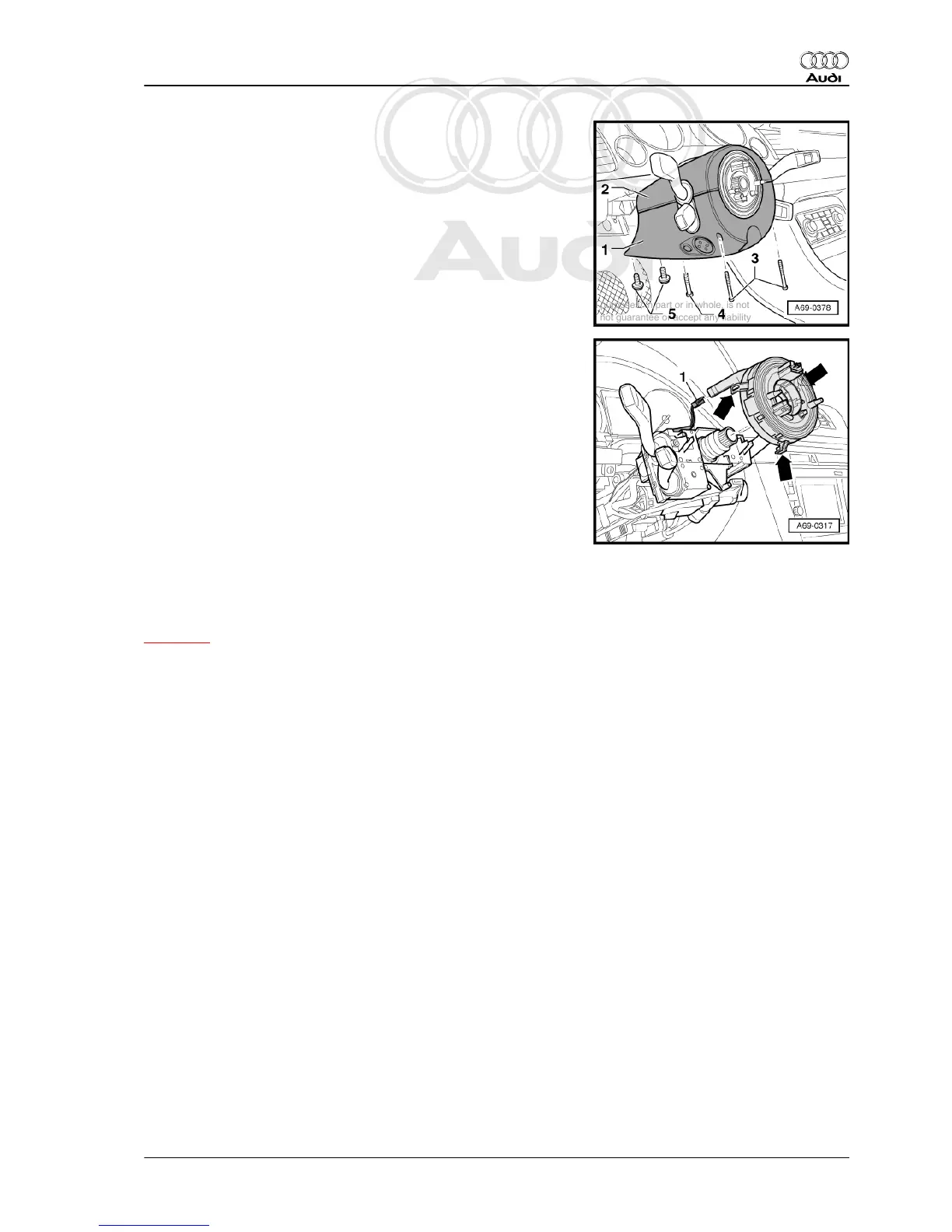

– Screw out the bolts -5- (2x).
– Screw out the bolt -4-.
– Screw out the Torx bolts -3- (2x) using the screwdriver T8 -
T40056 A- .
– Separate the upper trim -2- for the steering column switch
module from the lower trim -1- and detach both parts.
– Unplug the connector -1-.
– Carefully release the fasteners -arrows- and detach the return
ring with slip ring from the steering column switch module.
Installing
Install in reverse order. Pay attention to the following:
– Make sure all 3 fasteners of the steering column switch module
and the connector are properly engaged.
– Engage the upper trim in the hooks of the lower trim, press
both parts together and screw them on.
– Calibration must be performed for the steering angle sender
on vehicles with a steering angle sender in the return ring with
slip ring ⇒ Vehicle diagnostic tester.
4.3.1 Tightening torques
⇒ page 13 , Removing and installing steering column switch mod‐
ule trim
