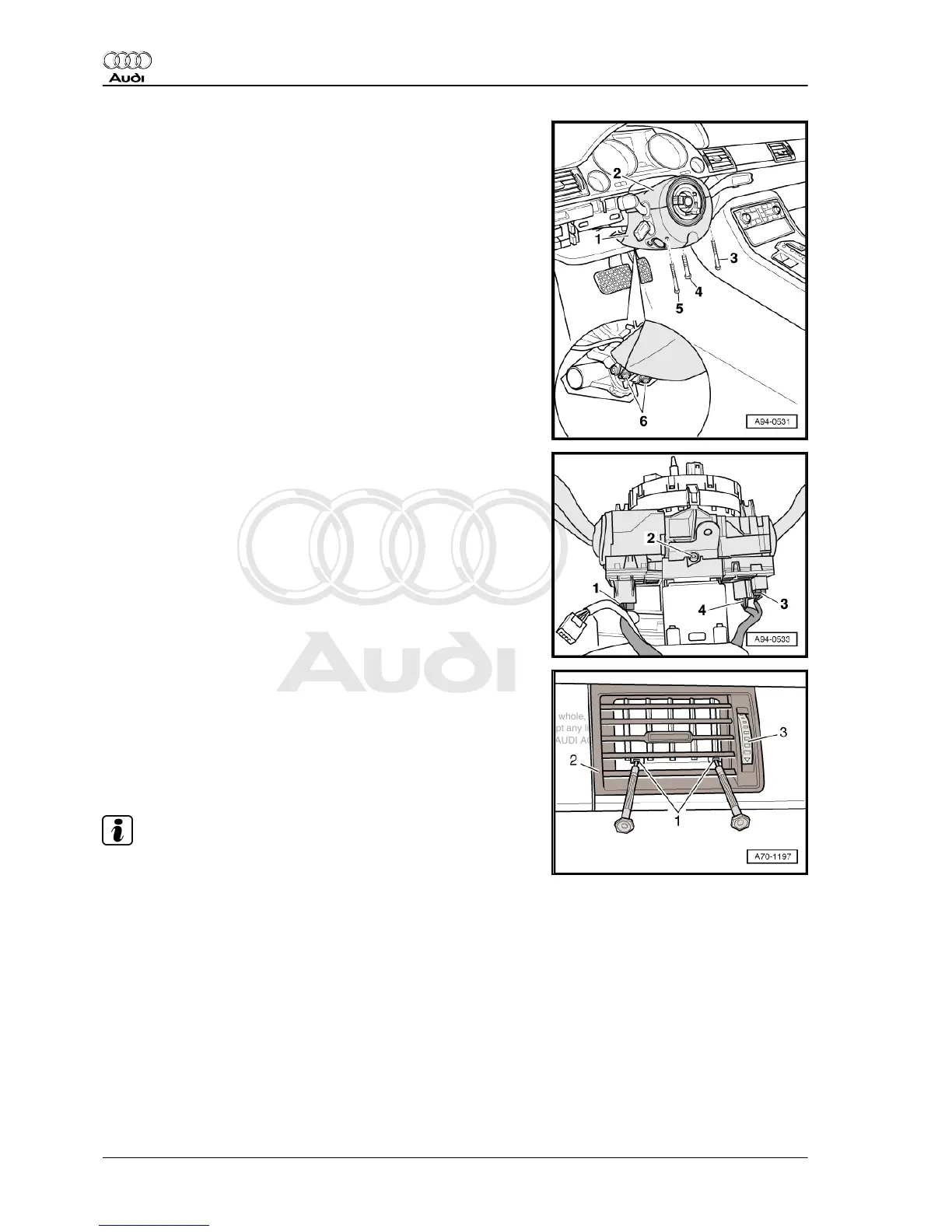

– Screw out the bolts -3- and -5- using the screwdriver T8 -
T40056 A- .
– Screw out the TORX bolts -6- and the hexagon socket-head
bolt -4-.
– Separate the upper trim -2- for the steering column switch from
the lower trim -1- and detach both sections.
– Screw out the bolt -2-.
– Unplug the connectors -1-, -3- and -4-.
– Carefully pull off the steering column switch with the steering
column electronics control unit.
– Turn the knurled wheel -3- of the air vent on the left next to the
dash panel insert fully upwards.
– Above the bottom slat -2-, insert a jeweller's screwdriver -1- in
each of the two air vent clips.
– Alternately pull the left and right side of the air vent out of the
installation opening, leaving the jeweller's screwdrivers in po‐
sition.
Note
If necessary, use a hook -3438- to pull the air vent out of the
opening.
– Unplug the connector at the air vent.
– Repeat the procedure at the air vent on the right next to the
dash panel insert.
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
234 Rep. gr.70 - Trim, insulation
