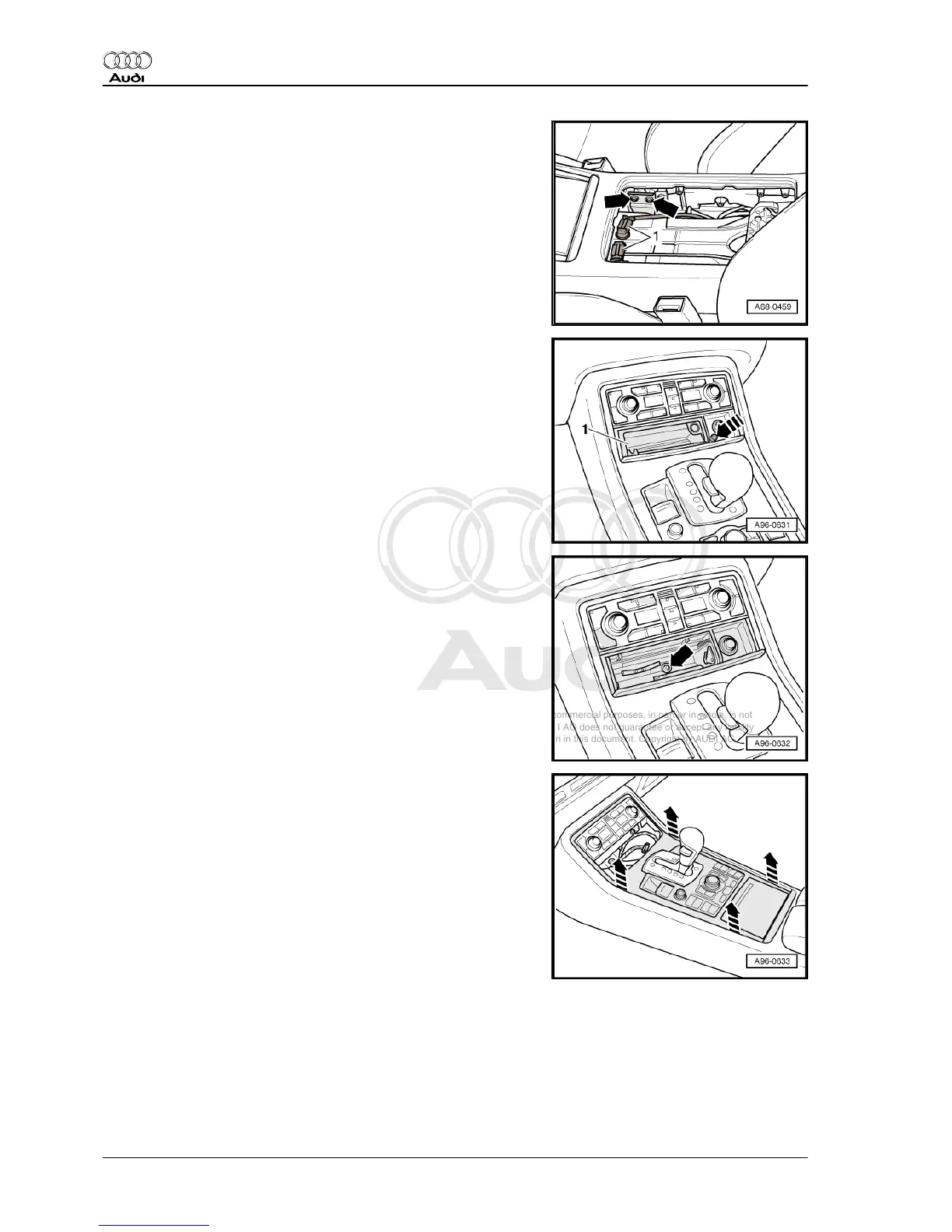

– Unplug electrical connectors -1-.
– Remove bolts -arrows- on both sides of centre console.
– Press button -arrow- and take out insert -1- for ashtray (front).
– Unscrew bolt -arrow- and remove housing for front ashtray.
– Unplug electrical connector.
– Lift off centre console switch trim -arrows-.
– Unplug electrical connectors.
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
26 Rep. gr.68 - Interior equipment
