Cisco ASR 1004 Hardware Installation Guide

SUMMARY STEPS
1.
Locate the threaded holes on the rear side of the chassis. Make certain that you hold the rear rack-mount
bracket with the ear and holes facing outward and towards the rear of the chassis.
2.
Position the rear rack-mount bracket top hole with the chassis second top hole from the back (see Figure
66: Attaching the Rear Rack-Mount Brackets to the Cisco ASR 1004 Router, on page 194).
3.
Insert and tighten the five screws on one side.
4.
After the bracket is secured to the side of the chassis, slide the two remaining components into the side
rack-mount bracket.
5.
Repeat Step 1 through Step 3 on the other side of the chassis. Use five screws to secure the rear rack-mount
brackets to the chassis.
DETAILED STEPS
Step 1
Locate the threaded holes on the rear side of the chassis. Make certain that you hold the rear rack-mount bracket with
the ear and holes facing outward and towards the rear of the chassis.
The following image shows where to attach the rear rack-mount brackets to the Cisco ASR 1004 Router.

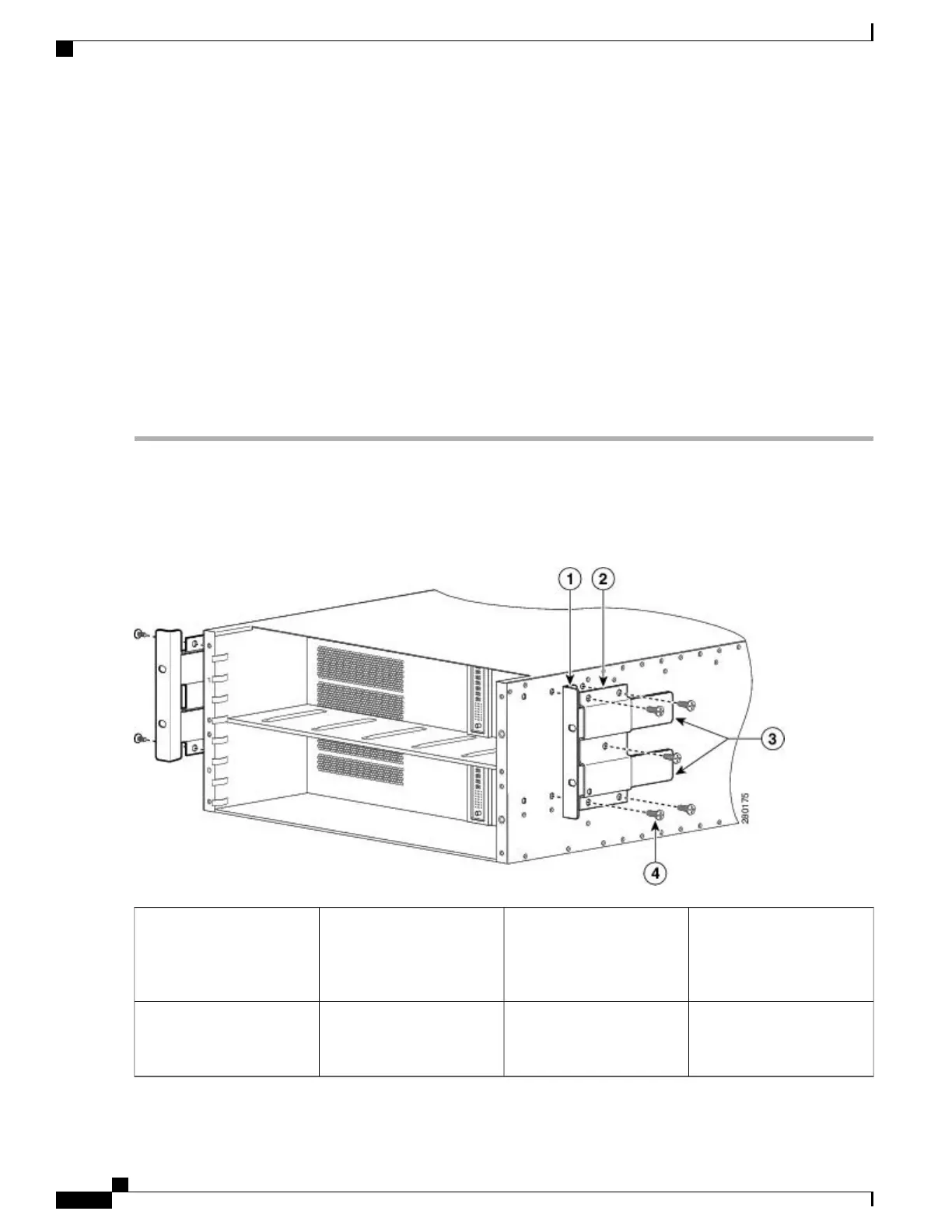

Figure 66: Attaching the Rear Rack-Mount Brackets to the Cisco ASR 1004 Router
Rear rack-mount bracket
components that slide into
rear bracket that is attached
to the chassis
3Rear rack-mount bracket ear
and holes
1
Rear rack-mount bracket
screws
4Rear rack-mount bracket
(first bracket to attach to
chassis)
2
Cisco ASR 1000 Series Router Hardware Installation Guide
194
Cisco ASR 1004 Router Overview and Installation
Chassis Rear Rack-Mount Brackets

Cisco ASR 1004 Specifications
