The following shows all the lead wires installed.

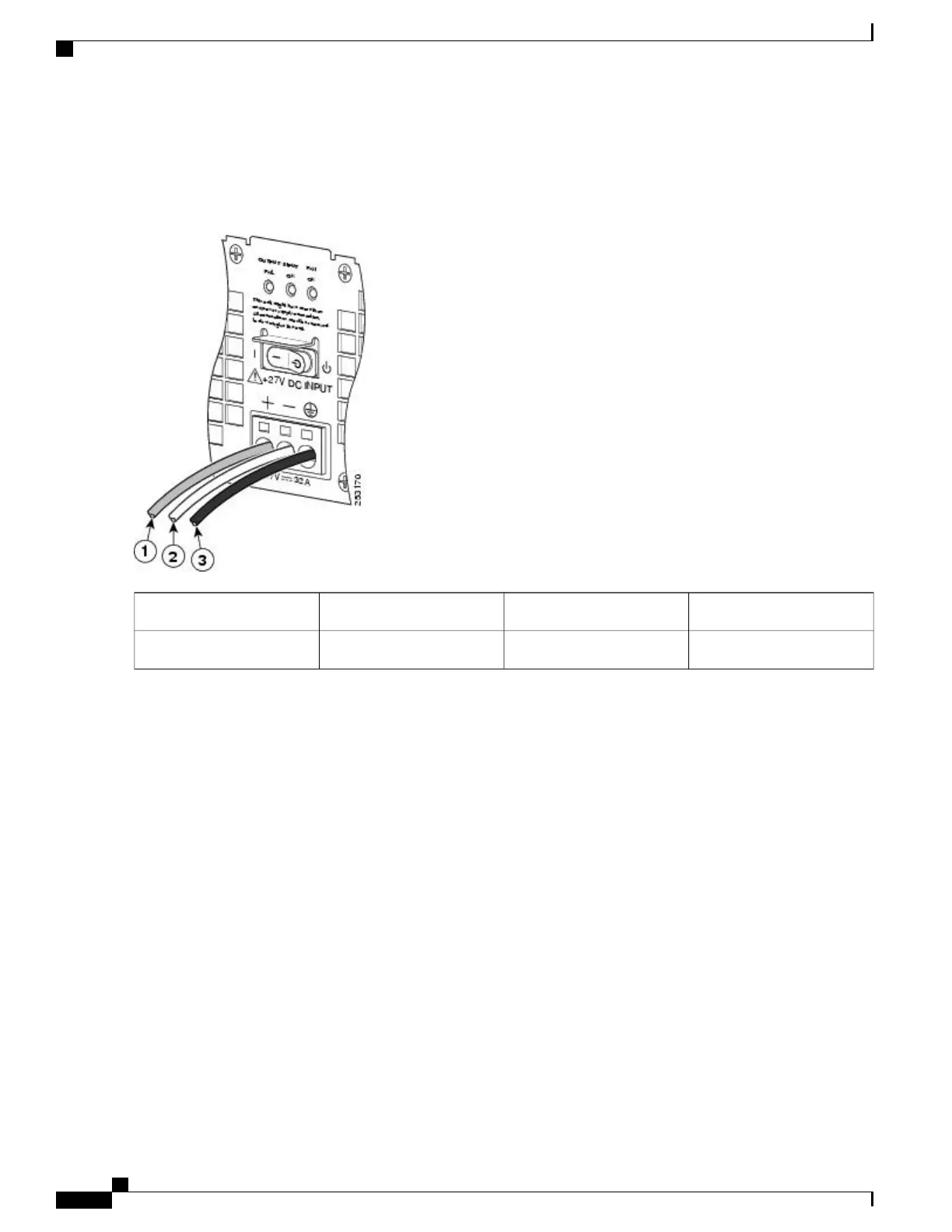

Figure 112: Cisco +24 VDC Power Supply Terminal Block With Lead Wires Installed
Ground lead wire3Positive lead wire1
——
Negative lead wire2
Make sure the stripped end of each lead wire is twisted tightly together. This makes insertion easier. Then make
certain the entire lead wire is inserted all the way into its receptacle. If any exposed wire at the stripped end of
a lead is visible after inserting the lead into its receptacle, remove the lead from the receptacle, use the wire
stripper to cut the stripped end of the lead, and then reinsert.
Note
When securing the ground, positive, and negative +24 VDC-input leads to the power supply faceplate, leave
extra service loop in the ground (GND) lead to ensure that the ground lead is the last lead wire to disconnect
from the power supply if a great deal of strain is placed on all three leads.
Caution
Cisco ASR 1000 Series Router Hardware Installation Guide
270
Cisco ASR 1002 Router Overview and Installation
Connecting Cisco 24 VDC Power Supply

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
