Cisco ASR 1004 Hardware Installation Guide

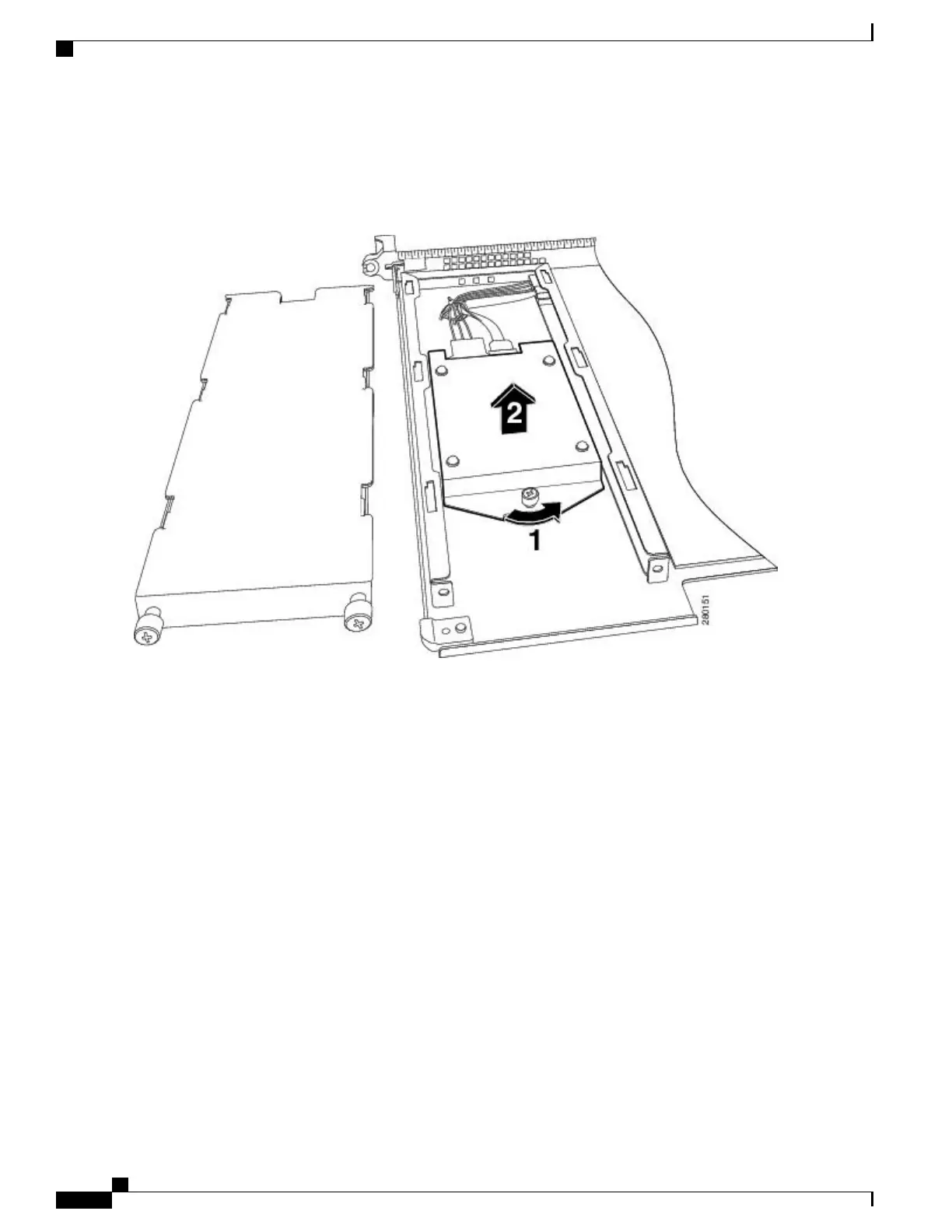

The following figure shows the Cisco ASR1000-RP1 module with the hard drive cover removed.
Figure 228: Cisco ASR1000-RP1 Module Hard Drive Cover and Screw Fastener
Step 5
Remove the internal drive cover:
a) Using a # 2 Phillips screwdriver or a flat head screwdriver, loosen the screw fasteners on the cover.
b) Slide the cover off as shown in xref Figure 14-2.
c) Lift the cover up from the board.
Step 6
Inspect the existing cables and replace them only if they are damaged. If you do not need to replace them, leave the
connection to the Cisco ASR 1000 Series Route Processor 1 in place and only remove the connection to the internal hard
drive.
Step 7
Carefully disconnect the cables at the rear of the hard drive. These cables are tie-wrapped in to prevent them from
disconnecting from the Cisco ASR 1000 Series RP1 itself. If the cables are not damaged, leave the cables connected to
the Cisco ASR 1000 Series RP1 with the tie wrap in place. Remove the old hard drive.
Cisco ASR 1000 Series Router Hardware Installation Guide
480
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing the Cisco ASR1000-RP1 Module Internal Hard Drive

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
