Cisco ASR 1004 Hardware Installation Guide

The following figure shows the cables still connected because they do not have to be replaced.

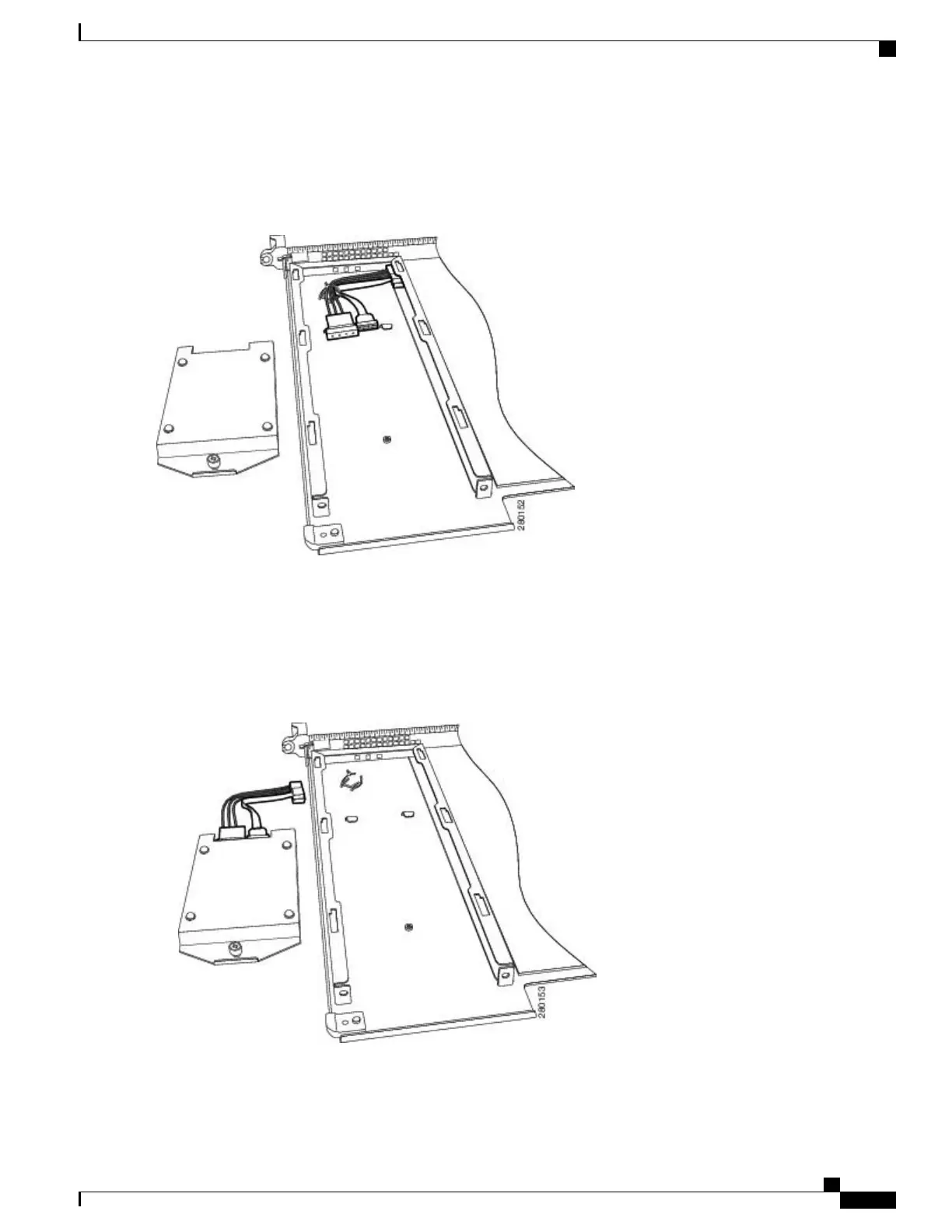

Figure 229: Cisco ASR1000-RP1 Module With Internal Hard Drive Removed
Step 8
If the cables are damaged:
a) Remove the tie wrap around the cables.
b) Disconnect the cables from both the Cisco ASR 1000 Series Route Processor 1 connector and the internal hard drive
connector as shown in the following figure.
Figure 230: Cisco ASR1000-RP1 Module Internal Hard Drive and Module Base
This completes the procedure for disconnecting the Cisco ASR 1000 Series RP internal hard drive.
Cisco ASR 1000 Series Router Hardware Installation Guide
481
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing the Cisco ASR1000-RP1 Module Internal Hard Drive
