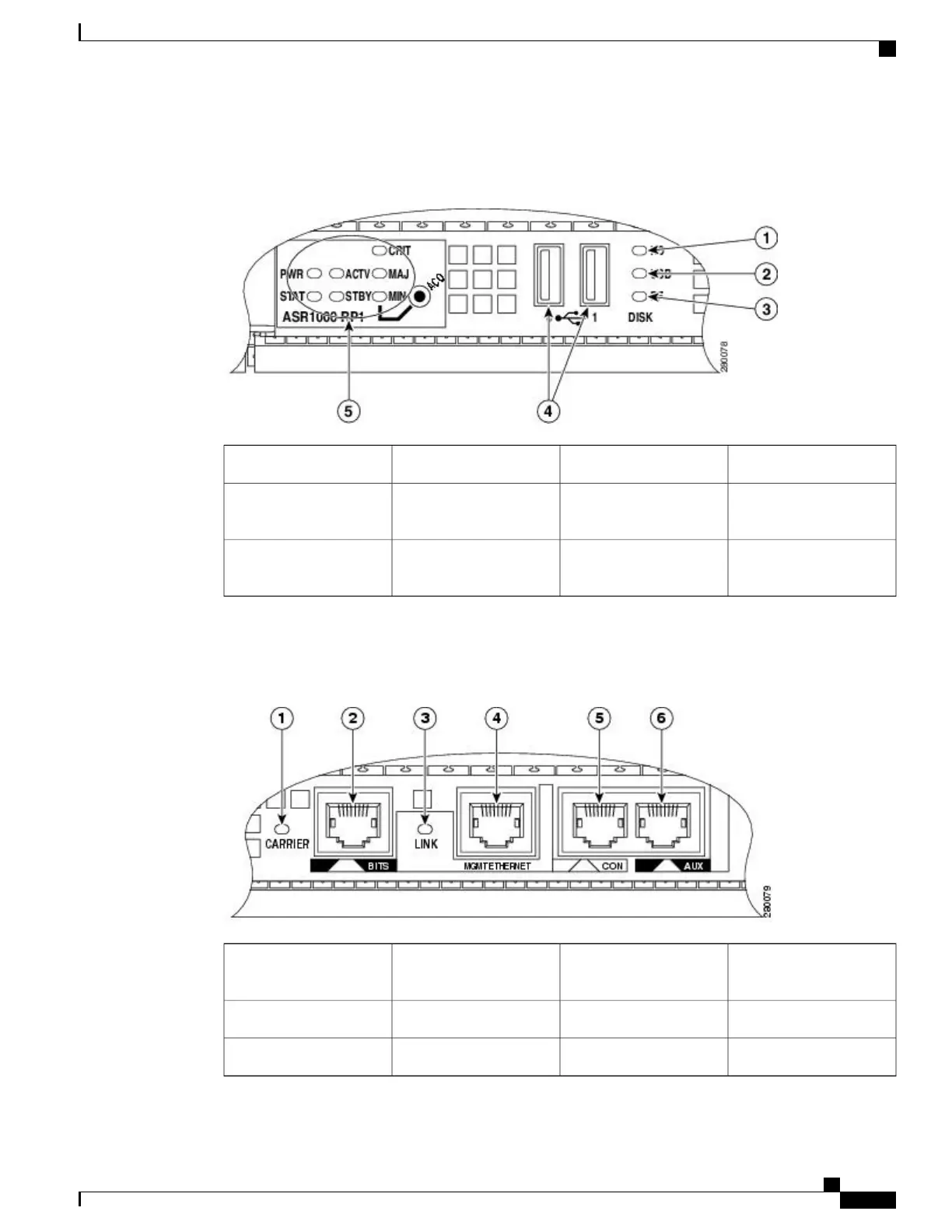

The following figure shows the Cisco ASR 1000 Series Route Processor faceplate.
Figure 8: Cisco ASR1000-RP Route Processor Faceplate LEDs and Connectors
USB 0, USB 1 connector4Internal hard drive LED1
ASR1000-RP1 or
ASR1000-RP2 LEDs
5External USB Flash LED2
——
Internal USB bootflash
LED
3
The following figure shows the Cisco route processor with faceplate connectors.
Figure 9: Cisco ASR1000-RP Route Processor Connectors
MGMT Ethernet
connector
4CARRIER LED1
CON connector5BITS connector2
AUX connector6LINK LED3
Cisco ASR 1000 Series Router Hardware Installation Guide
39
Cisco ASR 1000 Series Routers Component Overview
Cisco ASR 1000 Series Route Processor Differences

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
