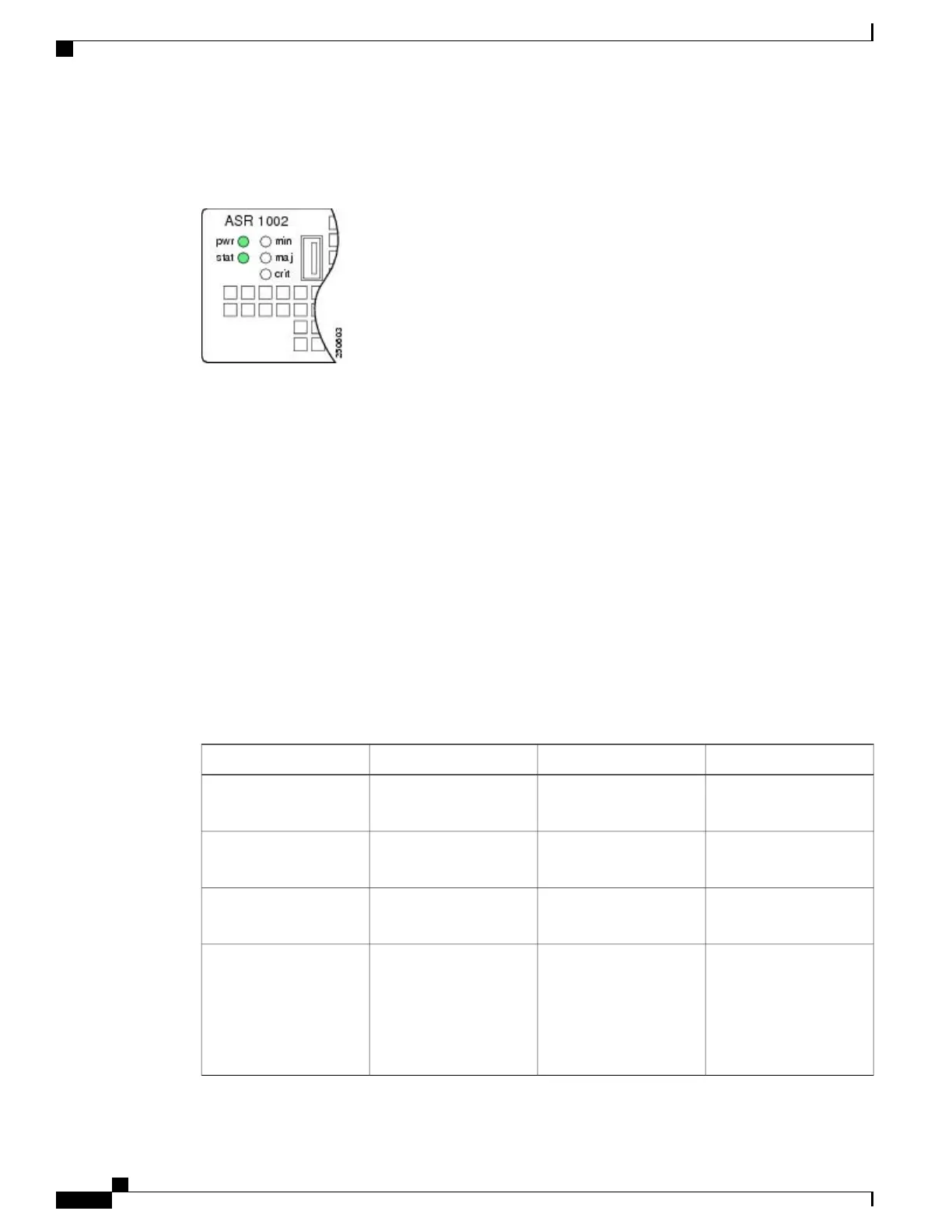

The following figure shows the Cisco ASR1000-RP1 LEDs for the Cisco ASR 1002 Router.
Figure 10: Embedded Cisco ASR1000-RP1 LEDs
The embedded route processors for the Cisco ASR 1002 Router provides connection for one SPA bay and
the circuitry for the a built-in 4xGE SPA.
The Cisco route processor for ASR 1002 Router meets the requirements of route processors for the Cisco
ASR 1006 and the Cisco ASR 1004 routers; except for the following deviations:
•
No SATA hard drive supported. Bulk file storage is on a large fixed eUSB device (up to 8 GB (bytes)
supported).
•
No support for redundant route processors.
•
Hardware memory and storage options (such as DRAM) are not field upgradeable.
•
Network clock changes. No second BITS clock input supported.
•
The LED order is from top to bottom on the route processor is MIN, MAJ, CRIT.
•
The Cisco ASR1000-RP2 is not supported on the Cisco ASR 1002 router or Cisco ASR 1002-F router
The following table lists the Cisco embedded ASR1000-RP1 LEDs and behaviors.
Table 12: Cisco Embedded ASR1000-RP1 LEDs in the Cisco ASR 1002 Router
Behavior Description
Color —State
LEDLED Label
All power requirements
are within specification
Solid greenPowerPWR
Off, the router is in
standby mode.
Off
Cisco IOS has
successfully booted.
Solid greenSystem statusSTAT
ROMMON is running or
when the Process
Manager declares that a
critical ASR 1000 Series
RP1 process is not
running
Yellow
Cisco ASR 1000 Series Router Hardware Installation Guide
44
Cisco ASR 1000 Series Routers Component Overview
Cisco Integrated ASR1000-RP1 for Cisco ASR 1002 Router

Cisco ASR 1004 Specifications
