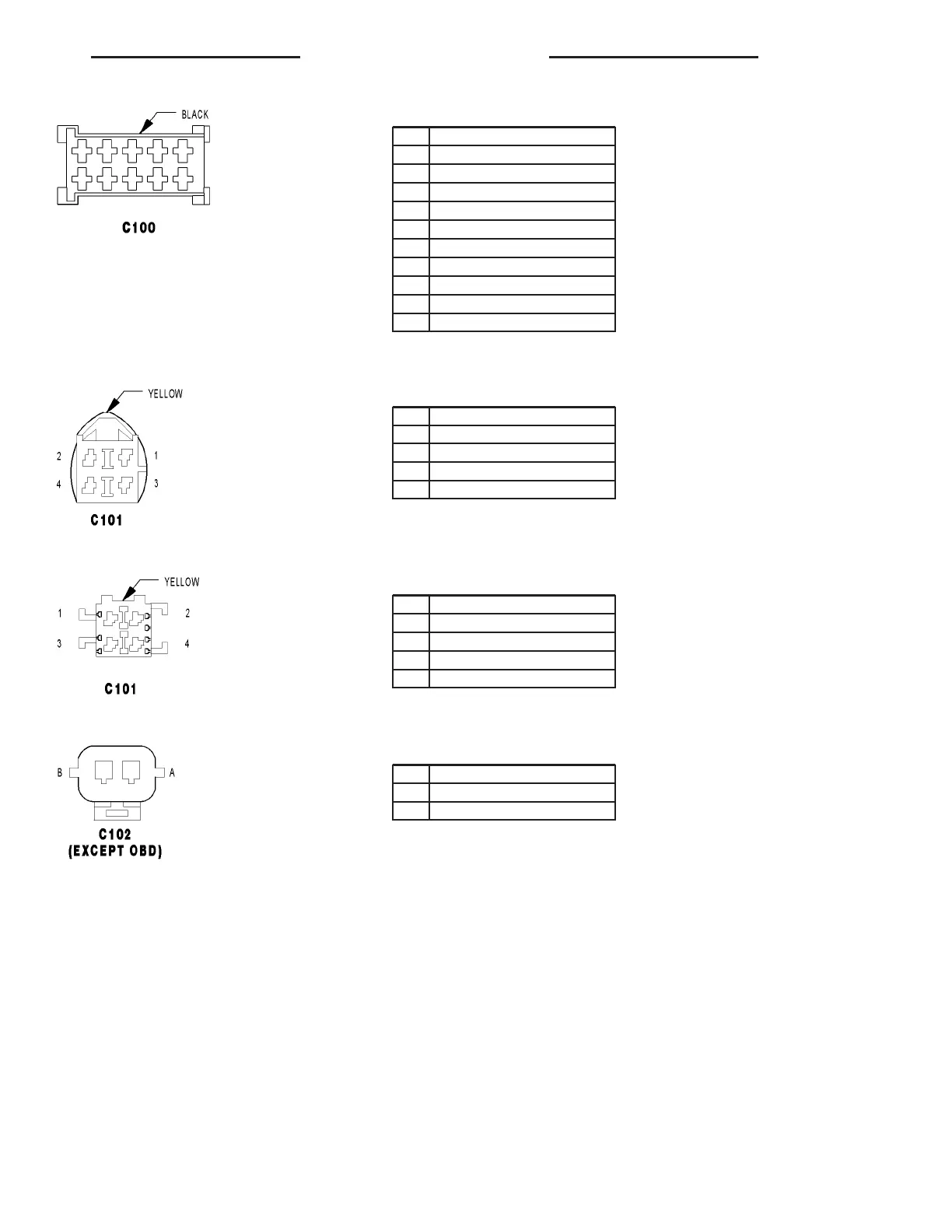

C100 - BLACK (MAIN BODY)
CAV CIRCUIT
1 18BK/BL
2 18RD/DG
3 16WT/BL/RD
4-
516RD
616BK
7 16BK/BL
8 14BK/VT
9-
10 -
C101 - YELLOW (ENGINE SIDE)
CAV CIRCUIT
1 16WT/BL
2 14BK/YL
3 16BL/DG
4 16BK/RD
C101 - YELLOW (MAIN BODY SIDE)
CAV CIRCUIT
120BL
2 12BK/YL
3 16BL/DG
4 16BK/RD
C102 (EXCEPT OBD) - (ENGINE SIDE)
CAV CIRCUIT
A 18WT/BL
B-
VA 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 13
