(17) Remove the bolts holding the tran smission
housin g t o th e converter housing from inside t he con-
vert er housing.
(18) Stan d the tra nsmission upright on the con-
vert er housing. Be su re to use suitable spa cers
between th e bench surfa ce and the convert er housing
since the input shaft protr udes past the fron t surfa ce
of the housing.
(19) Remove the rem ain ing bolt s holdin g t he
transmission h ousing to the con vert er housing.
(20) Remove the tran sm ission hou sing from the
conver ter hou sing.
(21) Remove output sh aft with center and rea r
gear set a nd clutch K3 (3) (F ig. 45).
(22) Remove t hrust needle bearing (4) an d thrust
washer (5) (Fig. 45).
(23) Remove input shaft with clutch K2 and front
gear set (6).
(24) Remove clu tch K1 (1).

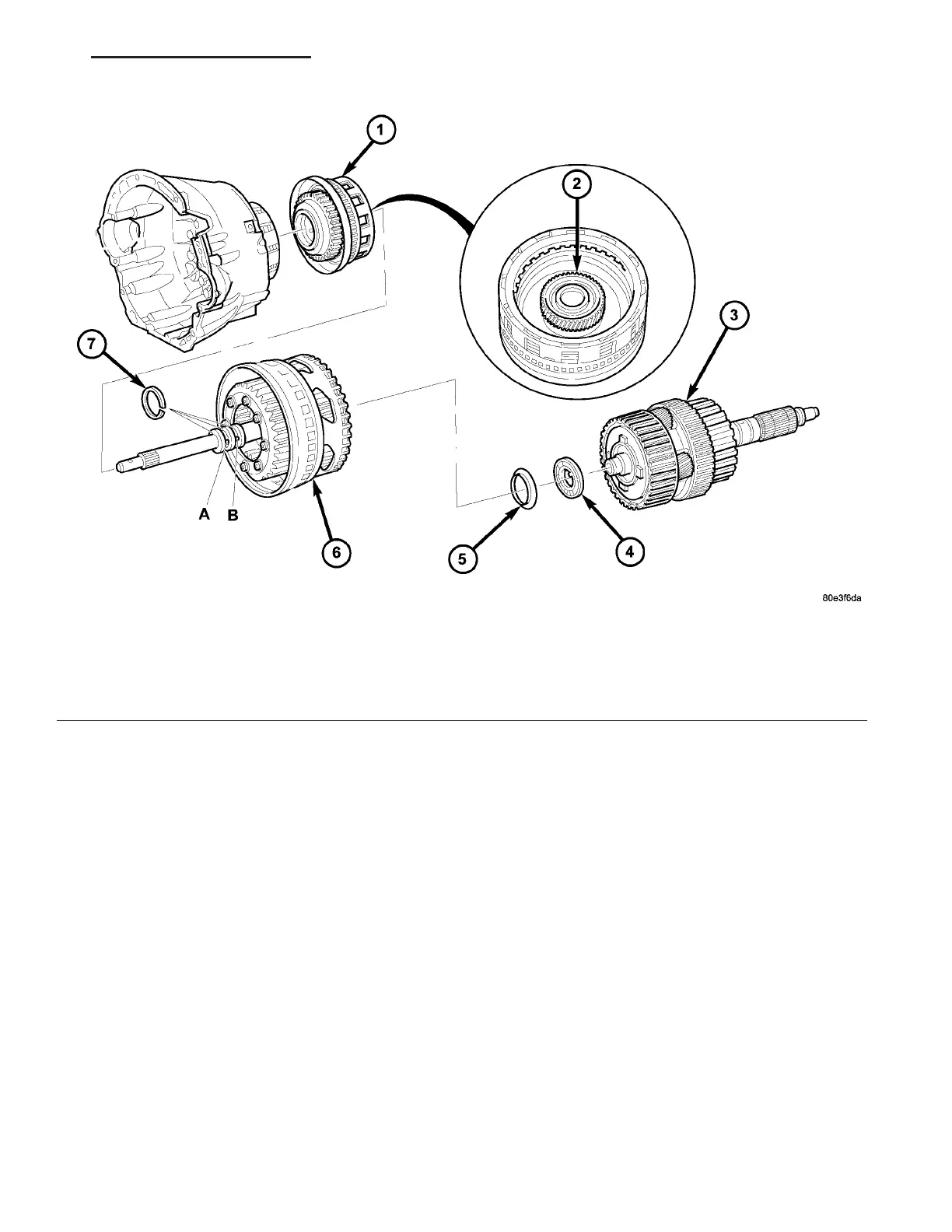

Fig. 45 Remove K1, K2, and K3 Clutches
1 - DRIVING CLUTCH K1 5 - THRUST WASHER
2 - SUN GEAR OF FRONT PLANETARY GEAR SET 6 - FRONT PLANETARY GEAR SET, DRIVING CLUTCH K2, AND
INPUT SHAFT
3 - DRIVING CLUTCH K3, OUTPUT SHAFT, AND CENTER AND
REAR PLANETARY GEAR SETS
7 - SEALING RINGS
4 - THRUST NEEDLE BEARING
VA AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION 21 - 49
