(29) Remove multiple-disc pack B3 (2) (Fig. 47)
and spring washer (3) by removing sna p-r ing (1) in
transmission housing. To fa cilitat e rem oval of the
sn ap-ring (1), compress the m ultiple-disc pack B3 (2).
Note wh ich clut ch disc is rem oved just prior t o the
spring wash er (3) for re-assembly. If th e clu tch discs
are re-used, this disc mu st be r eturned to its original
position on t op of the spring washer.
(30) Un screw Torx socket bolts (7) (Fig. 47).
(31) Remove mult iple-disc holding clutch B2 (4)
(Fig. 47) from tra nsmission housing. The extern ally
toothed disc ca rrier for mu ltiple-disc holdin g clutch
B2 is also the piston for multiple-disc h olding clu tch
B3.
(32) Remove parkin g lock gear (5) (Fig. 47).

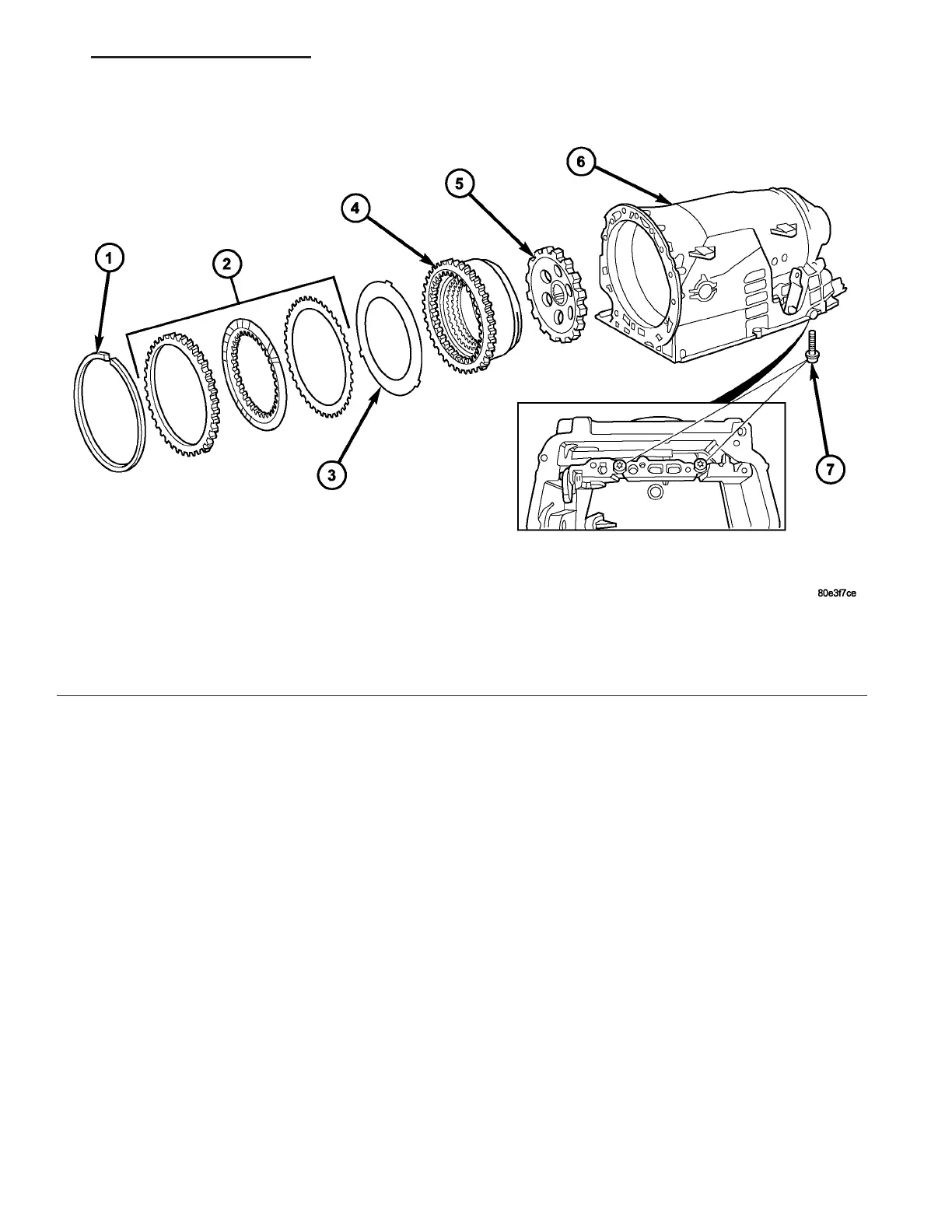

Fig. 47 Remove B2, B3, and Parking Gear
1 - SNAP-RING 5 - PARK GEAR
2 - HOLDING CLUTCH B3 DISCS 6 - TRANSMISSION HOUSING
3 - SPRING WASHER 7 - BOLTS - M8X60
4 - HOLDING CLUTCH B2
VA AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION 21 - 51
