ASSEMBLY
(1) In sert parkin g lock gea r (5) (Fig. 48).
(2) In st all multiple-disc holding clut ch B2 (4) in
transmission h ousing (6) (F ig. 48).
(3) Scr ew in both Torx socket bolts (7). Tigh ten th e
bolts t o 16 N·m (141 in.lbs.).

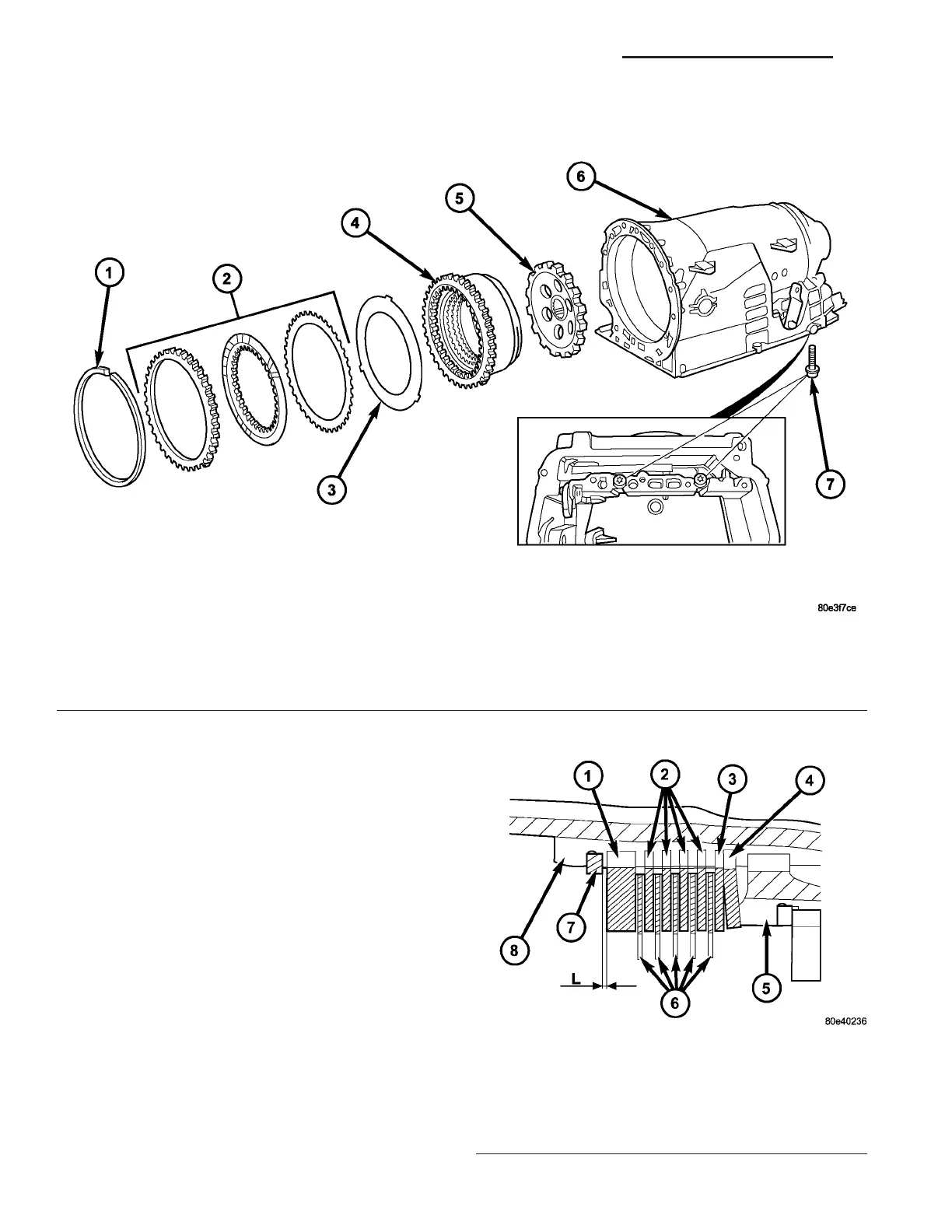

Fig. 48 Install B2, B3, and Parking Gear
1 - SNAP-RING 5 - PARK GEAR
2 - HOLDING CLUTCH B3 DISCS 6 - TRANSMISSION HOUSING
3 - SPRING WASHER 7 - BOLTS - M8X60
4 - HOLDING CLUTCH B2
Fig. 49 Measure B3 Clutch Clearance
1 - OUTER DISC - 6.5 MM
(0.256 IN.)
5 - PISTON
2 - OUTER DISCS - 1.8 MM
(0.071 IN.)
6 - FRICTION DISCS
3 - OUTER DISCS - 1.8 MM
(0.071 IN.)
7 - SNAP-RING
4 - SPRING WASHER 8 - B3 DISC CARRIER
21 - 52 AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION VA
