HOLDING CLUTCHES
DESCRIPTION
Three (Fig. 165) mu ltiple-disc holdin g clutches, th e
front, B1 (1), m iddle, B3 (4), and rear mu ltiple disc
clutches, B2 (5), a re l oca ted in th e planet ary gear
sets in the transmission housing.
A multiple-disc holding clu tch con sists of a num ber
of internally toot hed discs (10) on an internally
toothed disc carrier and exter nally toot hed discs (9)
on an ext erna lly toothed disc carrier, wh ich is rigidly
connect ed to th e transmission housing.

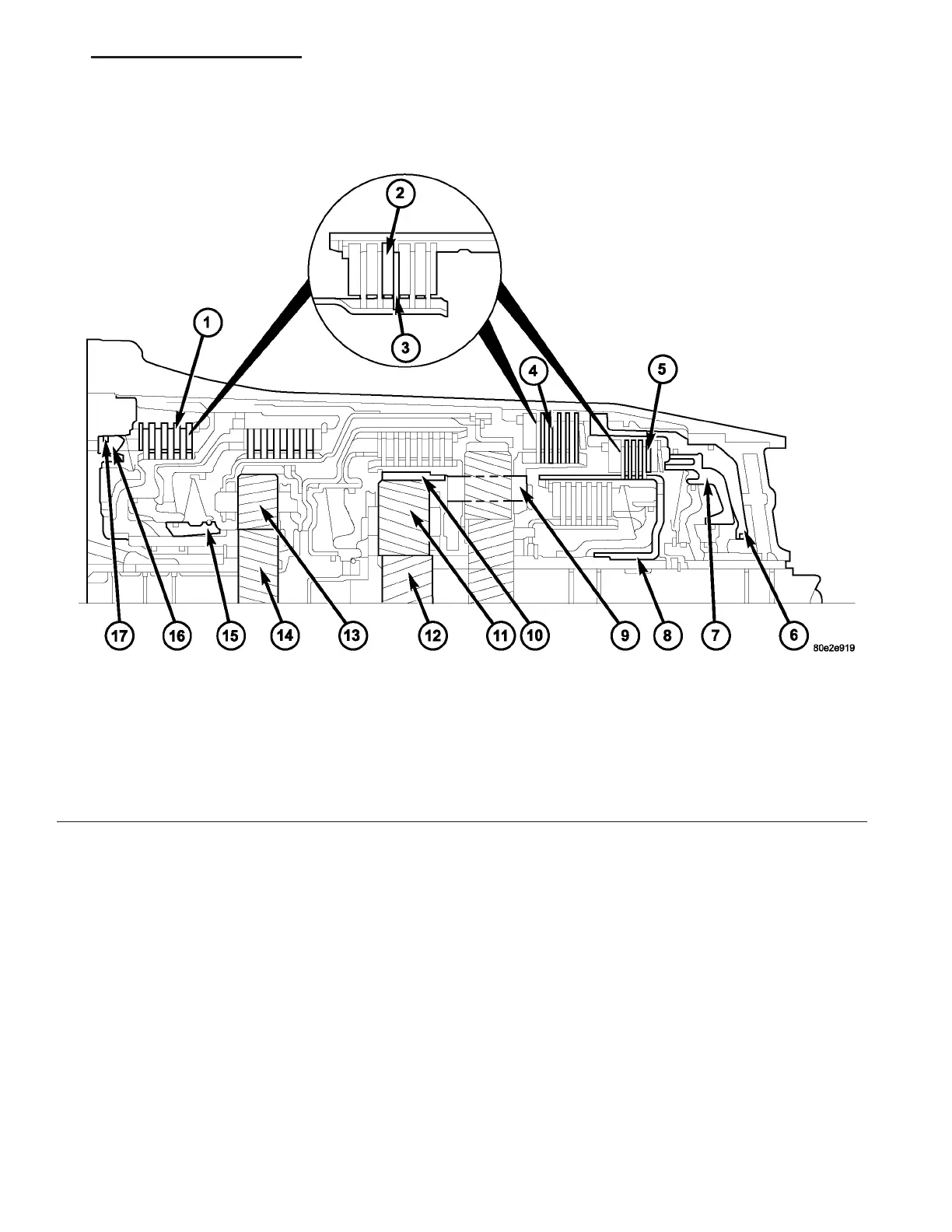

Fig. 165 Holding Clutches
1 - B1 CLUTCH 10 - CENTER PLANETARY GEARSET ANNULUS GEAR
2 - EXTERNALLY TOOTHED DISC 11 - CENTER PLANETARY GEARSET PINION GEARS
3 - INTERNALLY TOOTHED DISC 12 - CENTER PLANETARY GEARSET SUN GEAR
4 - B3 CLUTCH 13 - FRONT PLANETARY GEARSET PINION GEARS
5 - B2 CLUTCH 14 - FRONT PLANETARY GEARSET SUN GEAR
6 - B3 CLUTCH PISTON 15 - B1 CLUTCH INTERNALLY TOOTHED DISC CARRIER
7 - B2 CLUTCH PISTON 16 - B1 CLUTCH PISTON
8 - B2 CLUTCH INTERNALLY TOOTHED DISC CARRIER 17 - B1 CLUTCH EXTERNALLY TOOTHED DISC CARRIER
9 - REAR PLANETARY GEARSET PLANETARY CARRIER
VA AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION 21 - 141
