(6) Sepa rat e pist on guide ring (13) an d the B2 pis-
ton (10) fr om the B3 piston (8) by blowing com-
pr essed air into the bore ( D ) (Fig. 176).
(7) Press piston guide ring (13) out of th e B2 pis-
ton (10).
(8) Sepa rat e piston guide (4) from th e B3 piston
(8) by blowing compressed air int o th e bore ( A) (F ig.
176).

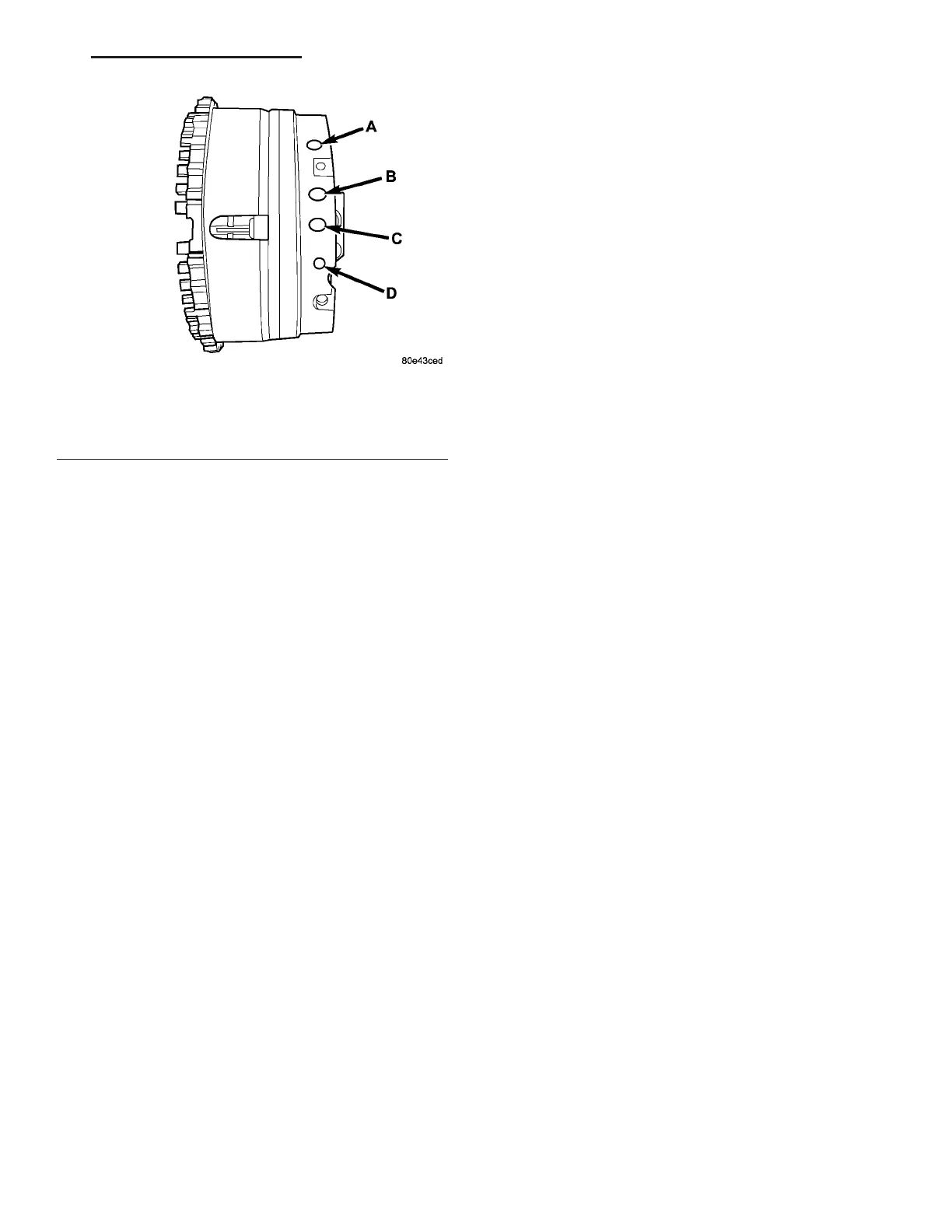

Fig. 176 B2 Clutch Oil Supply Locations
A - B3 PISTON
B - B2 PISTON GUIDE RING SIDE
C - K3 CLUTCH FEED
D - B2 PISTON SHIFT SIDE
VA AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION 21 - 149
