ASSEMBLY
(1) Check all sealing rin gs (2-4, 6) (Fig. 177),
repla ce if necessary. The r ounded off edges on the
sealing rin gs (2, 4, 6) must poin t outwa rds.

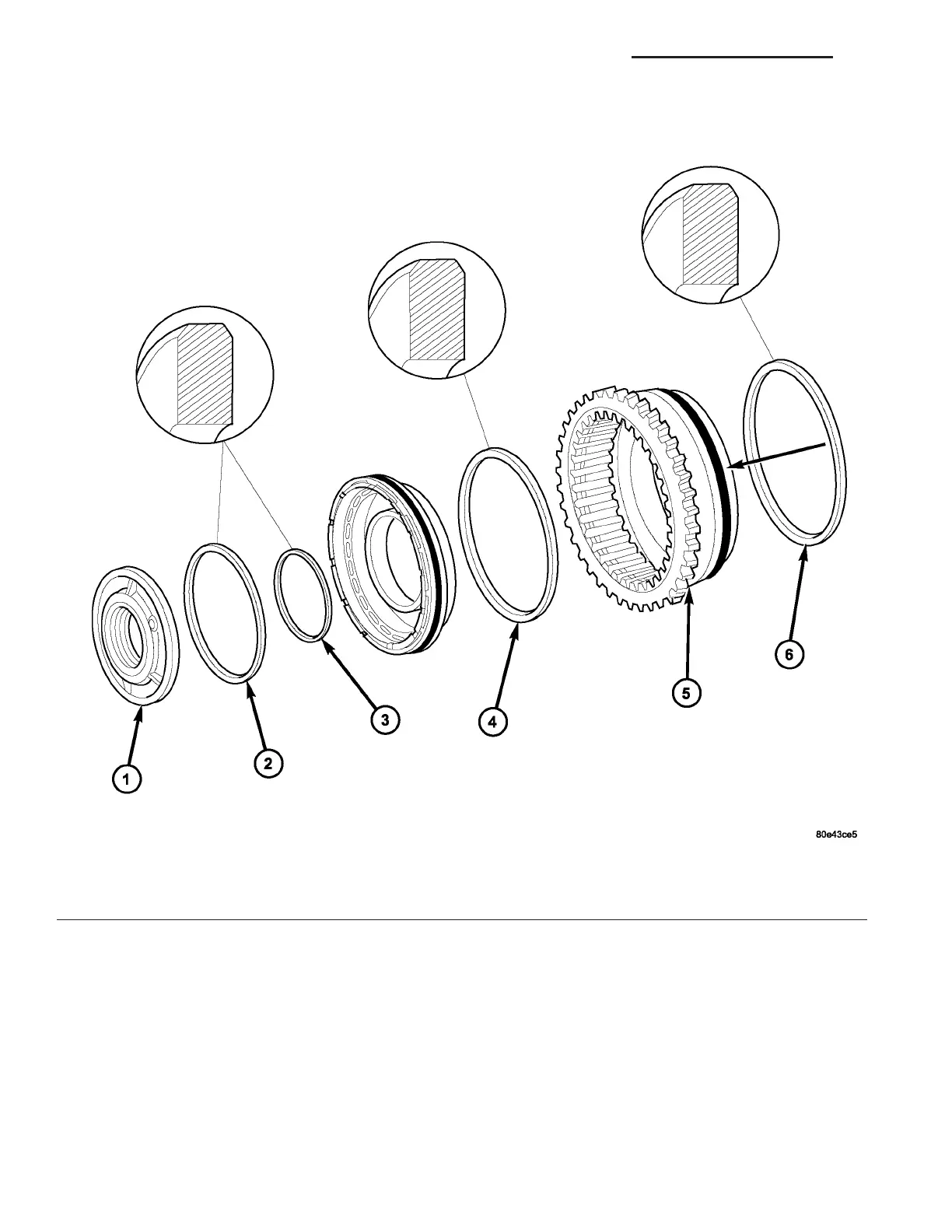

Fig. 177 Holding Clutch B2/B3 Seals
1 - PISTON GUIDE RING 4 - B2 PISTON SEALING RING
2 - PISTON GUIDE RING SEALING RING 5 - B3 PISTON/B2 OUTER DISC CARRIER
3 - PISTON GUIDE RING SEALING RING 6 - B3 PISTON SEALING RING
21 - 150 AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION VA
