(2) Assem ble piston guide (4) (F ig. 178) and B3
piston (8) in the corr ect posit ion. Verify t hat the
missin g toot h in the B3 pist on/B2 outer disc ca rrier
(8) is a ligned wit h t he centerline of the t wo threaded
holes in the B2 an d B3 piston guide (4).
(3) In sert B2 piston (10) (Fig. 178) in B3 piston
(8).

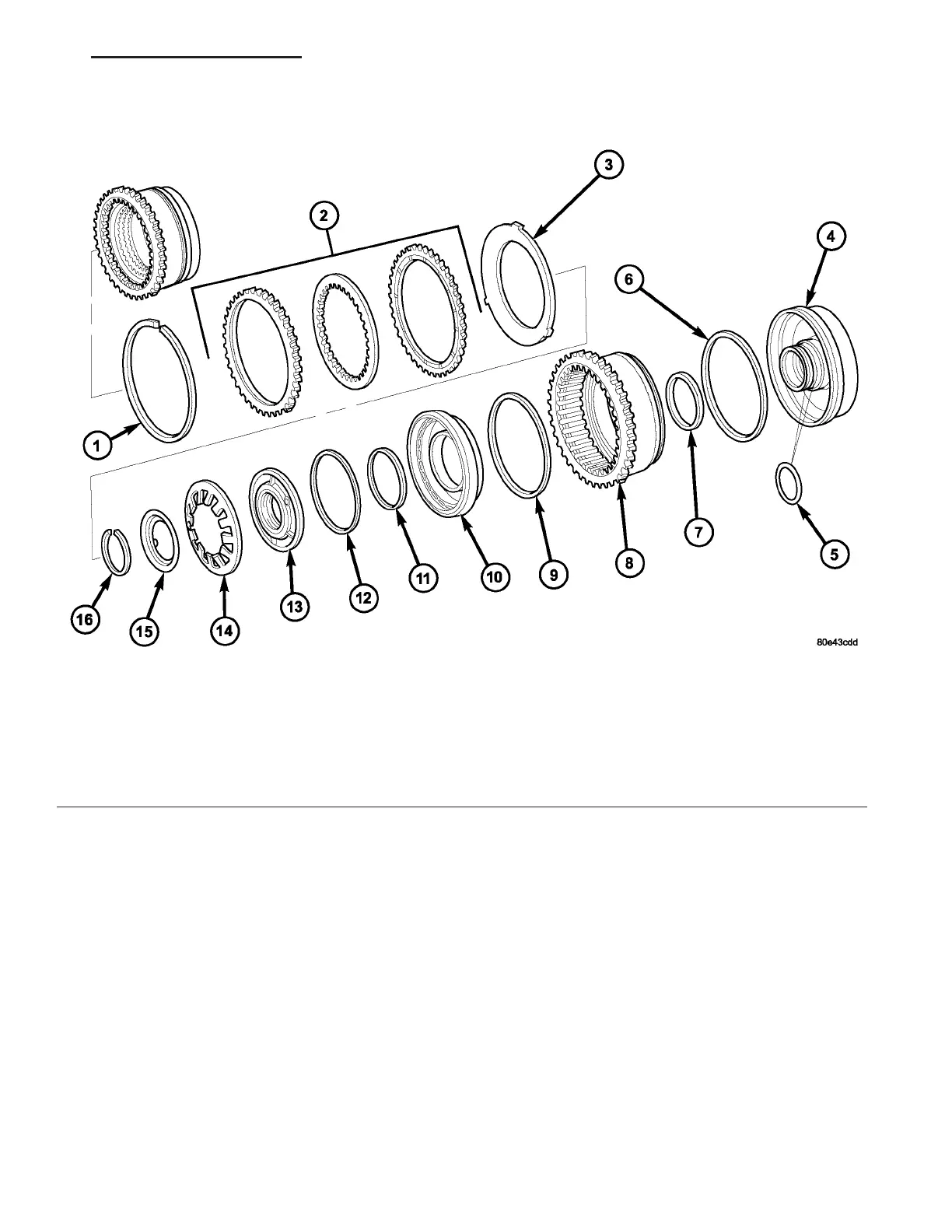

Fig. 178 Holding Clutch B2
1 - SNAP-RING 9 - B2 PISTON SEALING RING
2 - MULTIPLE DISC PACK 10 - B2 PISTON
3 - DISC SPRING 11 - PISTON GUIDE SEALING RING
4 - B2 AND B3 PISTON GUIDE 12 - PISTON GUIDE SEALING RING
5 - O-RING 13 - PISTON GUIDE RING
6 - B3 PISTON SEALING RING 14 - PISTON BACK PRESSURE DISC SPRING
7 - B3 PISTON SEALING RING 15 - SPRING PLATE
8 - B3 PISTON/B2 OUTER DISC CARRIER 16 - SNAP-RING
