DISASSEMBLY
(1) Remove u pper two visible Teflon rings (1) (Fig.
219) from output sha ft.
(2) Remove r etaining ring (11), shim (10), thr ust
needle bea rin g (9) an d thrust washer (8) from out pu t
sh aft.
(3) Remove clutch K3 (7).
(4) Remove r ear t ubular sh aft/freewheelin g clutch
F2 (6) (Fig. 219) fr om output sha ft.
(5) Remove rear gear set (5) wit h integrated tubu-
lar sha ft of center gear set from output sha ft.
(6) Remove thrust washer (4).

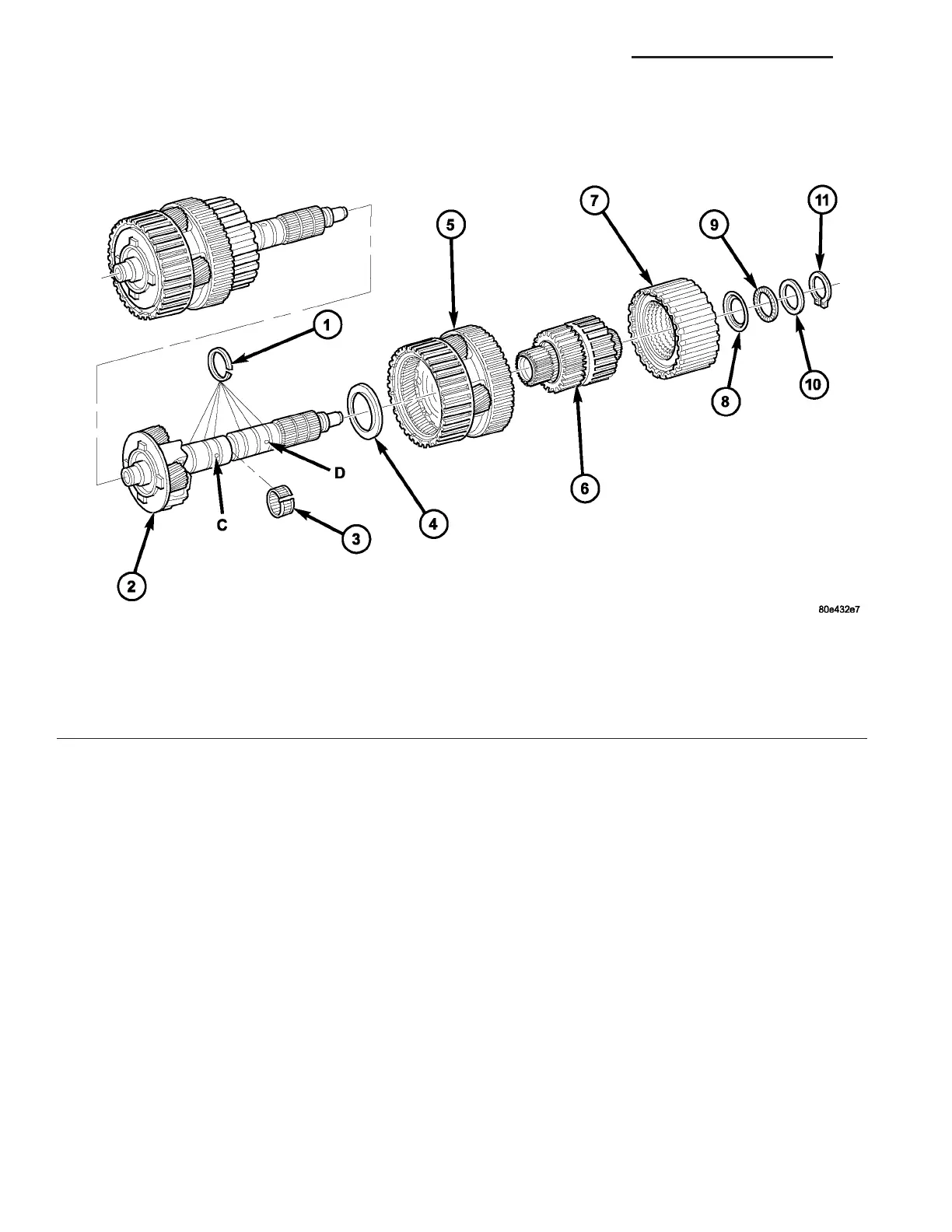

Fig. 219 Output Shaft with Center and Rear Planetary Geartrain
1 - TEFLON RINGS 7 - DRIVING CLUTCH K3
2 - OUTPUT SHAFT WITH CENTER PLANETARY CARRIER 8 - THRUST WASHER
3 - NEEDLE BEARING 9 - AXIAL NEEDLE BEARING
4 - THRUST WASHER 10 - SHIM
5 - REAR PLANETARY GEAR SET 11 - RETAINING RING
6 - REAR HOLLOW SHAFT/FREEWHEELING CLUTCH F2
21 - 166 AUTOMATIC TRANSMISSION NAG1 - SERVICE INFORMATION VA
