(4) Tighten the rein forcement bolts to 21 N·m (18
ft. lbs.).
(5) In st all th e regulator. (Refer to 23 - BODY/
DOOR - FRONT/WINDOW RE GULATOR - POWER
or MANUAL - INSTALLATION)
EX T ERI OR H AN DLE
REMOVAL
(1) Remove handle bolt. (F ig. 8)
(2) Slide handle a ssembly towa rds front of door.
(Fig. 9)
(3) Pull rea r of handle out a way fr om door an d dis-
enga ge the la tch levers.
(4) Slide h andle towa rds the rear of door and
remove.
INSTALLATION
(1) Position front of h andle int o fr ont slot in door.
(Fig. 10)
(2) Position rear of ha ndle into la tch opening a nd
enga ge lock a nd latch actuat ion levers wit h the latch
levers. (Fig. 11)
(3) Slide exterior handle towards r ear of door and
insta ll bolt. (Fig. 12)

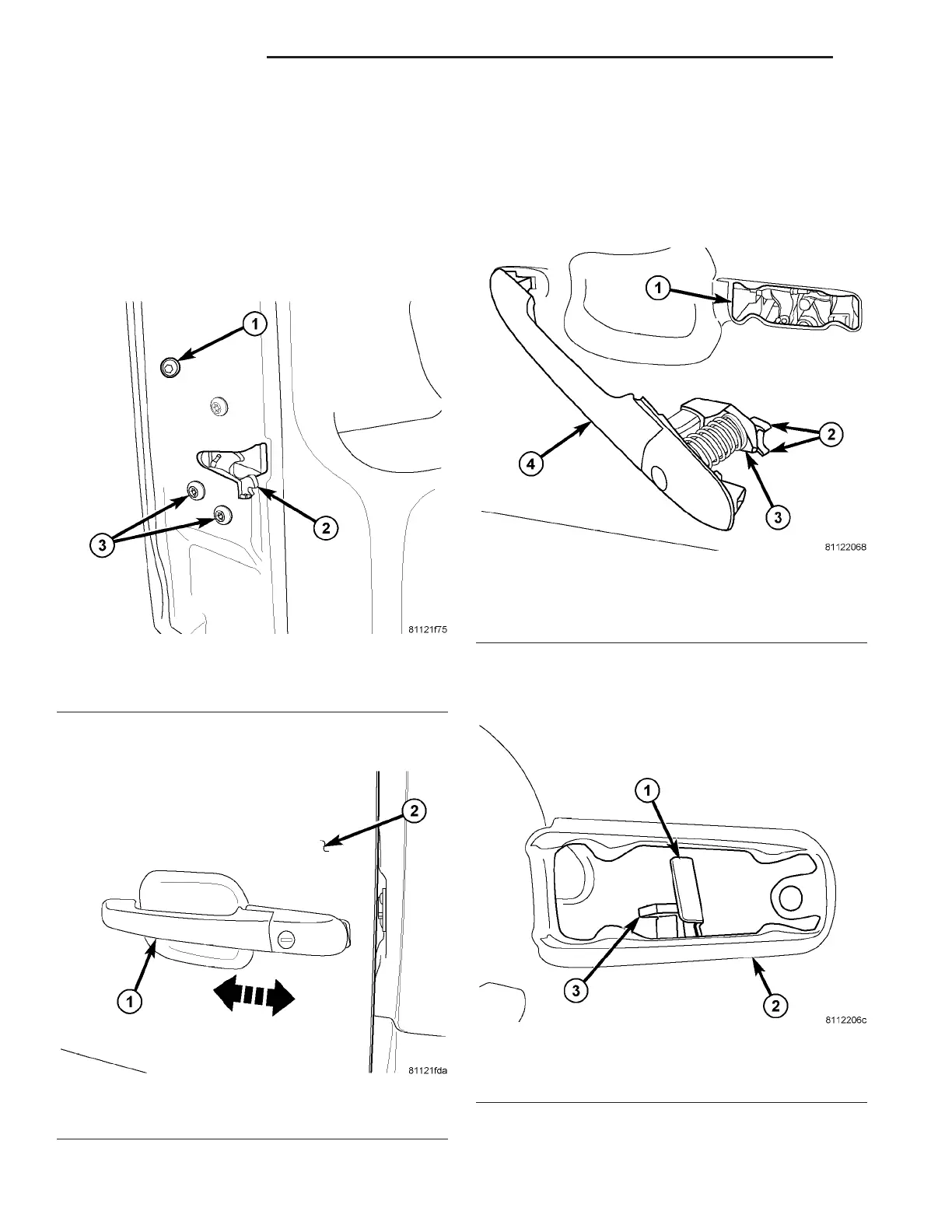

Fig. 8 LATCH/HANDLE FASTENERS
1 - EXTERIOR HANDLE BOLT
2 - LATCH
3 - LATCH BOLTS (3)
Fig. 9 EXTERIOR HANDLE
1 - EXTERIOR HANDLE
2 - DOOR
Fig. 10 EXTERIOR HANDLE INSTALLATION
1 - DOOR LATCH OPENING
2 - LOCK ACTUATION LEVER
3 - LATCH ACTUATION LEVER
4 - EXTERIOR HANDLE
Fig. 11 LATCH LEVERS
1 - LATCH LEVER
2 - LATCH OPENING
3 - LOCK LEVER
