(4) Tighten bolt to 10 N·m (89 in. lbs.).
HINGE
REMOVAL
NOTE: It is not necessary to remove the door to
replace the hinges if they are replaced one at a
time.
(1) Usin g a grease pencil or equivalent, ma rk th e
position of the h inge on the door.
(2) Remove side view mir ror. (Refer to 23 - BODY/
EXTE RIOR/SIDE VIE W MIRROR - REMOVAL)
(3) Loosen hin ge set bolts. (Fig. 13)
(4) Remove hinge bolts and r emove hinge. (Fig.
14)
INSTALLATION
(1) In st all hinge and install bolts.
(2) Tighten bolts to 25 N·m (18 ft. lbs.).
(3) Tighten h inge set bolt s.
(4) In st all side view mir ror. (Refer t o 23 - BODY/
EXTE RIOR/SIDE VIE W MIRROR - INSTALLA-
TION )
(5) Adjust door if necessa ry. (Refer to 23 - BODY/
DOOR - F RONT/DOOR - ADJ USTMENTS)

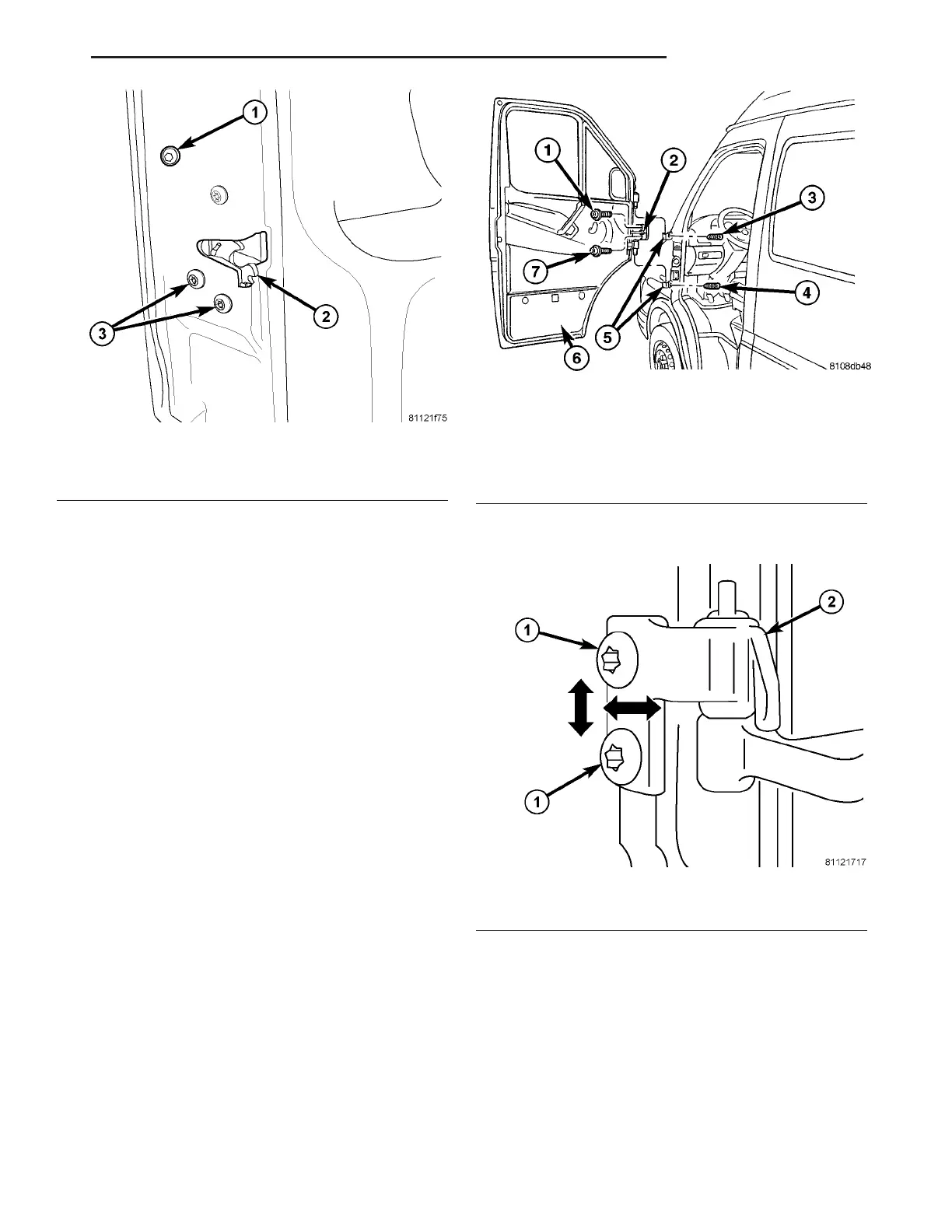

Fig. 12 EXTERIOR HANDLE
1 - EXTERIOR HANDLE BOLT
2 - LATCH
3 - LATCH BOLTS (3)
Fig. 13 FRONT DOOR
1 - UPPER CHECK BOLT
2 - DOOR CHECK
3 - UPPER HINGE SET SCREW
4 - LOWER HINGE SET SCREW
5 - HINGE RECEIVERS
6 - DOOR
7 - LOWER CHECK BOLT
Fig. 14 HINGE
1 - HINGE BOLTS
2 - DOOR HINGE
VA DOOR - FRONT 23 - 17
