(3) Remove switch bezel an d disconn ect electr ical
connect ors.
(4) Remove the scr ews. (Fig. 18)
(5) Remove mou nting rin g and remove window
crank, if equipped.
(6) Open pocket door. (Fig. 19)
(7) Usin g a trim stick C-4755 or equivalent, sepa -
rate window fr ame m olding from door. (Fig. 20)

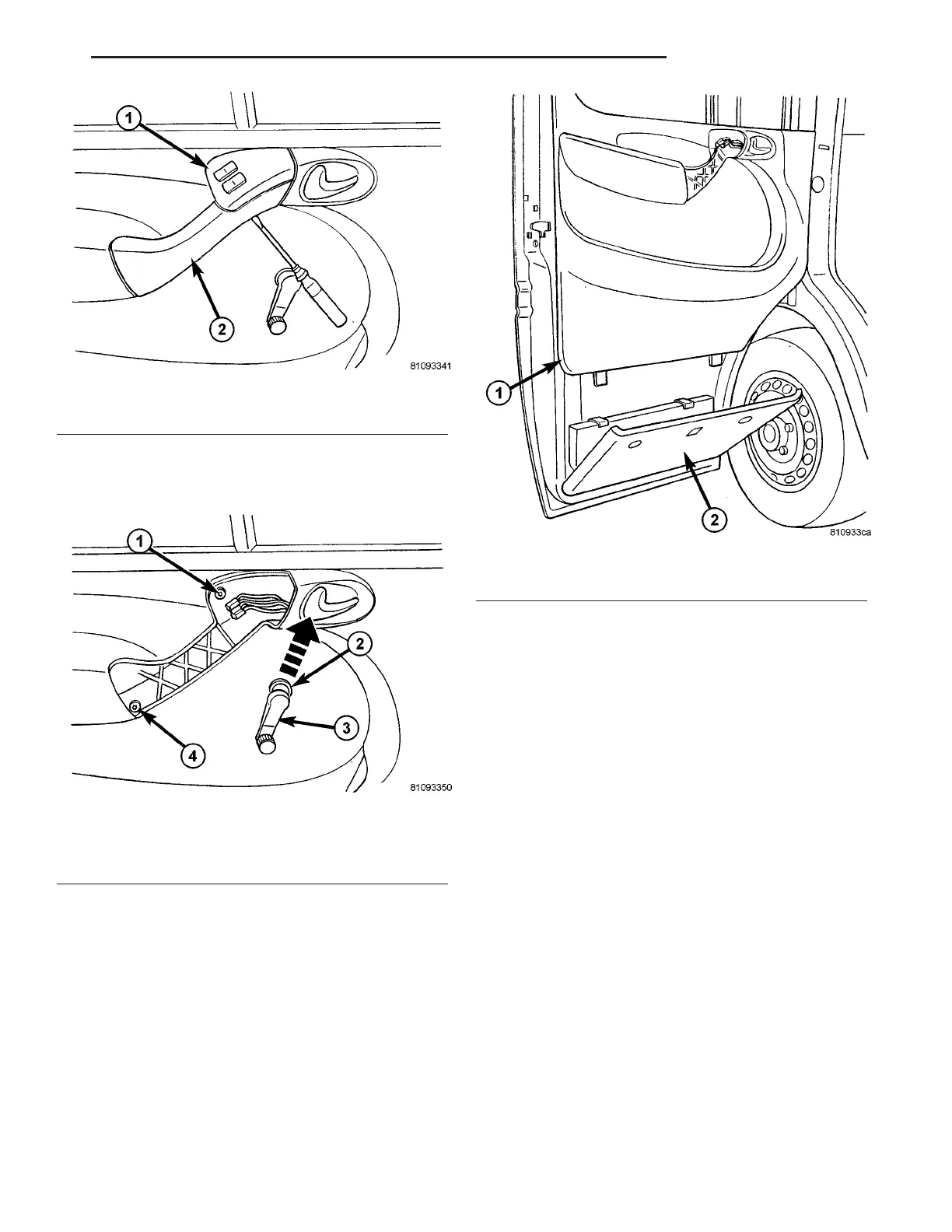

Fig. 17 TRIM PANEL HANDLE
1 - SWITCH BEZEL
2 - HANDLE COVER
Fig. 18 TRIM PANEL FASTENERS
1 - UPPER SCREW
2 - WINDOW CRANK MOUNTING RING
3 - WINDOW CRANK
4 - LOWER SCREW
Fig. 19 TRIM PANEL
1 - TRIM PANEL
2 - DOOR POCKET
VA DOOR - FRONT 23 - 19
