(15) Remove spacer from pinion sha ft (Fig. 67).
(16) Remove rea r bearing from pinion sha ft with
Puller/Press C-293-PA and Ada pt ers C-293-47 (Fig.
68).
INSTALLATION
(1) Apply Mopar Door Ea se or equivalent lubr icant
to out side surface of bea rin g cups.
(2) In st all pinion depth shim in rear pinion bear-
ing cup bore.
(3) In st all rea r pinion bearing cup with Insta ller
C-4310 a nd Driver Handle C-4171.
(4) In st all fron t pinion bearing cup with In st aller
8617 a nd Han dle C-4171.
(5) In st all rear bearing on pinion with Installer
MB-998805 and a press (Fig. 69).

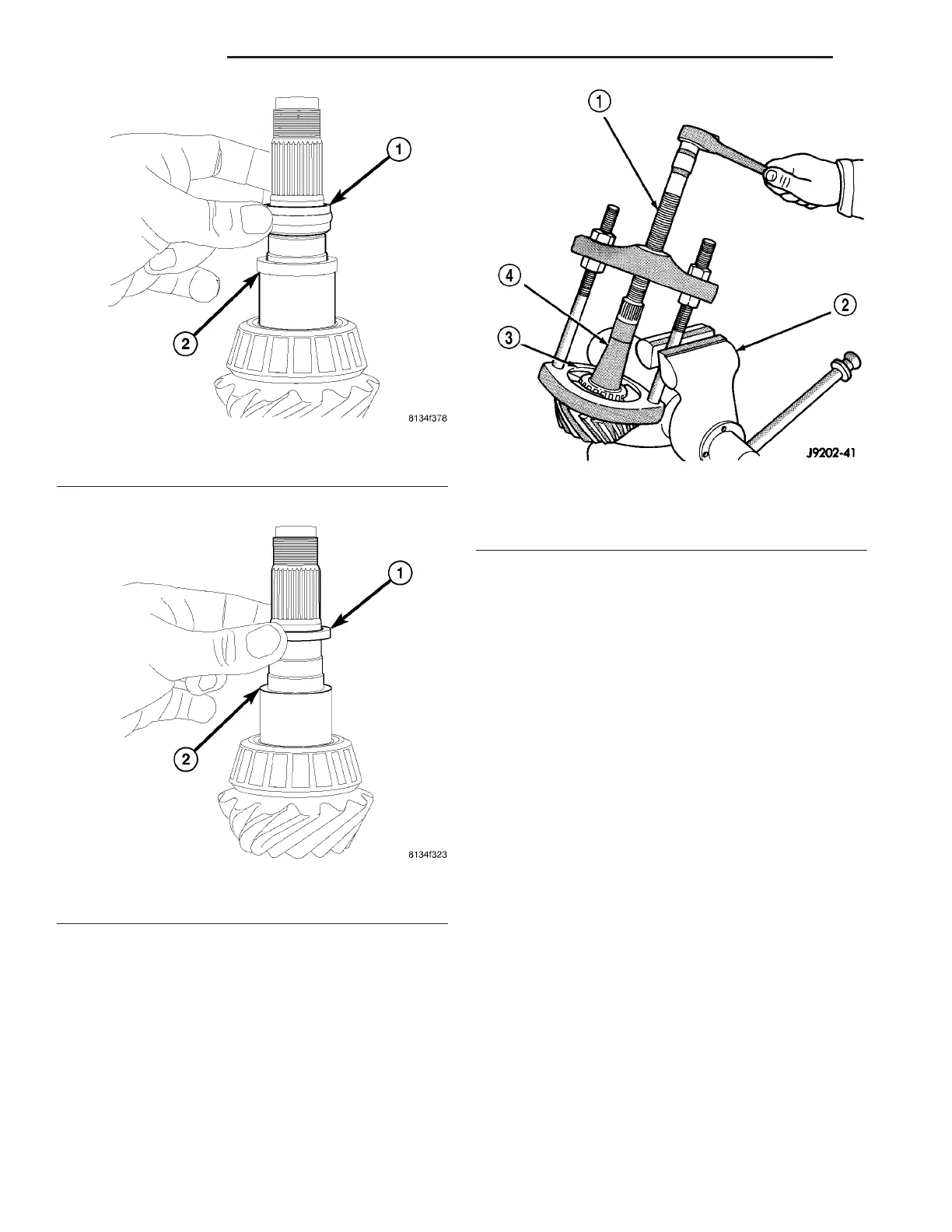

Fig. 66 COLLAPSIBLE SPACER
1 - COLLAPSIBLE SPACER
2 - SPACER
Fig. 67 SPACER
1 - SPACER
2 - PINION SHAFT
Fig. 68 Rear Bearing Removal
1 - PULLER
2 - VISE
3 - ADAPTERS
4 - DRIVE PINION GEAR SHAFT
3-42 REARAXLE VA
