REMOVAL - REAR (15” WHEELS) (SRW)
(1) Unscr ew the ca p from t he bra ke flu id reservoir.
(2) Raise and support the vehicle.
(3) Remove th e rea r wheels (Refer to 22 - TIRES/
WHEELS/WHEELS - INSTALLATION).
(4) Remove th e wea r indicator cable an d the wear
indicator (Fig. 7).
NOTE: Seal off the line ends and connection
threads in the brake calipers with plugs. Also check
brake hoses for signs of cracks.
(5) Remove the brake ca liper guide pin (Fig. 7).
(6) Fold t he top sect ion of the bra ke ca liper up
(Fig. 7).
(7) Remove the pa ds (F ig. 7).
REMOVAL - REAR (DRW)
(1) Unscr ew the ca p from t he bra ke flu id reservoir.
(2) Raise and support the vehicle.
(3) Remove th e rea r wheels (Refer to 22 - TIRES/
WHEELS/WHEELS - INSTALLATION).
(4) Remove th e wea r indicator cable an d the wear
indicator (Fig. 8).
NOTE: Seal off the line ends and connection
threads in the brake calipers with plugs. Also check
brake hoses for signs of cracks.
(5) Remove the brake ca liper guide pins (Fig. 8).
(6) Remove the brake ca liper from the ca liper
adapter (Fig. 8).
(7) Remove the reta ining spr ing (Fig. 8).
(8) Remove the pa ds (F ig. 8).

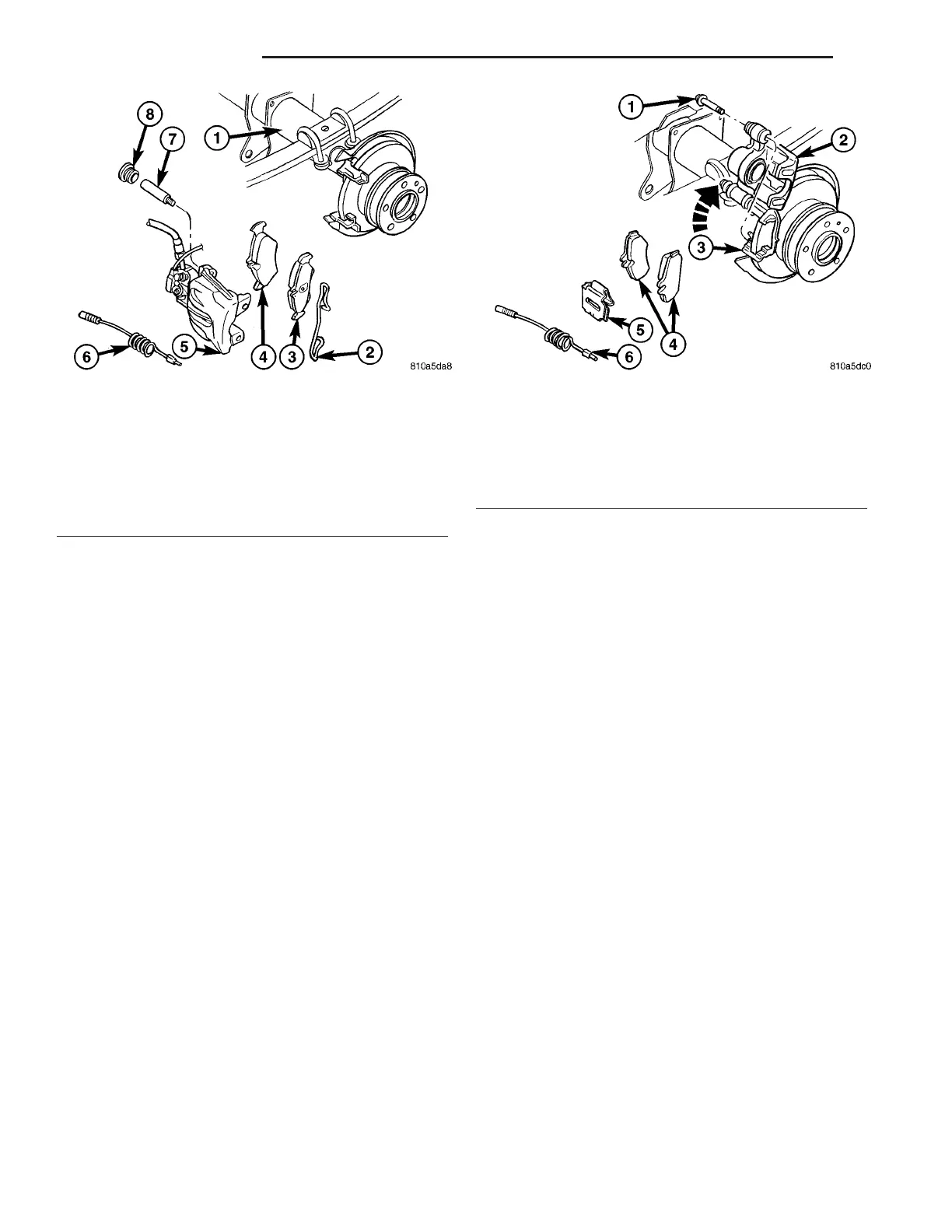

Fig. 6 REAR DISC BRAKE PADS - 16 # WHEELS
(SRW)
1 - AXLE
2 - RETAINING SPRING
3 - OUTBOARD PADS
4 - INBOARD PAD
5 - DISC BRAKE CALIPER
6 - WEAR INDICATOR
7 - GUIDE PIN
8 - DUST CAP
Fig. 7 REAR DISC BRAKE PADS - 15” WHEELS
(SRW)
1 - CALIPER GUIDE PIN
2 - DISC BRAKE CALIPER
3 - CALIPER ADAPTER
4 - DISC BRAKE PADS
5 - RETAINING SPRING
6 - WEAR INDICATOR
