The Z-Drive Assembly
7-18 DSX™ System Service Manual
3 Remove the two M3 x 12 Posi screws shown in Figure 7-15.

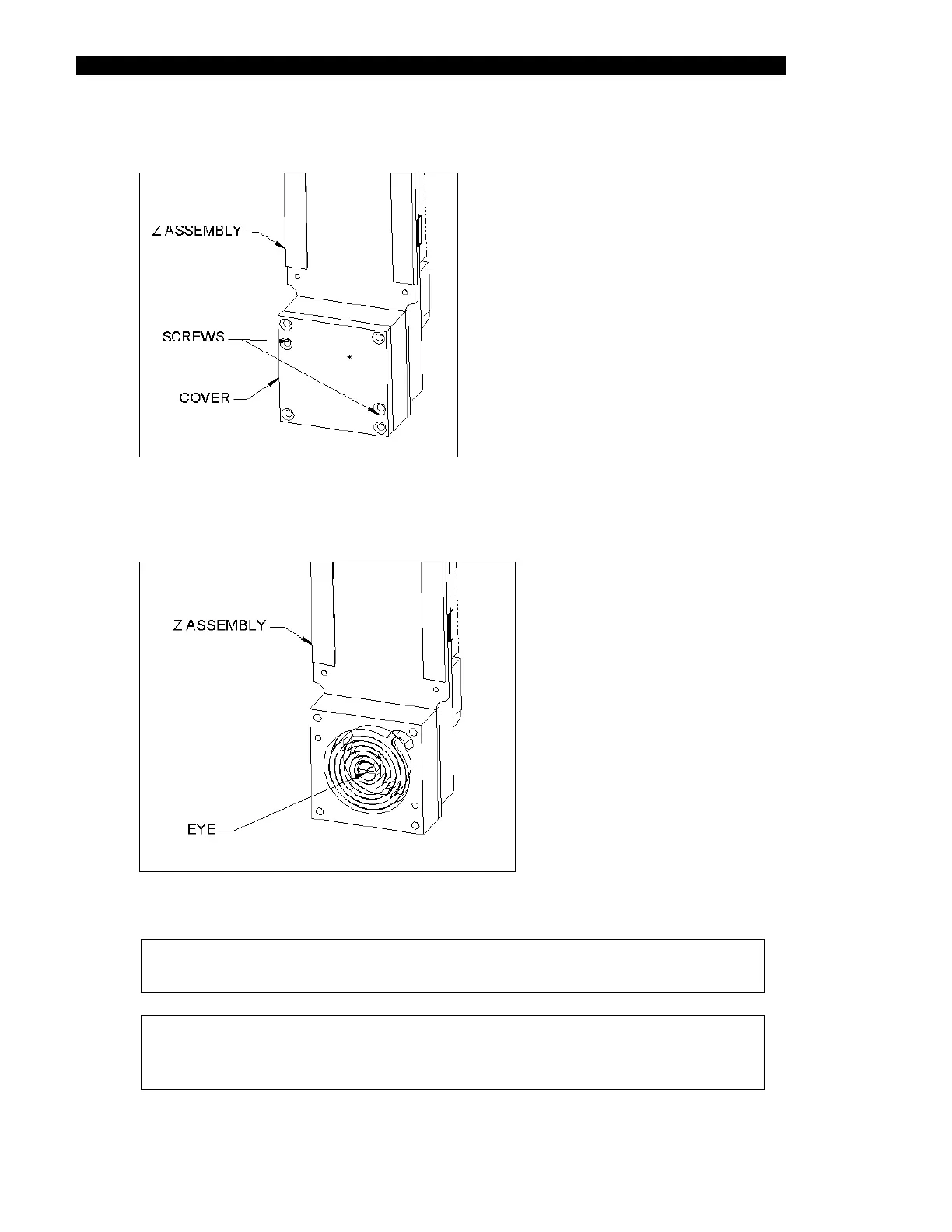

Figure 7-15 Cover Screws
4 Remove the spring Retainer Assembly from the Drive (Figure 7-16).
Figure 7-16 Spring Assembly
Caution: When removing the spring from the housing, be aware that the
spring will expand rapidly and may cause injury.
Note: When reinstalling the spring assembly, make sure that the eye
lines up with the groove in the shaft and take care to ensure that the
spring remains inside the housing.
