Removing External Components
DSX™ System Service Manual 9-7
2 Remove the springs and pins from the door by pushing the pins out of the door
with a punch (Figure 9-5).

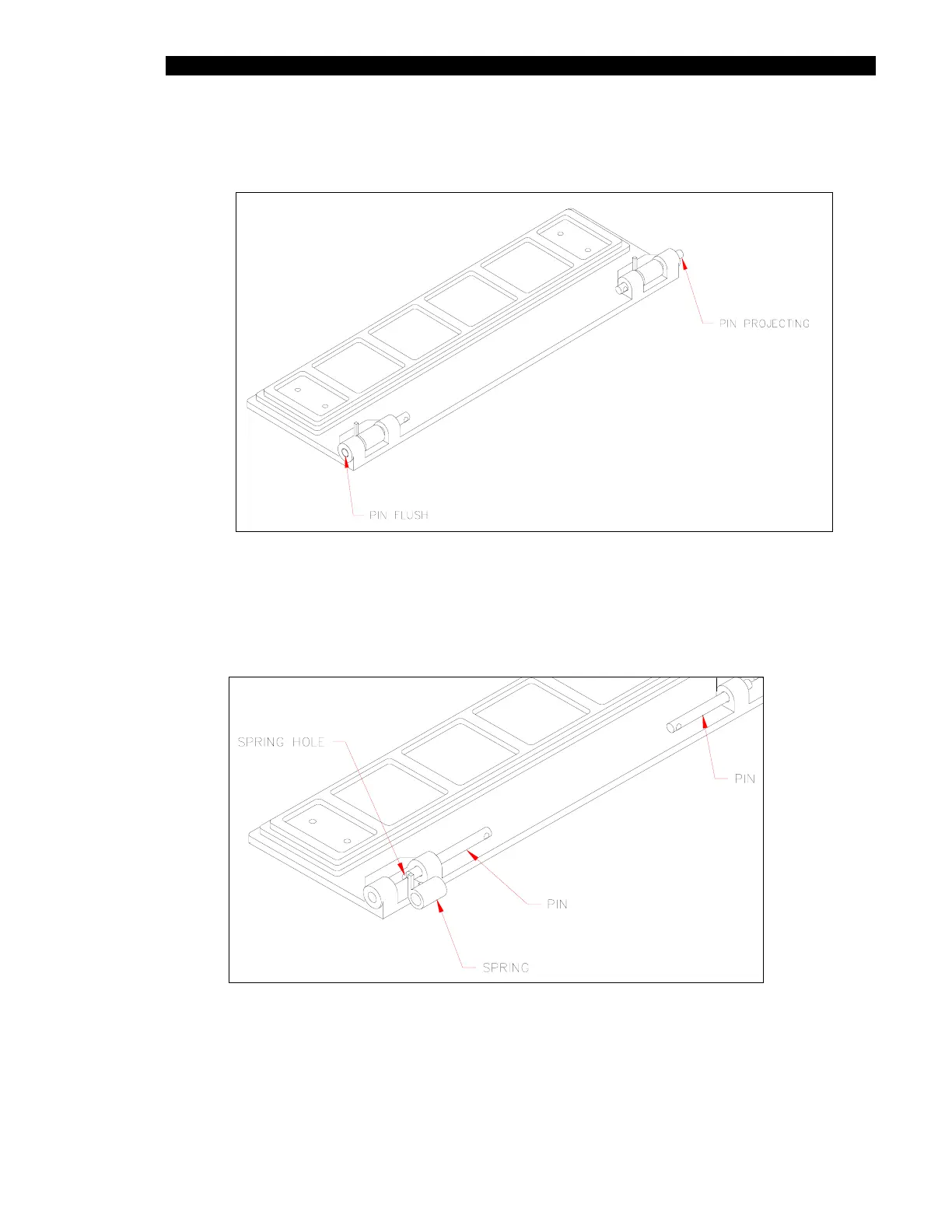

Figure 9-5 Removing Door Pins
3 To reassemble the door, partially insert 2 M3 x 32mm spring pins into the door.
Then insert the 2 torsion springs into the hinge recess with its L-shaped leg in the
spring hole and engage the pins to hold the springs (Figure 9-6).
Figure 9-6 Reinstalling the Door
