The Electronics Pod Assembly (EPOD)
17-12 DSX™ System Service Manual
17.3.3.5. Removing and Replacing the Communications Board
The Communications Board receives information from the host computer and transmits it
to the various devices on the DSX (e.g. the incubator). In addition, the communication
board receives information from each of the various devices and transmits it to the host
computer.
To Replace the Communications Board:
1 Remove the XY printed circuit board as described above.
2 Remove the four standoffs from the communications board as shown in
Figure 17-10.
3 Remove the four M3 Nyloc Nuts and the four M3 plastic washers.
COMM ’ S PCB
STANDOFF

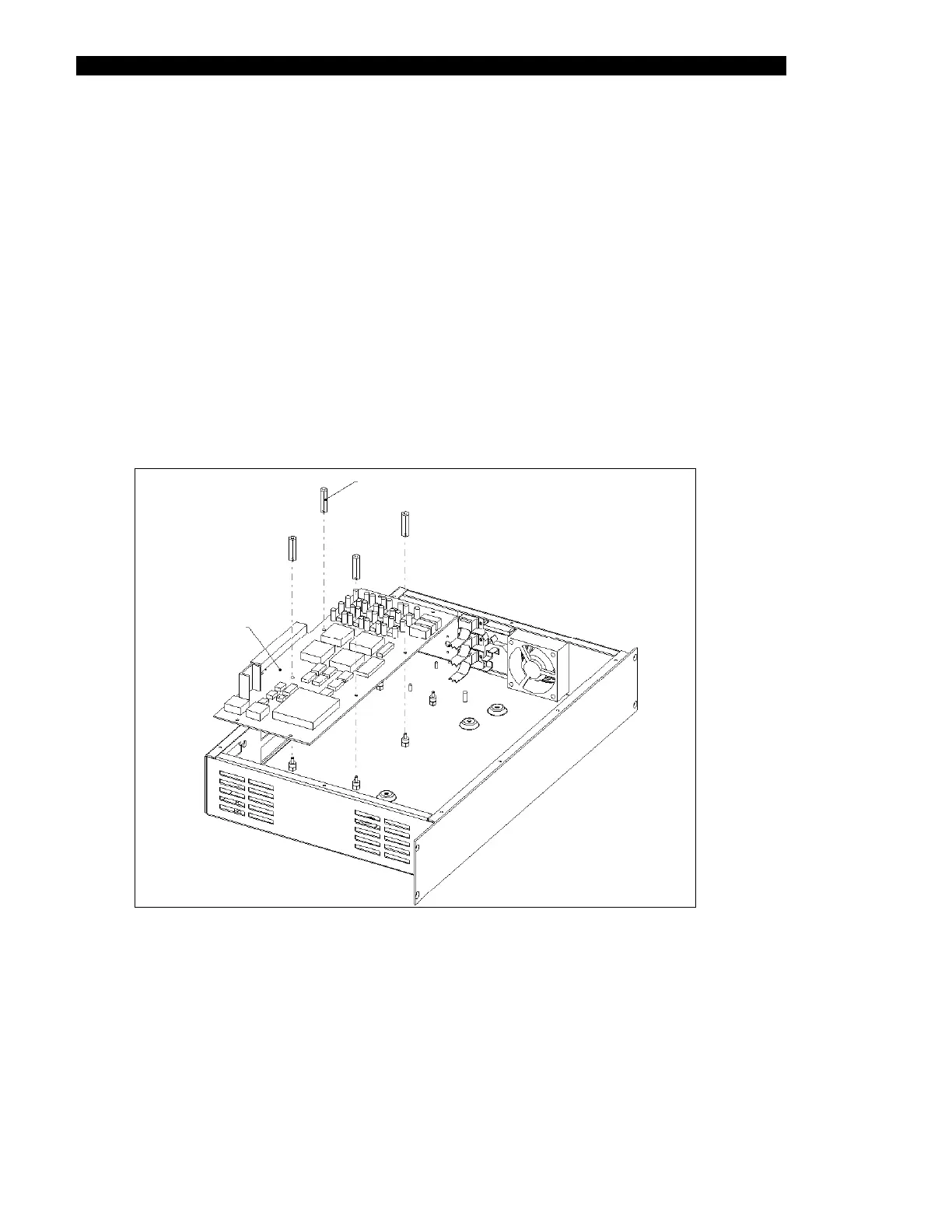

Figure 17-10 Removing the Communications Printed Circuit Board
