The Electronics Pod Assembly (EPOD)
DSX™ System Service Manual 17-13
4 Disconnect the three communication cables that connect the communications
board to the right side panel (Figure 17-11).

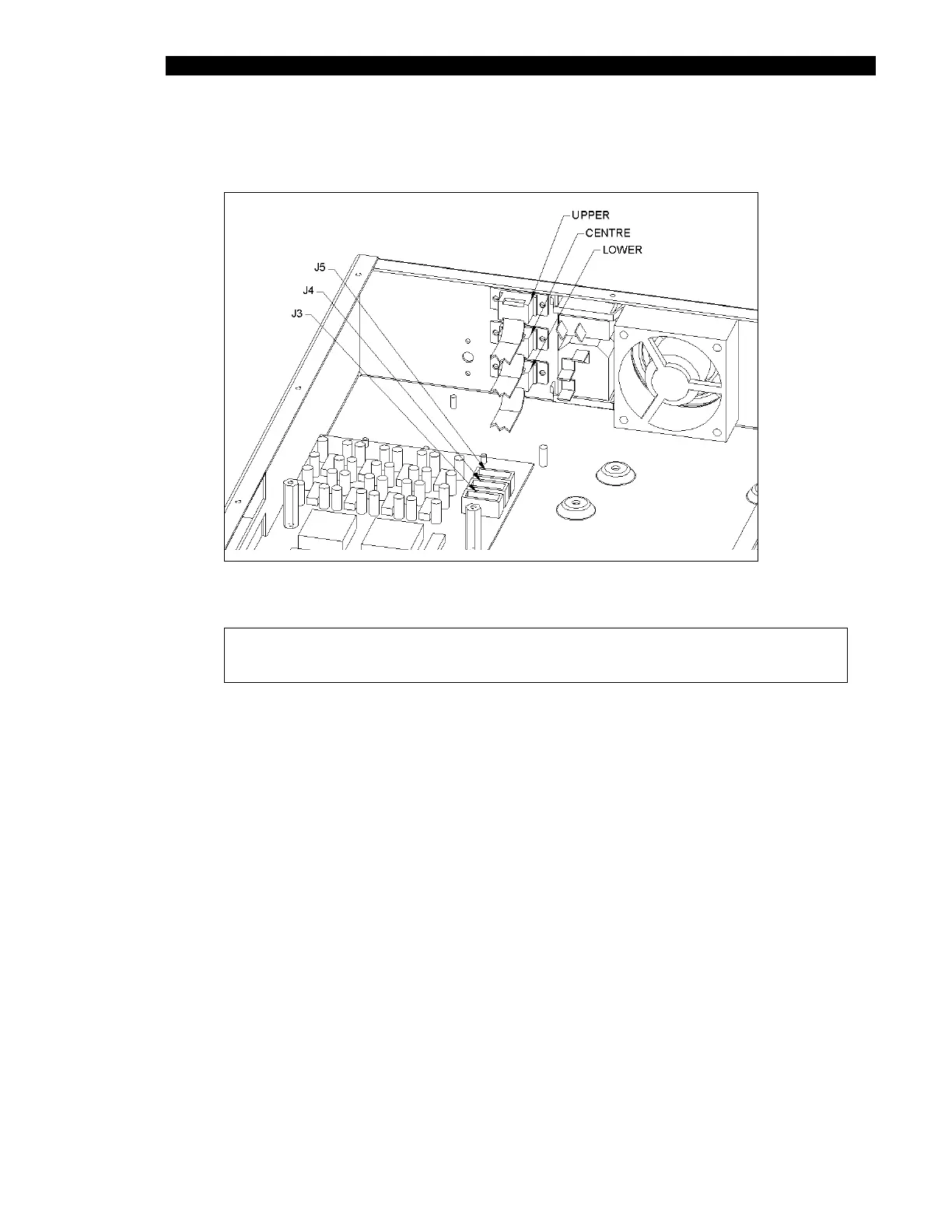

Figure 17-11 Connectors between Communication Board and Side Panel
Note: When installing a new board, align the printed circuit boards as
described in Figure 17-9.
