9-20 Section 9-11 - Probes
9L-D Abdomen, Small
Parts, Vascular,
Pediatric
B, CHI, CF, PDI, M, PW, B-Flow, B-Flow
Color, Elastography, Virtual Convex,
CrossXBeam, LOGIQView, ATO/ASO,
SRI-HD, Advanced 3D, Biopsy, B Steer+
5212849 Linear
11
11L-D Small Parts,
Vascular,
Pediatric,
Neonatal,
Musculoskeletal
B, CHI, CF, PDI, M, PW, B-Flow, B-Flow
Color, Elastography, Virtual
Convex,CrossXBeam, LOGIQView, ATO/
ASO, SRI-HD, Advanced 3D, Biopsy, B
Steer+
5410801 Linear
1 1
ML6-15 Small Parts,
Vascular, Pediatric,
Neonatal,
Musculoskeletal
B, CHI, CF, PDI, M, PW, B-Flow, B-Flow
Color, Elastography, Virtual
Convex,CrossXBeam, LOGIQView, ATO/
ASO, SRI-HD, Advanced 3D, Biopsy, B
Steer+
5394754 Linear
1 1
L8-18i-D Small Parts,
Vascular,
Neonatal,
Pediatrics,
Intraoperative
B, CHI, CF, PDI, M, PW, B-Flow, B-Flow
Color, Virtual Convex, CrossXBeam,
LOGIQView, ATO/ASO, SRI-HD,
Advanced 3D, B Steer+
5410799 Linear
1 1
L3-12-D Abdomen,
Vascular
(No transcranial),
Small Parts,
Pediatric, Neonatal
B, CHI, CF, PDI, M, PW, B-Flow, B-Flow
Color, Elastography, Virtual Convex,
CrossXBeam, LOGIQView, ATO/ASO,
SRI-HD, Advanced3D, Biopsy, B Steer+
5482856 Linear
11
3Sp-D Cardiac, Abdomen,
Transcranial
B, CHI, CF, M, MCF, PW, CW, TVI, TVD,
Virtual Convex, LOGIQView, ATO/ASO,
Stress Echo, SRI-HD, Advanced 3D,
Biopsy
GE-3PAX4 Sector
11
S1-4-D Cardiac,
Transcranial
B, CHI, CF, PDI, M, MCF, PW, CW, TVI,
TVD, Virtual Convex, LOGIQView, ATO/
ASO, Stress Echo, SRI-HD,
Advanced3D, Biopsy
5498609 Sector
11
6S-D Cardiac,
Pediatrics,
Neonatal
B, CHI, CF, PDI, M, MCF, PW, CW, TVI,
TVD, Virtual Convex, LOGIQView, ATO/
ASO, SRI-HD, Advanced3D
5499318 Sector
1 1

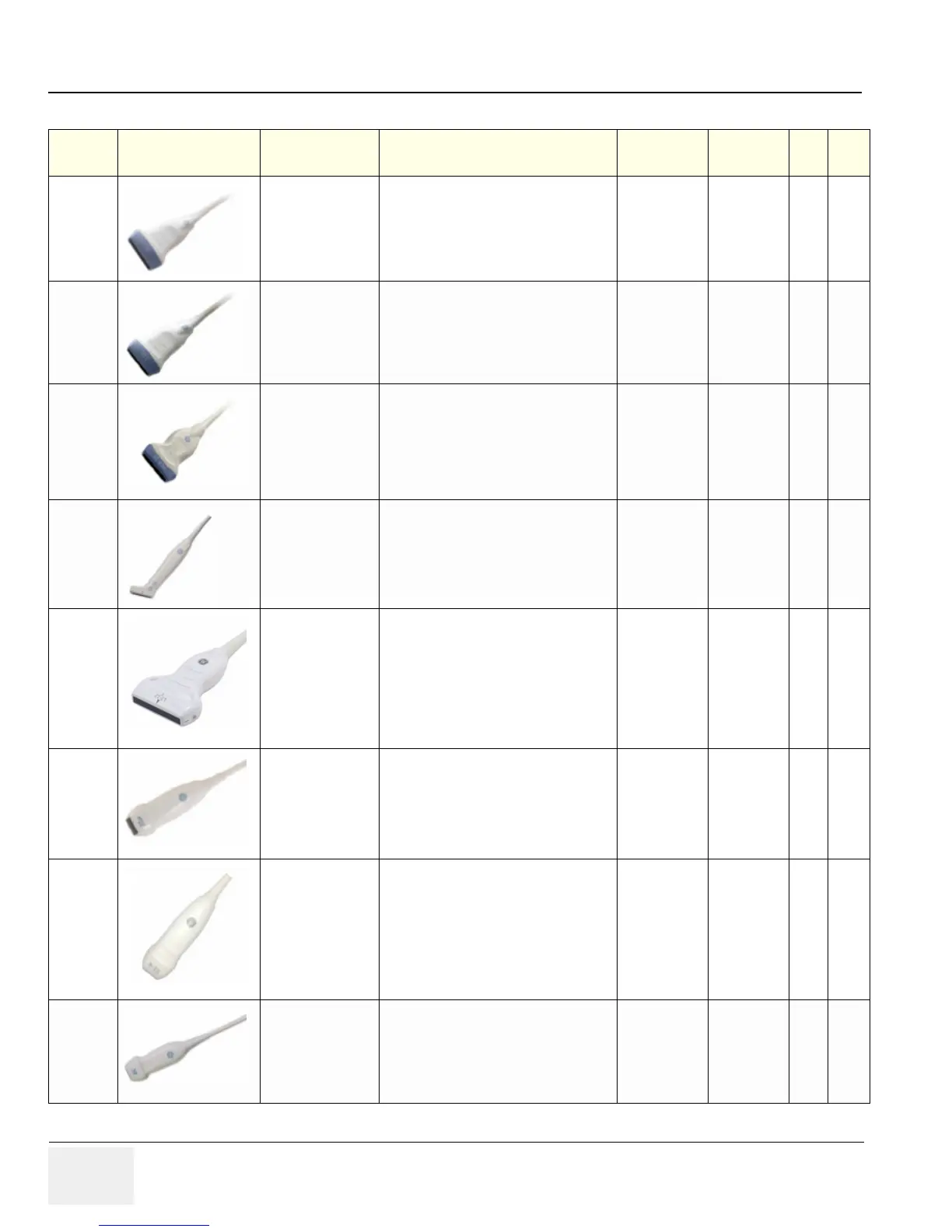

Table 9-10 Probe Description
Part
Name Illustration Application Feature
Part
Number
Probe
Type Qty FRU
