KIP 700m - Page 188

K117sm5e5
5-66

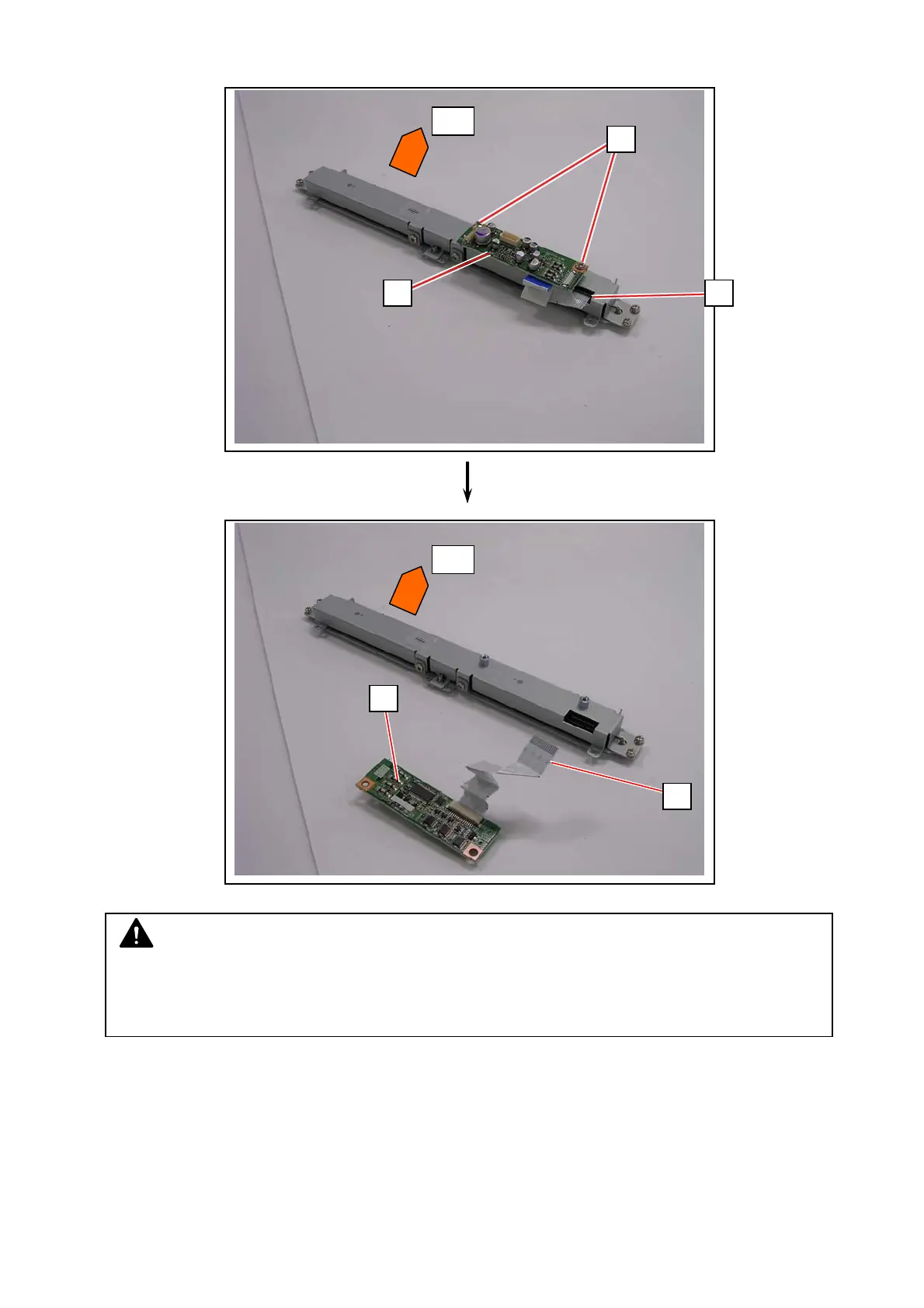

21. Remove 2 screws (30) to release CIS Board (31).
Carefully remove the flat cable (32) from CIS.
30
front
31 32
32
31
NOTE
When reassembling, gently insert Flat Cable (32) all the way in the terminal on the CIS.
Inserting incorrectly would lead abnormal scan image.
FRAGILE. Handle Flat Cable with great care.
front
