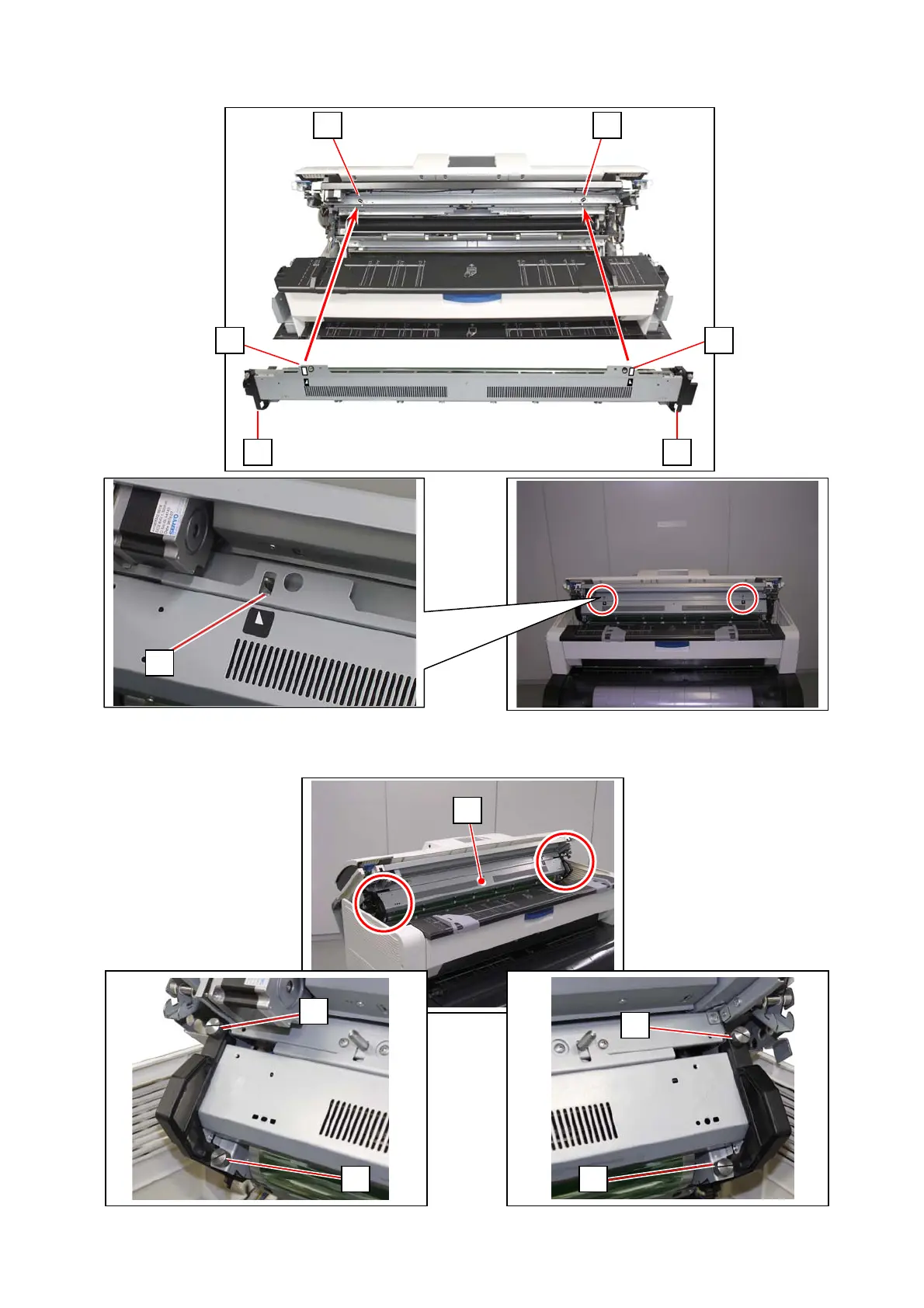

19. Hold the handgrip (6) on both sides. Slightly tilt the Process Unit downward. Put the square
holes (23) onto the tapered edges of the positioning pins (24). Before inserting completely,
pivot the unit upward to face each other. Finally push the unit into the machine
20. Completely push the Process Unit in the machine to be reseated in position.
Then secure the thumb screws (4) to fix the Process Unit to the machine.
