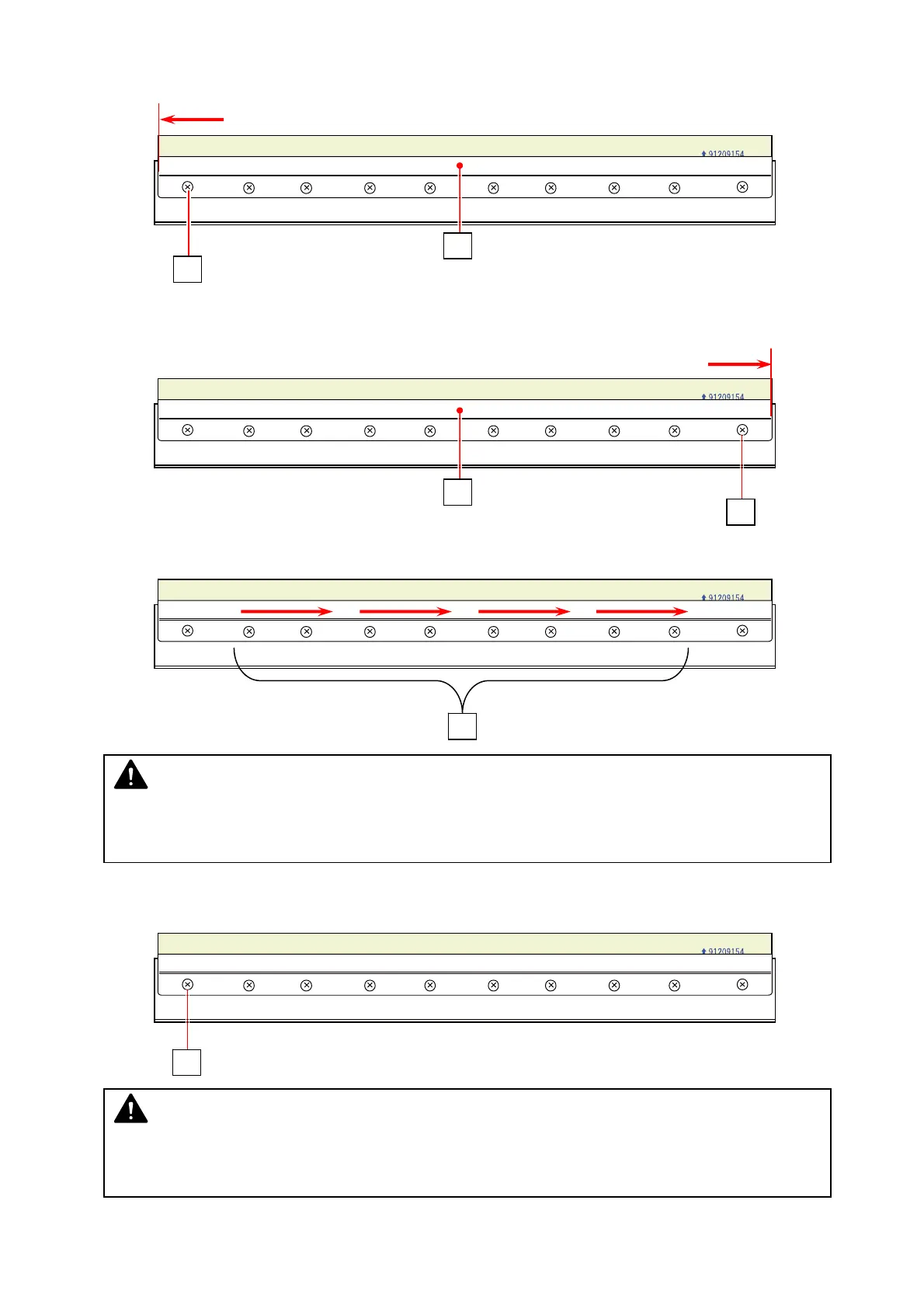

16. Align the Scraper’s edge to the Blade Holder’s (26) left end, and then loosely fix the Scraper
with 1 screw at the left end (A).
17. Align the other edge to the Blade Holder’s right end (26), and then loosely fix the Scraper with
1 screw at the right end (B).
18. Gently tighten the rest screws (C) from the left to the right.
19. Gently tighten the screw (A) at the left end.
26
A
26
B
D
A
NOTE
Be sure to check for wave on Scraper’s edge. If there is, go back to step 14 to reseat the
Scraper again.
NOTE
Be sure to check for wave on Scraper’s edge. If there is, go back to step 14 to reseat the
Scraper again.
