1 Installation

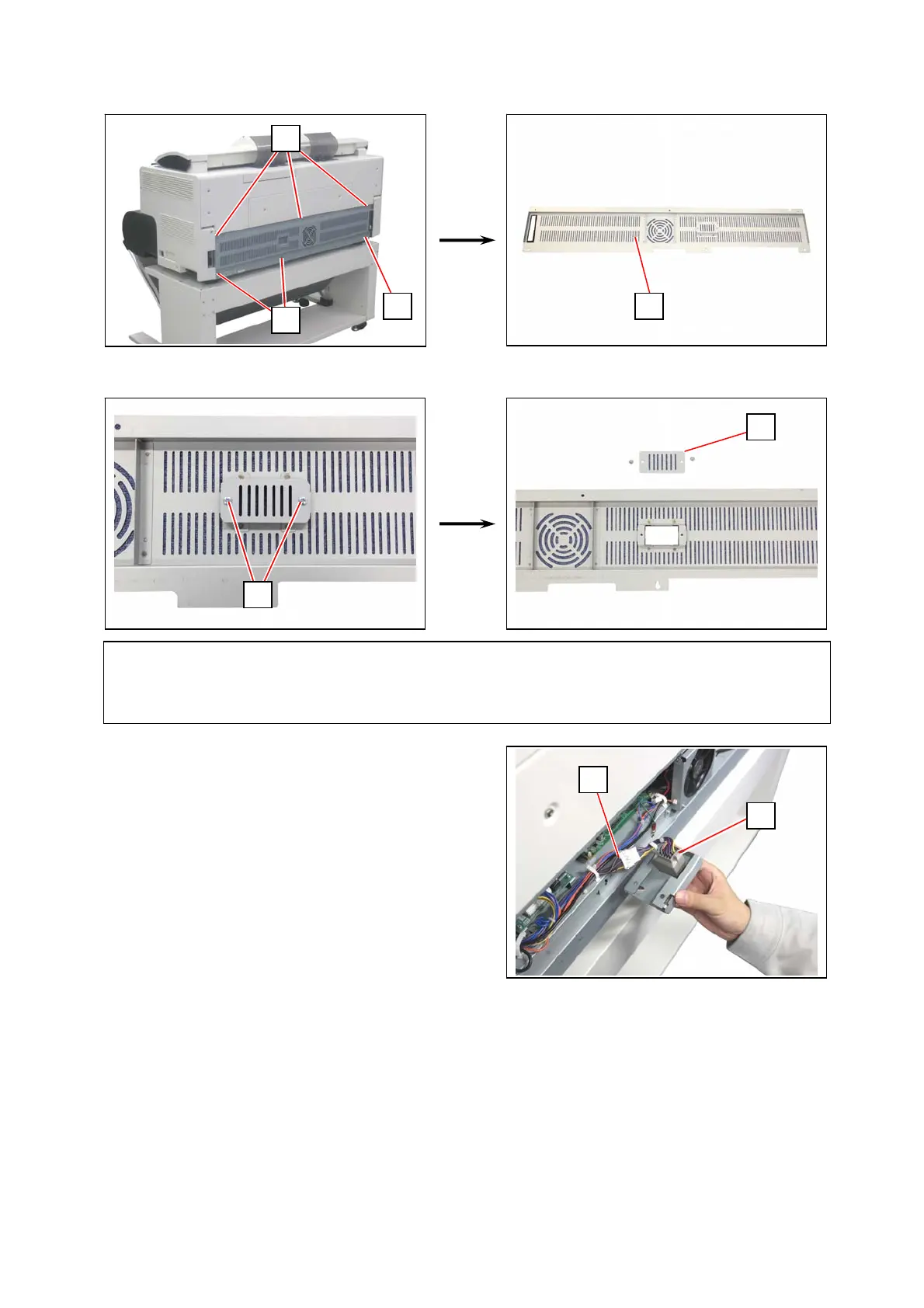

1. Remove 4 tooth washer screws (1), loosen 2 tooth washer screws (2) to remove the Rear Cover (3).
2. Remove 2 bind screws (4) to remove the plate (5).
3. Connect the harness of Connector Bracket (6) to
the machine side (7).
1
2
1
3
4
5
6
7
Reference
The screws and the plate are not used with the Paper Tray installed.
