Feed unit drive gear 27 tooth removal
1. Remove the media feed unit assembly. See “Media feed unit assembly 1 removal” on page 4-20, or
“Media feed unit assembly 2 removal” on page 4-23.

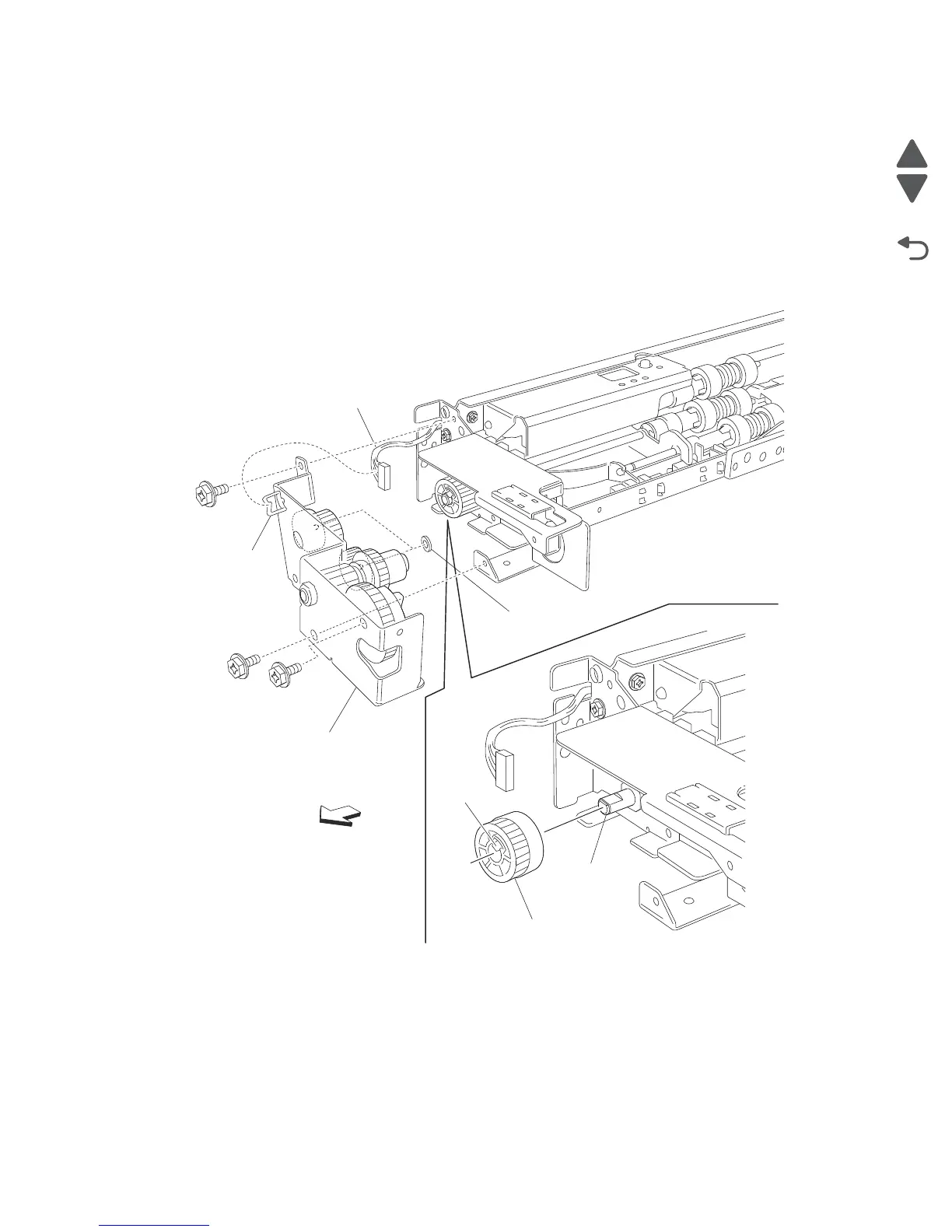

2. Remove the harness from the bracket (A).
3. Remove the three screws securing the bracket (A) to the media feed unit assembly.
4. Remove the bracket (A).
Note: The gears may become detached from the bracket (A).
5. Remove the hook securing the feed unit drive gear 27 tooth (B) to the shaft (C).
6. Remove the feed unit drive gear 27 tooth (B).
Note: Before reinstalling, ensure all gears and washers are securely attached to the bracket (A).
Harness
Clamp
A
Rear
Hook
B
C
Washer
