Lexmark X862de User Manual

4-160 MFP Service Manual
7500-432, -632, and -832
Go Back
Previous
Next
ADF angle actuator assembly removal
1. Remove the ADF unit assembly. See “ADF unit assembly removal” on page 4-167.
2. Remove the scanner left cover. See “Scanner left cover removal” on page 4-133.
3. Remove the scanner right cover. See “Scanner right cover removal” on page 4-134.
4. Remove the scanner top rear cover. See “Scanner top rear cover removal” on page 4-132.
5. Remove the large platen glass. See “Large platen glass removal” on page 4-150.

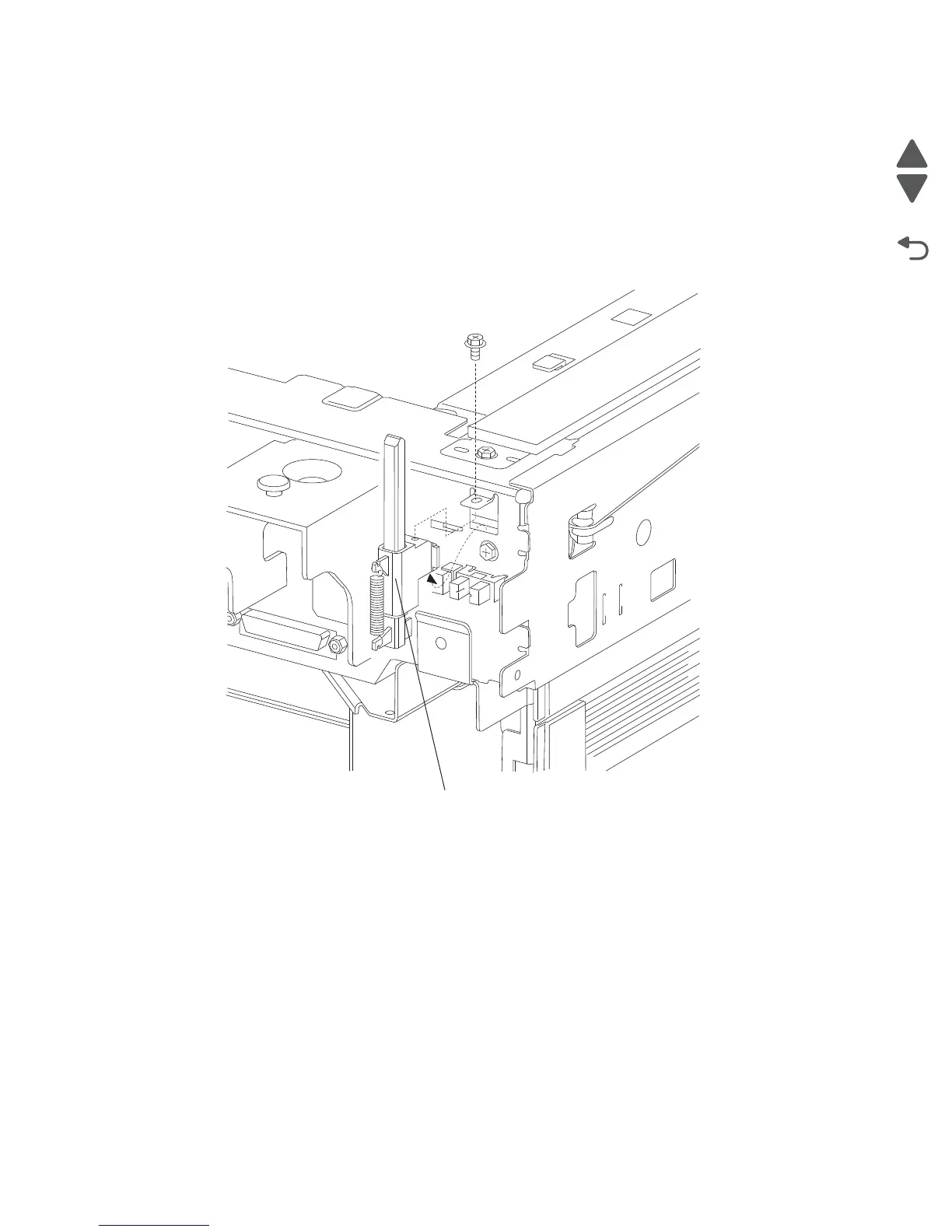

6. Remove the one screw securing the ADF angle actuator assembly (A) to the scanner unit assembly.
7. Remove the ADF angle actuator assembly (A).
A
