4-98 MFP Service Manual
7500-432, -632, and -832
Fuser cooling fan removal
1. Remove the rear RIP card cover. See “Rear RIP card cover removal” on page 4-13.
2. Remove the rear motor cover. See “Rear motor cover removal” on page 4-11.

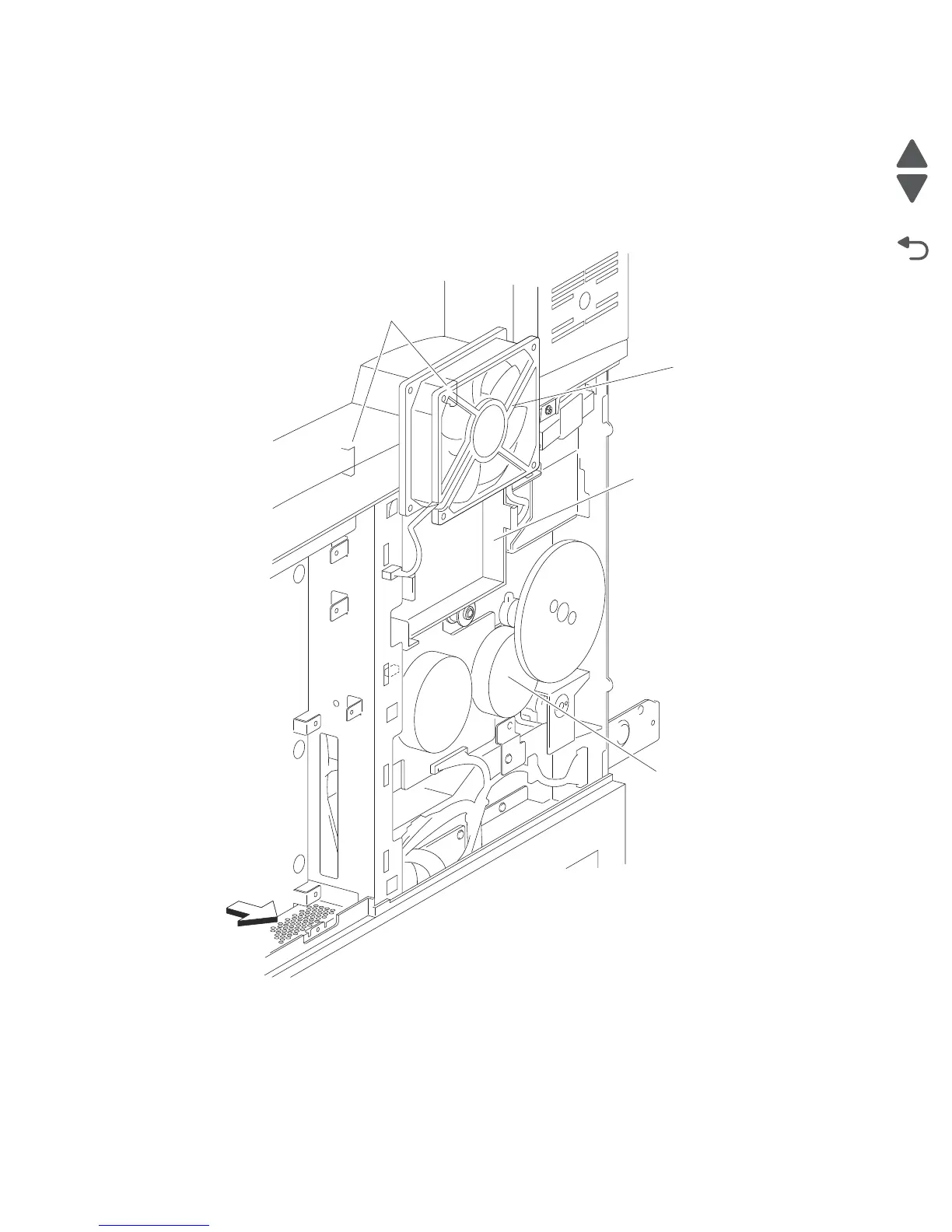

3. Disconnect the connector from the fuser cooling fan (A) from the dual drive motor assembly (B).
4. Release the two hooks securing the fuser cooling fan (A) to the fan duct (C).
5. Remove the fuser cooling fan (A).
Note: Before reinstalling, the fuser cooling fan (A) must be installed with the center label facing outward.
